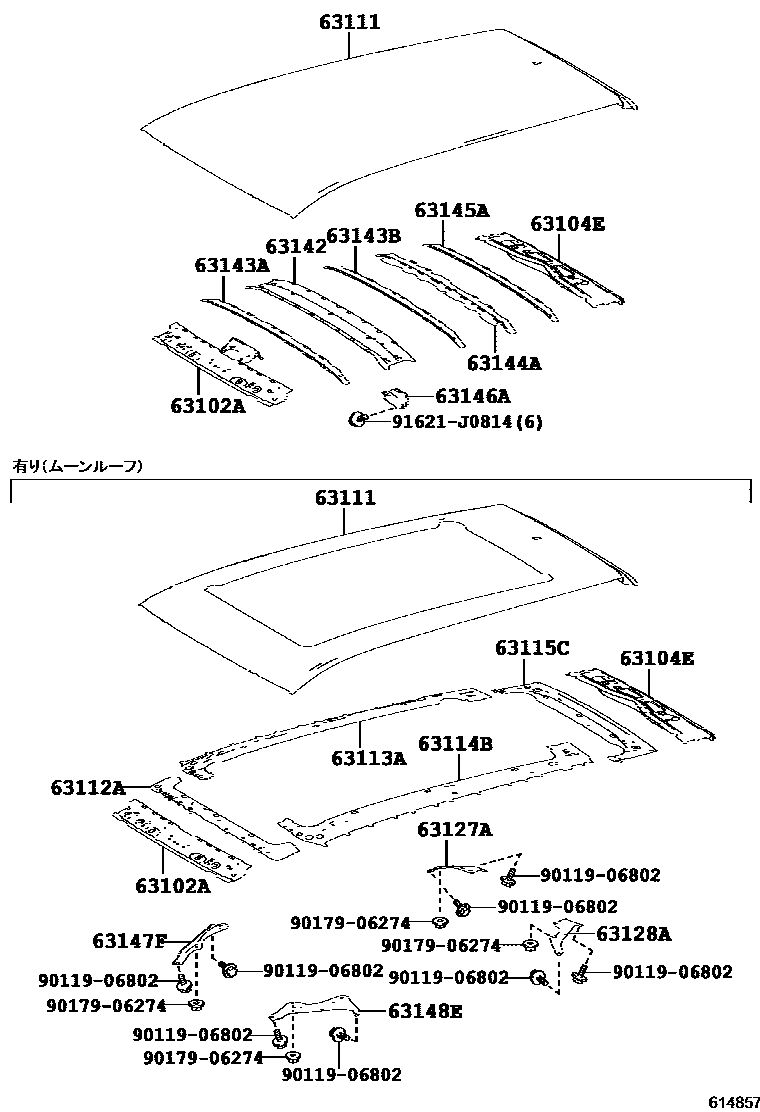

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1������������(���)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-48210supersedes 63102-48200iAVU65,ZSU6#201312-201705

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-48030iASU6#,AVU65,ZSU6#201705

63111PANEL, ROOF

main63111-48220supersedes 63111-48190iAVU65,ZSU6#201312-201705

63112APANEL, ROOF, NO.2

main63112-48020iASU6#,AVU65,ZSU6#201705

63113APANEL, ROOF, NO.3

main63113-48020iAVU65,ZSU6#201312-201705

63114BPANEL, ROOF, NO.4

main63114-48010iAVU65,ZSU6#201312-201705

63115CPANEL, ROOF, NO.4

main63115-48010iAVU65,ZSU6#201312-201705

63127AEXTENSION, ROOF PANEL, REAR RH

main63127-48040iAVU65,ZSU6#201312-201705

63128AEXTENSION, ROOF PANEL, REAR LH

main63128-48020iAVU65,ZSU6#201312-201705

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-48070iAVU65,ZSU6#201312-201705

63143AREINFORCEMENT, ROOF PANEL

main63143-48090iAVU65,ZSU6#201312-201705

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63123-48050iAVU65,ZSU6#201312-201705

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-48080iAVU65,ZSU6#201312-201705

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63149-48040iAVU65,ZSU6#201312-201705

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-48010×2iAVU65,ZSU6#201312-201705

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-48010iAVU65,ZSU6#201312-201705

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63148-48040iASU6#,AVU65,ZSU6#201705

9011906802

main90119-06802

9017906274

main90179-06274

91621J0814

main91621-J0814

20 parts on this diagram · 2 diagrams in section
