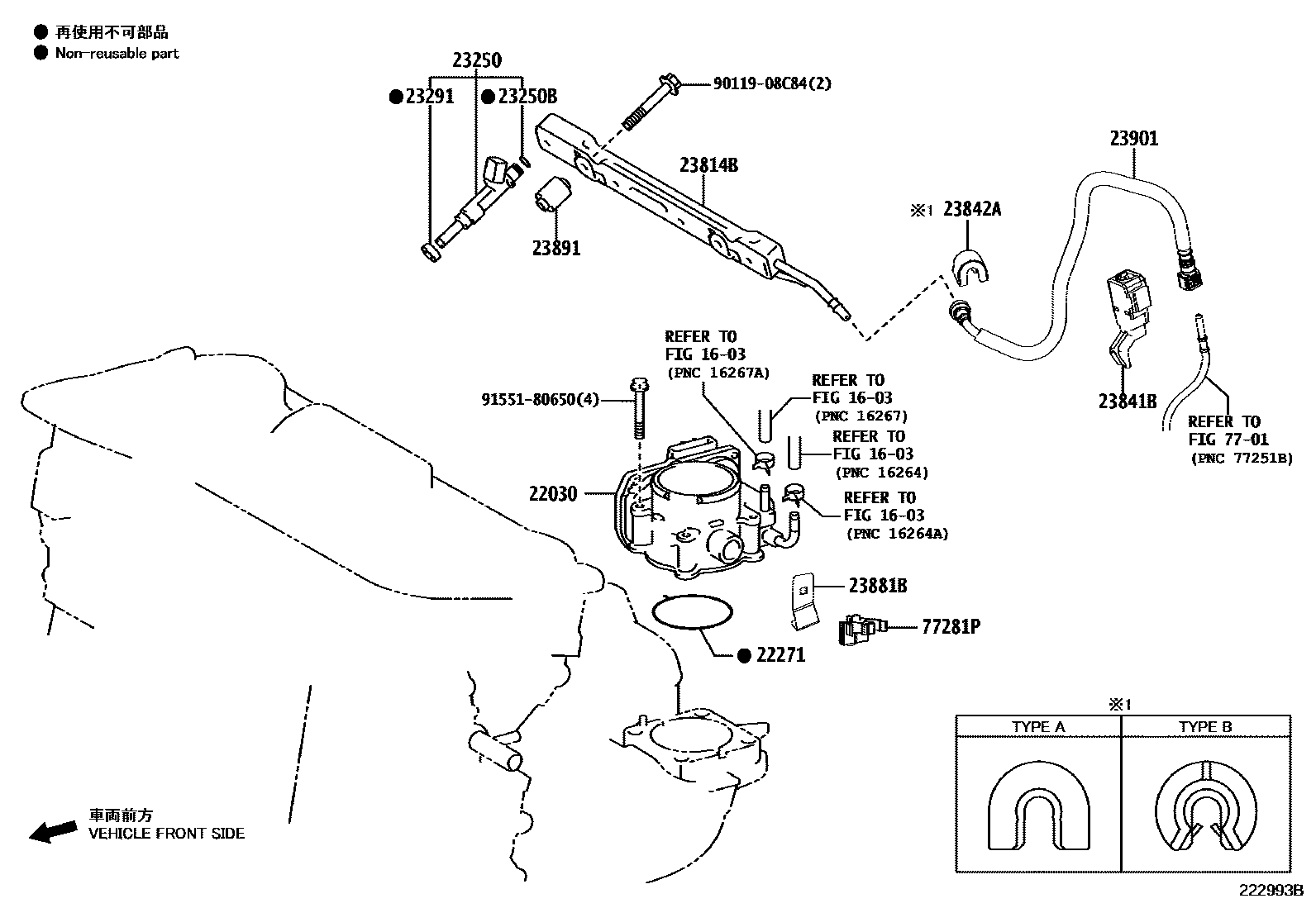

FUEL INJECTION SYSTEM

0001 1 0002 1�����NO.=W****** 0003 1�����NO.=Z****** 0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-36020i2ARFXE..AVU65201705

main22030-36040i8ARFTS..ASU6#201705

22271GASKET, THROTTLE BODY

main22271-36020i2ARFXE..AVU65201401-201705

main22271-36040×2i8ARFTS..ASU6#201705

main22271-75031i3ZRFAE..ZSU6#201705

23250INJECTOR ASSY, FUEL

main23209-39175×4i2ARFXE..AVU65201401-201705

main23209-39235×4i3ZRFAE..ZSU6#201312-201705

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ARFXE,8ARFTS..ASU6#,AVU65201705-201908

main90301-C0072×4i2ARFXE,8ARFTS..ASU6#,AVU65201908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×4i3ZRFAE..ZSU6#201312-201705

main23291-28020×4i3ZRFAE..ZSU6#201312-201705

23814BPIPE, FUEL DELIVERY

main23800-36030i8ARFTS..ASU6#201705

main23814-36050i2ARFXE..AVU65201401-201705

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37080i2ARFXE..AVU65201401-201601

main23841-37081i2ARFXE..AVU65201602-201705

main23841-37100i3ZRFAE..ZSU6#201312-201705

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i2ARFXE..AVU65; 3ZRFAE..ZSU6#201705

main23842-28010i3ZRFAE..ZSU6#201312-201705

main23842-38010i8ARFTS..ASU6#201705

23881BBRACKET, FUEL HOSE

main23881-36040i2ARFXE..AVU65201401-201705

main23881-36080i8ARFTS..ASU6#201705

23891SPACER, FUEL DELIVERY

main23891-36010×2i2ARFXE..AVU65201401-201705

main23891-36030×2i8ARFTS..ASU6#201705

23901TUBE SUB-ASSY, FUEL

main23901-36110i2ARFXE..AVU65201401-201705

main23901-37220i3ZRFAE..ZSU6#201705

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77281PCLAMP, FUEL HOSE

main77281-33040iAVU65201705

9011908C84

main90119-08C84

9155180650

main91551-80650

16 parts on this diagram · 4 diagrams in section
