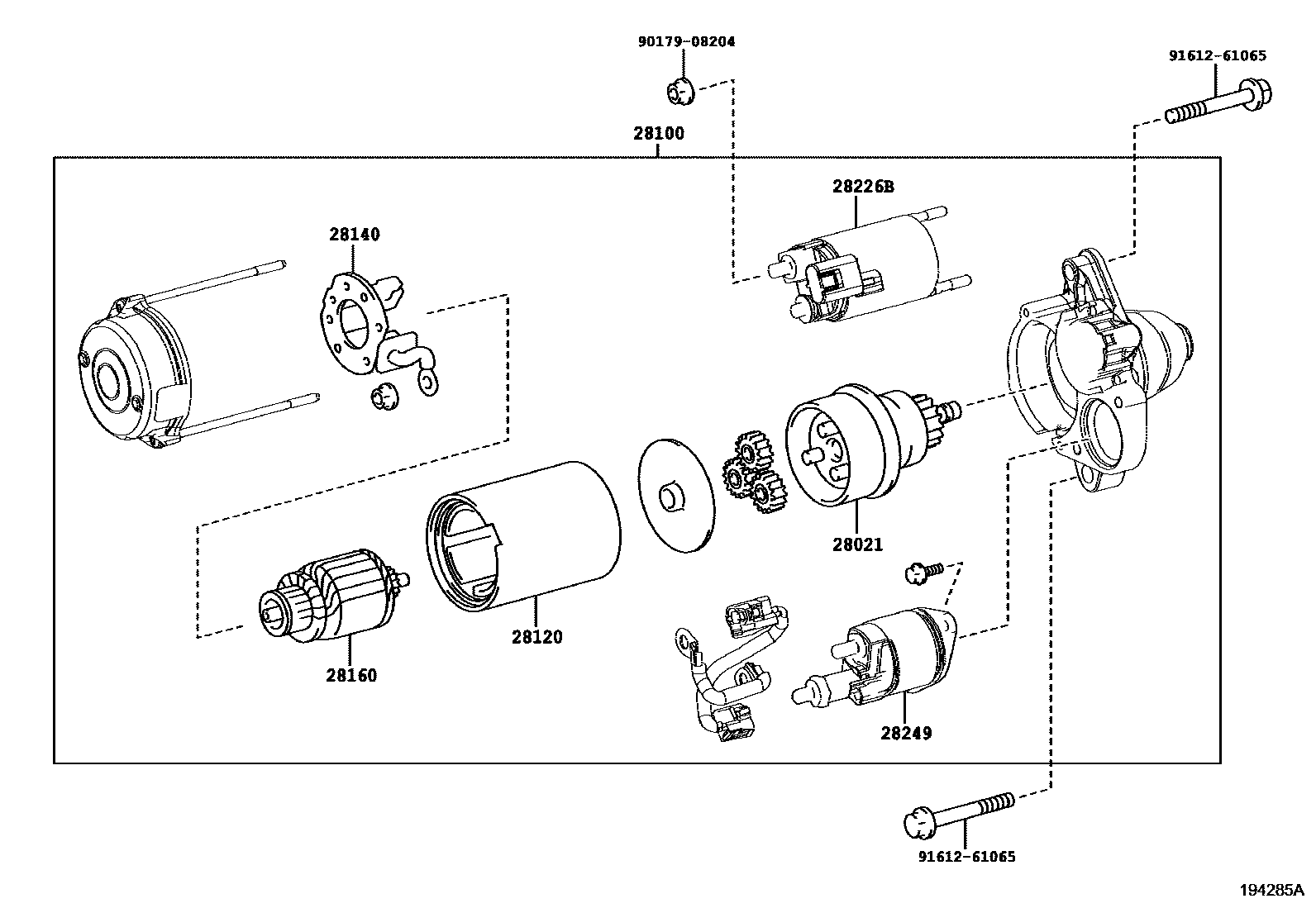

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21100i3ZRFAE..ZSU6#201705

28100STARTER ASSY

main28100-36110i8ARFTS..ASU6#201705-201812

main28100-36111i8ARFTS..ASU6#201812

main28100-37100i3ZRFAE..ZSU6#201312-201407

main28100-37101i3ZRFAE..ZSU6#201408-201705

28120YOKE ASSY, STARTER

main28120-36110i8ARFTS..ASU6#201705

main28120-37100i3ZRFAE..ZSU6#201312-201705

28140HOLDER ASSY, STARTER BRUSH

main28140-21100i3ZRFAE..ZSU6#201312-201705

main28140-36110i8ARFTS..ASU6#201705

28160ARMATURE ASSY, STARTER

main28160-36110i3ZRFAE..ZSU6#201701-201705

main28160-37100i3ZRFAE..ZSU6#201503-201701

main28160-38070i3ZRFAE..ZSU6#201312-201503

28226BSTARTER KIT, REPAIR SERVICE

main28226-36110i8ARFTS..ASU6#201705

main28226-37100i3ZRFAE..ZSU6#201312-201705

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-36110i8ARFTS..ASU6#201705

main28249-37100i3ZRFAE..ZSU6#201312-201705

9017908204

main90179-08204

9161261065

main91612-61065

9 parts on this diagram · 2 diagrams in section
