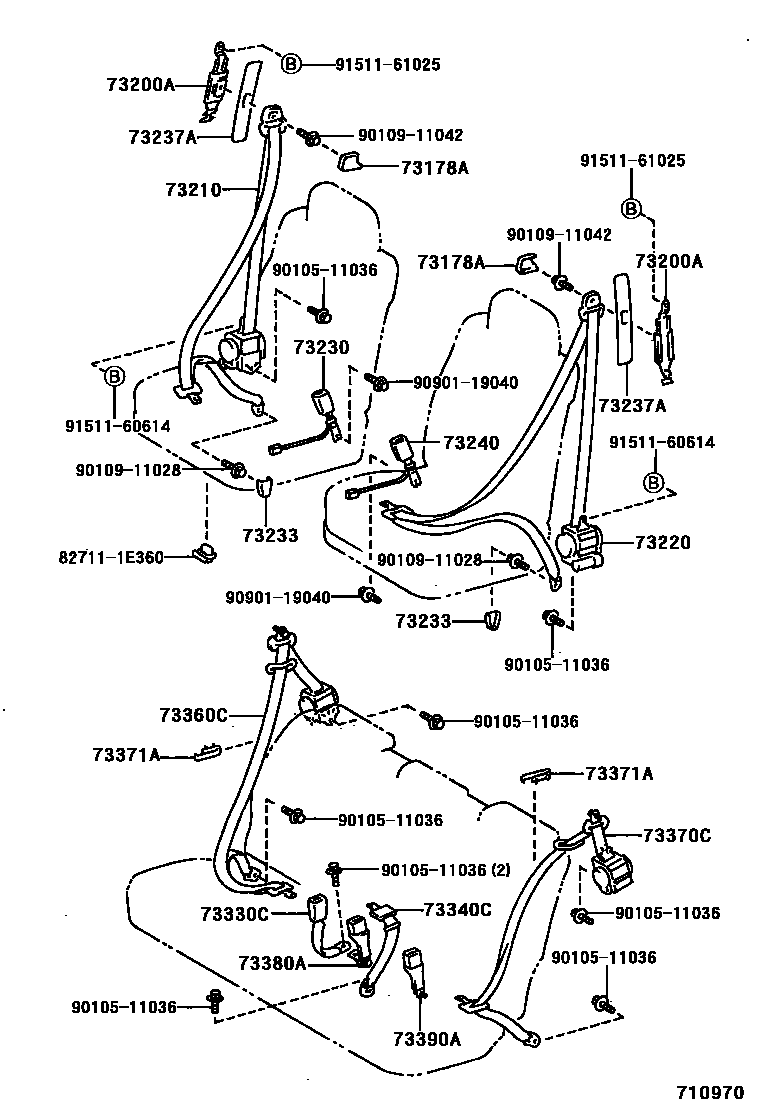

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33010-A1×2iMCU1#,SXU1#199712-200007

IVORY,TRIM0#

main73178-33010-B1×2iMCU1#,SXU1#199901-200007

BLUE GRAY,TRIM1#

main73178-33010-B3×2iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main73178-33020-A1×2iACU1#,MCU1#,SXU1#200007

IVORY,TRIM0#

main73178-33020-B0×2iMCU1#,SXU1#200007-200011

BLUE GRAY,TRIM1#

main73178-33020-B6×2iACU1#,MCU1#200011

LT.GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-33020-A0×2iMCU1#,SXU1#199712-199903

IVORY,TRIM0#

main73200-33020-A1×2iACU1#,MCU1#,SXU1#199903

IVORY,TRIM0#

main73200-33020-B0×2iMCU1#,SXU1#199712-200011

BLUE GRAY,TRIM1#

main73200-33020-B3×2iACU1#,MCU1#200011

LT.GRAY,TRIM2#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-48010-A0iMCU1#,SXU1#199712-199901

IVORY,TRIM0#

main73210-48010-A1iMCU1#,SXU1#199901-199908

IVORY,TRIM0#

main73210-48010-B0iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main73210-48010-B1iMCU1#,SXU1#199901-199908

MD.GRAY,TRIM1#

main73210-48011-A1iMCU1#,SXU1#199908-200007

IVORY,TRIM0#

main73210-48011-B1iMCU1#,SXU1#199908-200007

MD.GRAY,TRIM1#

main73210-48030-A0iACU1#,MCU1#,SXU1#200007

IVORY,TRIM0#

main73210-48030-B0iACU1#,MCU1#200011

LT.GRAY,TRIM2#

main73210-48030-B1iMCU1#,SXU1#200007-200011

MD.GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-48010-A0iMCU1#,SXU1#199712-199901

IVORY,TRIM0#

main73220-48010-A1iMCU1#,SXU1#199901-199908

IVORY,TRIM0#

main73220-48010-B0iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main73220-48010-B1iMCU1#,SXU1#199901-199908

MD.GRAY,TRIM1#

main73220-48011-A1iMCU1#,SXU1#199908-200007

IVORY,TRIM0#

main73220-48011-B1iMCU1#,SXU1#199908-200007

MD.GRAY,TRIM1#

main73220-48030-A0iACU1#,MCU1#,SXU1#200007

IVORY,TRIM0#

main73220-48030-B0iACU1#,MCU1#200011

LT.GRAY,TRIM2#

main73220-48030-B1iMCU1#,SXU1#200007-200011

MD.GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main73230-48010-B0iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main73230-48010-B1iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

main73230-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main73230-48030-A0iACU1#,MCU1#,SXU1#199712

main73230-48030-B0iMCU1#,SXU1#199712-199901

main73230-48030-B1iMCU1#,SXU1#199901-200011

main73230-48030-C0iACU1#,MCU1#200011

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-A1×2iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main73233-33010-B5×2iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main73233-33010-C0×2iACU1#,MCU1#200011

BLACK,TRIM2#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-33010-A1×2iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main73237-33010-B1×2iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main73237-33010-B3×2iACU1#,MCU1#200011

LT.GRAY,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-48020-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main73230-48020-B0iMCU1#,SXU1#199712-199903

MD.GRAY,TRIM1#

main73230-48020-B1iMCU1#,SXU1#199903-200011

BLUE GRAY,TRIM1#

main73230-48020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

73330CBELT ASSY, REAR SEAT LAP TYPE, CENTER RH

main73330-48010-A0iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main73330-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

73340CBELT ASSY, REAR SEAT LAP TYPE, CENTER LH

main73340-48010-A0iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main73340-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

73360CBELT ASSY, REAR NO.1 SEAT, OUTER RH

main73360-48010-A0iMCU1#,SXU1#199712-199901

IVORY,TRIM0#

main73360-48010-A1iMCU1#,SXU1#199901-200011

IVORY,TRIM0#

main73360-48010-B0iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main73360-48010-B1iMCU1#,SXU1#199901-200011

MD.GRAY,TRIM1#

main73360-48020-A0iACU1#,MCU1#200011

IVORY,TRIM0#

main73360-48020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

73370CBELT ASSY, REAR NO.1 SEAT, OUTER LH

main73370-48010-A0iMCU1#,SXU1#199712-199901

IVORY,TRIM0#

main73370-48010-A1iMCU1#,SXU1#199901-200011

IVORY,TRIM0#

main73370-48010-B0iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main73370-48010-B1iMCU1#,SXU1#199901-200011

MD.GRAY,TRIM1#

main73370-48020-A0iACU1#,MCU1#200011

IVORY,TRIM0#

main73370-48020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

73371AHANGER REAR SEAT SHOULDER BELT

main73371-44010-A0×2iMCU1#,SXU1#199712-199802

IVORY,TRIM0#

main73371-44010-B2×2iMCU1#,SXU1#199712-199802

MD.GRAY,TRIM1#

main73371-44020-A1×2iACU1#,MCU1#,SXU1#199802

IVORY,TRIM0#

main73371-44020-B1×2iMCU1#,SXU1#199802-200011

MD.GRAY,TRIM1#

main73371-44020-C0×2iACU1#,MCU1#200011

BLACK,TRIM2#

73380ABELT ASSY, REAR SEAT, INNER

main73380-48010-A0iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main73380-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main73380-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

73390ABELT ASSY, REAR SEAT, INNER

main73480-48010-A0iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main73480-48010-B0iMCU1#,SXU1#199712-200011

MD.GRAY,TRIM1#

main73480-48020-A0iACU1#,MCU1#200011

IVORY,TRIM0#

main73480-48020-C0iACU1#,MCU1#200011

BLACK,TRIM2#

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

9010511036

main90105-11036

9010911028

main90109-11028

9010911042

main90109-11042

9090119040

main90901-19040

9151160614

main91511-60614

9151161025

main91511-61025

22 parts on this diagram · 2 diagrams in section
