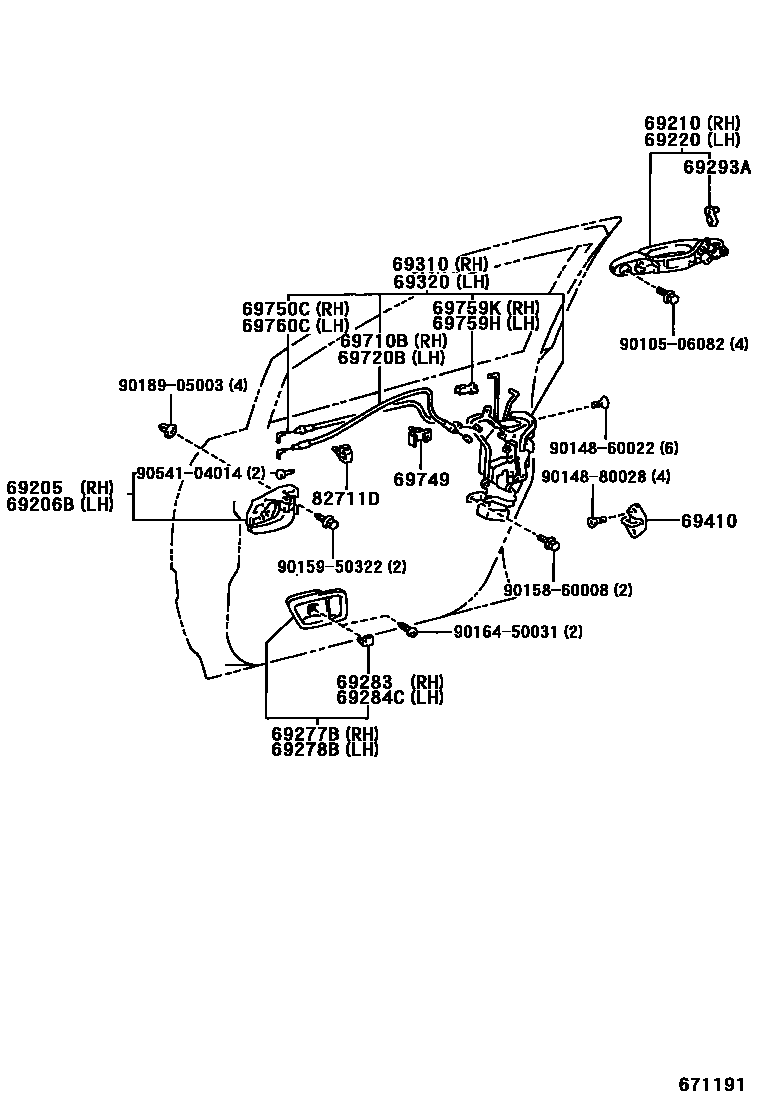

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30150-A1iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main69205-30150-B2iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main69205-30150-B5iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

main69205-48010-A0iACU1#,MCU1#200011

IVORY,TRIM0#

main69205-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30150-A1iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main69206-30150-B2iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main69206-30150-B5iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

main69206-48010-A0iACU1#,MCU1#200011

IVORY,TRIM0#

main69206-48010-C0iACU1#,MCU1#200011

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-48010-A0iMCU1#,SXU1#199712-200006

WHITE PM.,057

main69210-48010-A1iMCU1#,SXU1#199904-200011

main69210-48010-A2iMCU1#,SXU1#199910-200011

main69210-48010-B0iMCU1#,SXU1#199712-200006

SILVER ME.,1C0

main69210-48010-B1iMCU1#,SXU1#199904-200011

main69210-48010-B2iMCU1#,SXU1#199910-200011

main69210-48010-C0iMCU1#,SXU1#199712-200006

BLACK,202

main69210-48010-D0iMCU1#,SXU1#199712-200006

RED MC.,3M8

main69210-48010-E0iMCU1#,SXU1#199712-200006

BEIGE SF.,4P2

main69210-48010-G0iMCU1#,SXU1#199712-200006

GREEN MC.,6R1

main69210-48010-J0iMCU1#,SXU1#199712-200006

DK.BLUE MC.,8L4

main69210-48030-A0iACU1#,MCU1#200011

WHITE PEARL CS.,065

main69210-48030-A1iMCU1#,SXU1#200006-200011

WHITE PM.,057

main69210-48030-A3iACU1#,MCU1#200011-200112

main69210-48030-A3iACU1#,MCU1#200201-200206

main69210-48030-A4iACU1#,MCU1#200108-200302

main69210-48030-B0iACU1#,MCU1#,SXU1#200006

SILVER ME.,1C0

main69210-48030-B1iACU1#,MCU1#200011

DK.GRAY M.M.,1C6

main69210-48030-C0iACU1#,MCU1#,SXU1#200006

BLACK,202

main69210-48030-D1iMCU1#,SXU1#200006-200011

RED MC.,3M8

main69210-48030-E0iACU1#,MCU1#,SXU1#200006

BEIGE SF.,4P2

main69210-48030-G0iMCU1#,SXU1#200006-200011

GREEN MC.,6R1

main69210-48030-J0iACU1#,MCU1#200011

DK.BLUE M.M.,8P4

main69210-48030-J1iACU1#,MCU1#200011

GRAYISH BLUE ME.,8P6

main69210-48030-J2iMCU1#,SXU1#200006-200011

DK.BLUE MC.,8L4

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-48010-A0iMCU1#,SXU1#199712-200006

WHITE PM.,057

main69220-48010-A1iMCU1#,SXU1#199904-200011

main69220-48010-A2iMCU1#,SXU1#199910-200011

main69220-48010-B0iMCU1#,SXU1#199712-200006

SILVER ME.,1C0

main69220-48010-B1iMCU1#,SXU1#199904-200011

main69220-48010-B2iMCU1#,SXU1#199910-200011

main69220-48010-C0iMCU1#,SXU1#199712-200006

BLACK,202

main69220-48010-D0iMCU1#,SXU1#199712-200006

RED MC.,3M8

main69220-48010-E0iMCU1#,SXU1#199712-200006

BEIGE SF.,4P2

main69220-48010-G0iMCU1#,SXU1#199712-200006

GREEN MC.,6R1

main69220-48010-J0iMCU1#,SXU1#199712-200006

DK.BLUE MC.,8L4

main69220-48030-A0iACU1#,MCU1#200011

WHITE PEARL CS.,065

main69220-48030-A1iMCU1#,SXU1#200006-200011

WHITE PM.,057

main69220-48030-A3iACU1#,MCU1#200011-200112

main69220-48030-A3iACU1#,MCU1#200201-200206

main69220-48030-A4iACU1#,MCU1#200108-200302

main69220-48030-B0iACU1#,MCU1#,SXU1#200006

SILVER ME.,1C0

main69220-48030-B1iACU1#,MCU1#200011

DK.GRAY M.M.,1C6

main69220-48030-C0iACU1#,MCU1#,SXU1#200006

BLACK,202

main69220-48030-D1iMCU1#,SXU1#200006-200011

RED MC.,3M8

main69220-48030-E0iACU1#,MCU1#,SXU1#200006

BEIGE SF.,4P2

main69220-48030-G0iMCU1#,SXU1#200006-200011

GREEN MC.,6R1

main69220-48030-J0iACU1#,MCU1#200011

DK.BLUE M.M.,8P4

main69220-48030-J1iACU1#,MCU1#200011

GRAYISH BLUE ME.,8P6

main69220-48030-J2iMCU1#,SXU1#200006-200011

DK.BLUE MC.,8L4

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22090-A1iACU1#,MCU1#200011

IVORY,TRIM0#

main69277-22090-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main69277-30150-A0iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main69277-30150-B4iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main69277-30150-B6iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22050-A1iACU1#,MCU1#200011

IVORY,TRIM0#

main69278-22050-C0iACU1#,MCU1#200011

BLACK,TRIM2#

main69278-30080-A0iMCU1#,SXU1#199712-200011

IVORY,TRIM0#

main69278-30080-B4iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main69278-30080-B6iMCU1#,SXU1#199901-200011

BLUE GRAY,TRIM1#

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-30040-A1iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main69283-30040-B3iMCU1#,SXU1#199901-200011

MD. MOON MIST,TRIM1#

main69283-30040-B6iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main69283-30040-C0iACU1#,MCU1#200011

BLACK,TRIM2#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-30040-A1iACU1#,MCU1#,SXU1#199712

IVORY,TRIM0#

main69284-30040-B3iMCU1#,SXU1#199901-200011

MD.MOON MIST,TRIM1#

main69284-30040-B6iMCU1#,SXU1#199712-199901

MD.GRAY,TRIM1#

main69284-30040-C0iACU1#,MCU1#200011

BLACK,TRIM2#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iACU1#,MCU1#,SXU1#199712

main69293-12060iACU1#,MCU1#,SXU1#199712

69310LOCK ASSY, FRONT DOOR, RH

main69030-48010iACU1#,MCU1#,SXU1#199712

69320LOCK ASSY, FRONT DOOR, LH

main69040-48010iACU1#,MCU1#,SXU1#199712

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iACU1#,MCU1#,SXU1#199712

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-48010iACU1#,MCU1#,SXU1#199712

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-48010iACU1#,MCU1#,SXU1#199712

69749CLAMP, FRONT DOOR LOCK LINK

main69749-30050iACU1#,MCU1#,SXU1#199712

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-48010iACU1#,MCU1#,SXU1#199712

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24050iACU1#,MCU1#,SXU1#199712

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-24060iACU1#,MCU1#,SXU1#199712

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-48010iACU1#,MCU1#,SXU1#199712

82711DCLAMP, WIRING HARNESS

main82711-16790iMCU1#,SXU1#199712-200011

main82711-1E260iACU1#,MCU1#200011

9010506082

main90105-06082

9014860022

main90148-60022

9014880028

main90148-80028

9015860008

main90158-60008

9015950322

main90159-50322

9016450031

main90164-50031

9018905003

main90189-05003

9054104014

main90541-04014

28 parts on this diagram · 1 diagram in section
