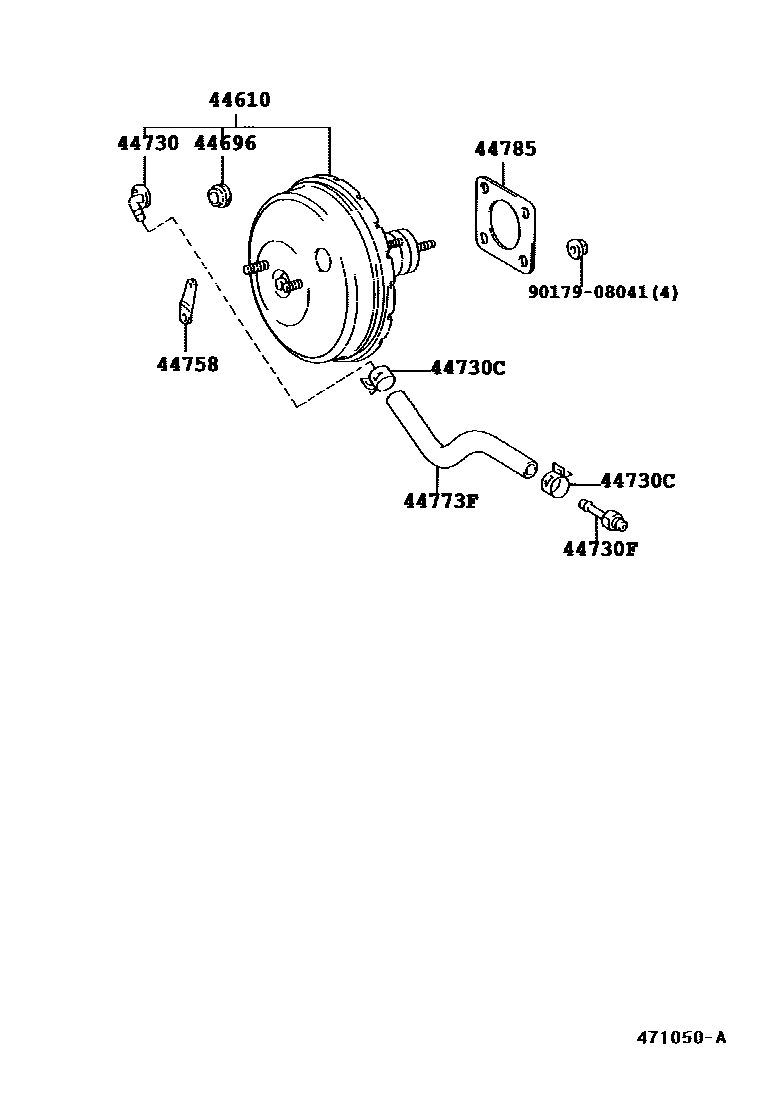

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-48010iACU1#,MCU1#,SXU1#199712

main44610-48020iMCU10199712-200011

main44610-48020iMCU1#200011

44696GROMMET, CHECK VALVE

main90480-24015iACU1#,MCU1#,SXU1#199712

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iACU1#,MCU1#,SXU1#199712

44730CCLIP(FOR VACUUM HOSE)

main90467-16002iACU1#,MCU1#,SXU1#199712

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCU1#,SXU1#199712

44758BRACKET, VACUUM CHECK VALVE

main44758-40020iACU1#,MCU1#,SXU1#199712

44773FHOSE, UNION TO CHECK VALVE

main44773-48010iSXU1#199712-200011

main44773-48020iMCU1#199712-200011

main44773-48030iACU1#200011

main44773-48040iMCU1#200011

44785GASKET, BRAKE BOOSTER

main44785-32010iACU1#,MCU1#,SXU1#199712

9017908041

main90179-08041

9 parts on this diagram · 3 diagrams in section
