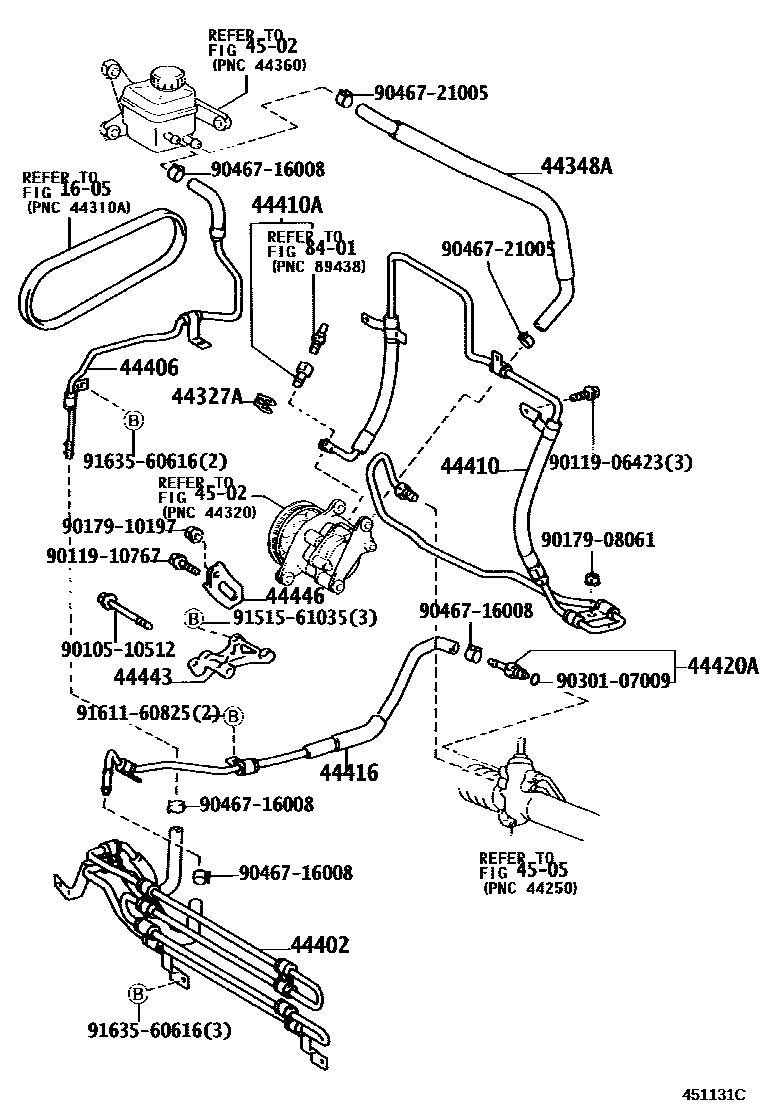

POWER STEERING TUBE

0001 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iACU1#,MCU1#,SXU1#199712

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-48010iMCU1#199712

main44348-48020iSXU1#199712-200011

main44348-48030iACU1#200011

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-48010iMCU1#199712

main44402-48020iSXU1#199712-200011

44406TUBE SUB-ASSY, RETURN

main44406-48020iMCU1#,SXU1#199712

main44406-48030iACU1#200011

44410TUBE ASSY, PRESSURE FEED

main44410-48010iSXU1#199712-200011

main44410-48020iMCU1#199712-200011

main44410-48040iACU1#200011

main44410-48050iMCU1#200011

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-33090iMCU1#,SXU1#199712

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-48010iMCU1#,SXU1#199712

main44416-48030iACU1#200011

44420ATUBE ASSY, RETURN

main44420-17010iACU1#,MCU1#,SXU1#199712

44443BRACKET, PUMP

main44443-33020iSXU1#199712-200011

main44443-33041iMCU1#199712

44446STRUT, ADJUSTING

main44446-33010iMCU1#199712

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510512

main90105-10512

9011906423

main90119-06423

9011910767

main90119-10767

9017908061

main90179-08061

9017910197

main90179-10197

9030107009

main90301-07009

9046716008

main90467-16008

9046721005

main90467-21005

9151561035

main91515-61035

9161160825

main91611-60825

9163560616

main91635-60616

25 parts on this diagram · 3 diagrams in section
