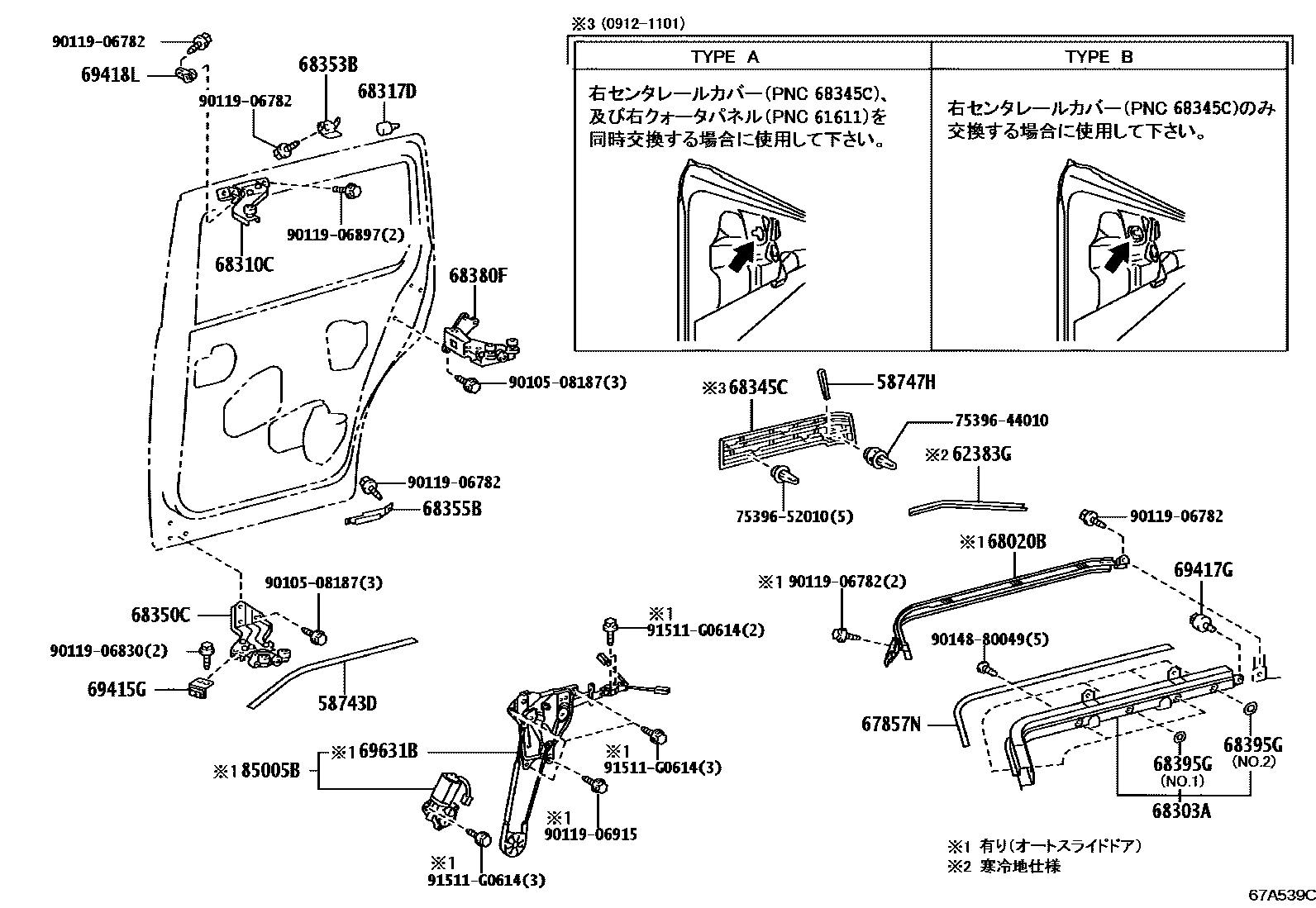

SLIDE DOOR ROLLER & RAIL

0001 1��� 0002 1���

58743DPROTECTOR, SLIDE DOOR PANEL, RH

main58743-44010iANM1#,ZNM10200409-200909

58747HPROTECTOR, QUARTER PANEL, REAR RH

main58745-44010iANM1#,ZNM10200409-200909

62383GWEATHERSTRIP, ROOF SIDE RAIL, REAR RH

main62383-44010iANM1#,ZNM10200409-200909

67857NPROTECTOR, SLIDE DOOR RAIL, RH

main67857-44010iANM1#,ZNM10200409-200909

68020BGUIDE ASSY, SLIDE DOOR CABLE, RH

main68020-44010iZGM1#..PLTNA; ZGM11,15..PLTNA; ZGM11..G200909-201106

68303ARAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-44020iANM1#,ZNM10200409-200909

main68303-44021iZGM1#201206-201801

main68303-44010iZGM1#..G; ZGM1#..PLTNA201106-201205

main68303-44011iZGM1#..G; ZGM1#..PLTNA201206-201801

68310CROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-44010iZGM1#200909-201801

68317DSTOPPER, SLIDE DOOR UPPER RAIL

main68317-52020×2iANM1#,ZNM10200409-200909

68345CCOVER, SLIDE DOOR CENTER RAIL

main60835-44010iANM1#,ZNM10200409-200806

main60835-44011iZGM1#200912-201801

main60835-44020iZGM1#200912-201101

68350CROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-44010iANM1#,ZNM10200409-200909

68353BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.2

main68353-52010×2iZGM1#200909-201801

68355BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH

main68355-46010iANM1#,ZNM10200409-200909

68380FHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-44010iANM1#,ZNM10200409-200909

main68380-44020iZGM1#..PLTNA; ZGM11,15..PLTNA; ZGM11..G200909-201106

68395GPACKING, SLIDE DOOR CENTER RAIL

main68395-44010×2iZGM1#200909-201801

main68395-46020×8iANM1#,ZNM10200409-200909

69415GSTOPPER, SLIDE DOOR DOWN FEMALE

main69415-44010iANM1#,ZNM10200409-200909

main69415-46030iZGM1#200909-201801

69417GCUSHION, SLIDE DOOR OPEN STOPPER, RH

main69417-44010iANM1#,ZNM10200409-200909

69418LSTOP, SLIDE DOOR OPEN, RH

main69418-46010iANM1#,ZNM10200409-200909

69631BCONTROL, SLIDE DOOR ATTACHMENT, RH

main69631-44010iZGM1#200909-201801

85005BMOTOR UNIT, SLIDE DOOR, RH

main85005-44010iANM1#..G200409-200705

main85005-44011iANM1#..G; ANM1#..PLTNA200708-200909

7539644010CLIP, OUTSIDE MOULDING, NO.2

main75396-44010

7539652010CLIP, OUTSIDE MOULDING, NO.2

main75396-52010

9010508187

main90105-08187

9011906782

main90119-06782

9011906830

main90119-06830

9011906897

main90119-06897

9011906915

main90119-06915

9014880049

main90148-80049

91511G0614

main91511-G0614

28 parts on this diagram · 2 diagrams in section
