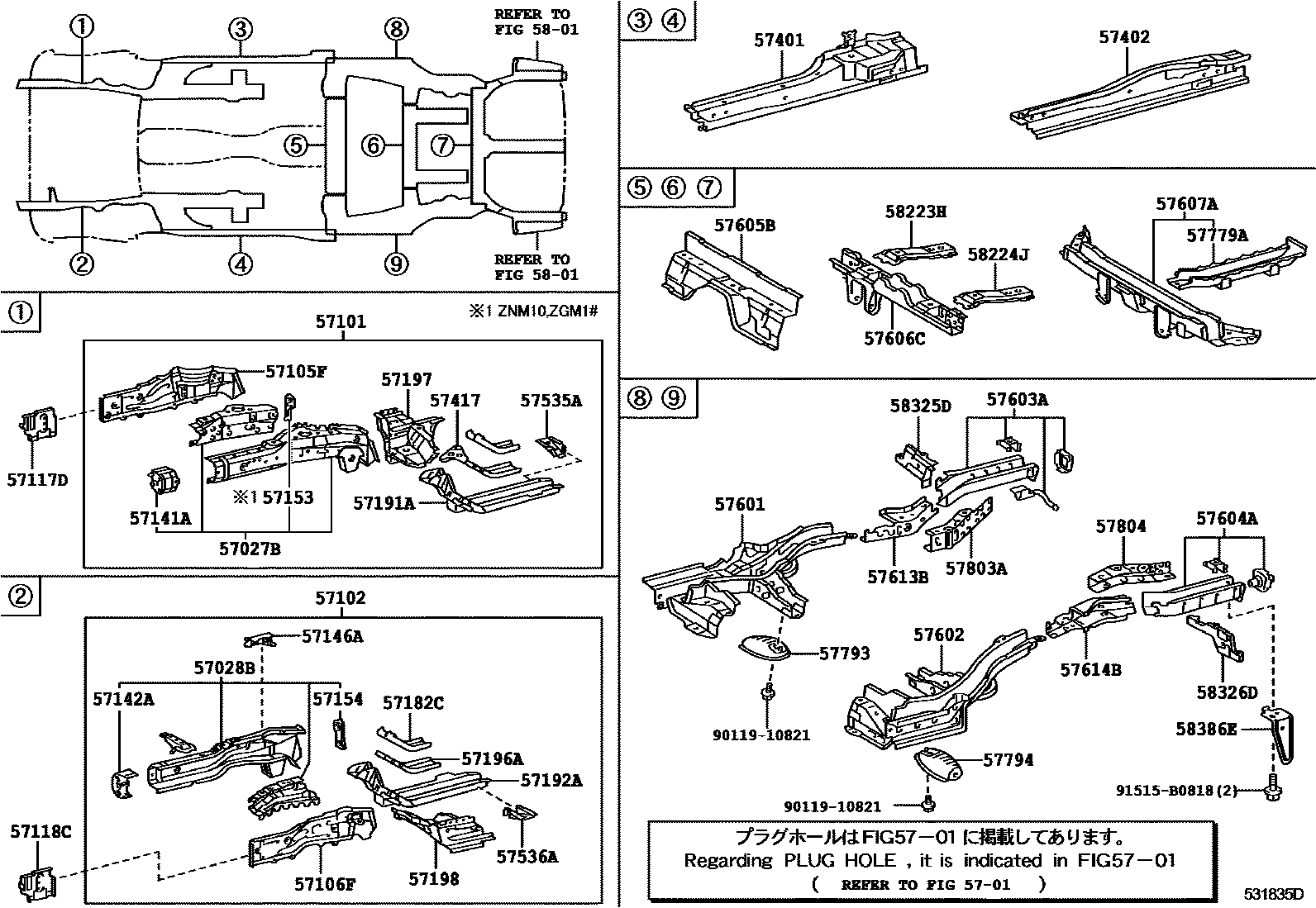

5701HOLE PLUG

→ Go to FIG 57-01

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-44030i200409-200909

main57027-44040i200409-200909

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-44030i200409-200909

main57028-44040i200409-200909

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-44050i200409-200909

main57101-44060i200409-200909

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-44040i200909-201801

main57102-44050i200409-200909

57105FPLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER RH

main57025-44020i200409-200909

main57025-44030i200409-200909

57106FPLATE SUB-ASSY, FRONT SIDE MEMBER, OUTER LH

main57026-44020i200409-200909

57117DRETAINER, FRONT BUMPER ARM, RH

main57117-44010i200409-200909

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-44020i200409-200909

57141ASUPPORT, FRONT BUMPER ARM, RH

main57013-44010i200409-200909

57142ASUPPORT, FRONT BUMPER ARM, LH

main57014-44010i200409-200909

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020i200409-200909

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-44020i200409-200909

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-44020i200409-200909

57182CREINFORCEMENT, FRONT SIDE MEMBER, REAR NO.1 LH

main57182-44040i200409-200909

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-44030i200409-200909

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-44030i200409-200909

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-44010i200409-200909

57197BOX, TORQUE, FRONT RH

main57077-44010i200409-200909

57198BOX, TORQUE, FRONT LH

main57078-44010i200409-200909

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-44030i200409-200909

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-44030i200409-200909

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-44010i200409-200909

57535ABRACE, FRONT FLOOR, RH

main57535-13010i200409-200909

57536ABRACE, FRONT FLOOR, LH

main57536-13010i200409-200909

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-44901i200409-200512

main57601-44903i200512-200909

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-44902i200409-200909

main57602-44903i201112

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-44040i200409-200909

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-44040i200409-200909

main57604-44041i201206

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-44050i200409-200909

main57605-44060i200409-200909

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-44180i200909-201201

main57606-44190i200909-201201

main57606-44200i201201

main57606-44210i201201

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-44080i200409-200909

main57607-44090i200909

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57613-44010i200409-200909

57614BMEMBER, REAR FLOOR SIDE, CENTER LH

main57614-44010i200409-200909

57779AGUSSET, REAR FLOOR CROSSMEMBER, B

main57779-44901i200409-200909

57793BRACKET, REAR SUSPENSION ARM, REAR RH NO.1

main57793-44030i200409-200503

main57793-44040i200504-200909

57794BRACKET, REAR SUSPENSION ARM, REAR LH NO.1

main57794-44030i200409-200909

57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH

main57803-44020i200409-200909

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-44020i200409-200909

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

58223HREINFORCEMENT, FLOOR PANEL SIDE, RH

main58223-44010i200409-200909

58224JREINFORCEMENT, FLOOR PANEL SIDE, LH

main58224-44010i200409-200909

58325DBRACE, REAR FLOOR PANEL, RH

main58325-44050i200409-200909

58326DBRACE, REAR FLOOR PANEL, LH

main58326-44010i200409-200909

58386EBRACKET, REAR BUMPER COVER, LH

main58385-44050i201206

9011910821

main90119-10821

91515B0818

main91515-B0818
