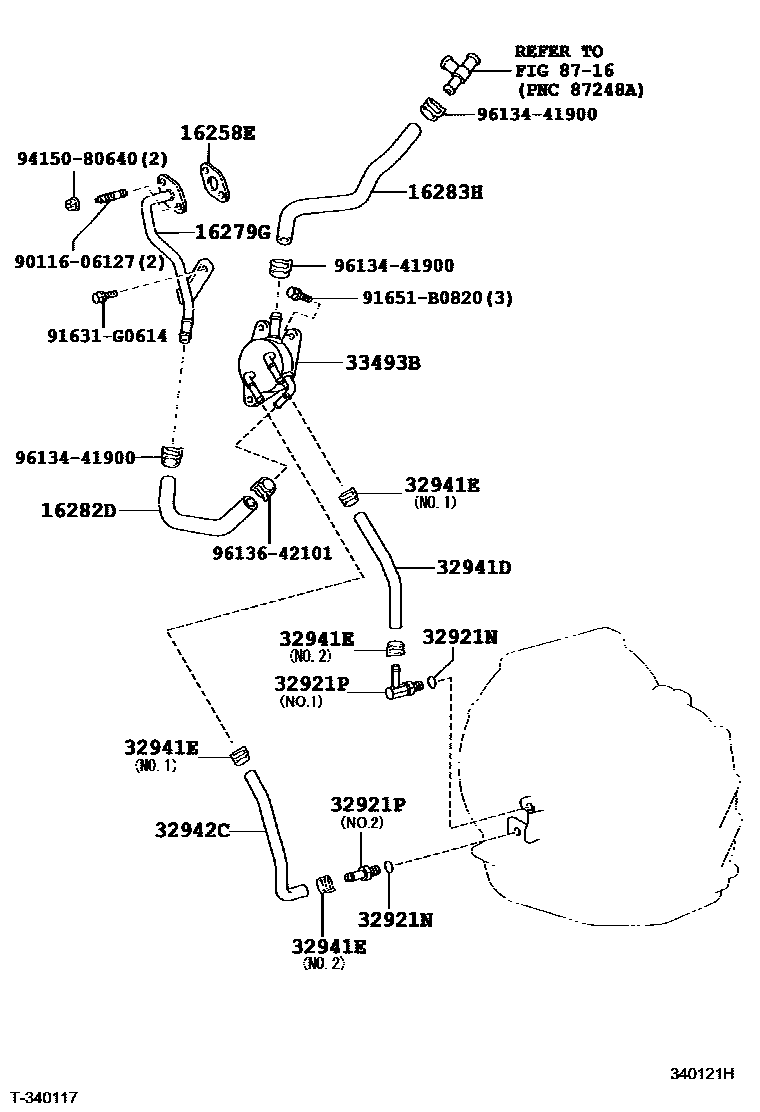

OIL COOLER & TUBE(CVT)

0001 1K111,K111F 0002 1K111 0003 1K311,K311F

16258EGASKET(FOR WATER BY-PASS PIPE)

main16258-28040i1AZFSE..ANM1#200409-200909

16279GPIPE, WATER BY-PASS, NO.3

main16279-28020i1AZFSE..ANM1#200409-200909

16282DHOSE, WATER BY-PASS, NO.5

main16282-28050i1AZFSE..ANM1#200409-200909

16283HHOSE, WATER BY-PASS, NO.6

main16261-37060i3ZRFAE..ZGM11200909-201801

main16283-28050i1AZFSE..ANM1#200409-200909

32921NRING, O(FOR OIL COOLER TUBE UNION)

main90301-10018×2iZGM11201512

main90301-10189×2iZGM11200909-201511

32921PUNION(FOR OIL COOLER TUBE)

main90404-13004iANM1#200409-200909

main90404-13010×2iZGM11201512

main90407-13009iANM1#200409-200909

32941DHOSE, OIL COOLER INLET

main32943-28070iZGM11200909-201102

main32943-44010iANM1#200409-200909

main90445-17101iZGM11201102

32941ECLIP(FOR OIL COOLER TUBE)

main90466-16004×2iANM1#200709-200909

main90467-16022×2iANM1#200409-200708

32942CHOSE, OIL COOLER OUTLET, NO.1

main32943-28080iZGM11200909

main32943-44020iANM1#200409-200507

main32943-44021iANM1#200508-200909

33493BCOOLER, OIL

main33493-20050iZGM10200910-201604

main33493-20110iZGM11201102-201801

main33493-28040iZGM11200909-201102

main33493-44030iANM1#200409-200909

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9011606127

main90116-06127

91631G0614

main91631-G0614

91651B0820

main91651-B0820

9415080640

main94150-80640

9613441900

main96134-41900

9613642101

main96136-42101

17 parts on this diagram · 3 diagrams in section
