Toyota 513120 — MANIFOLD

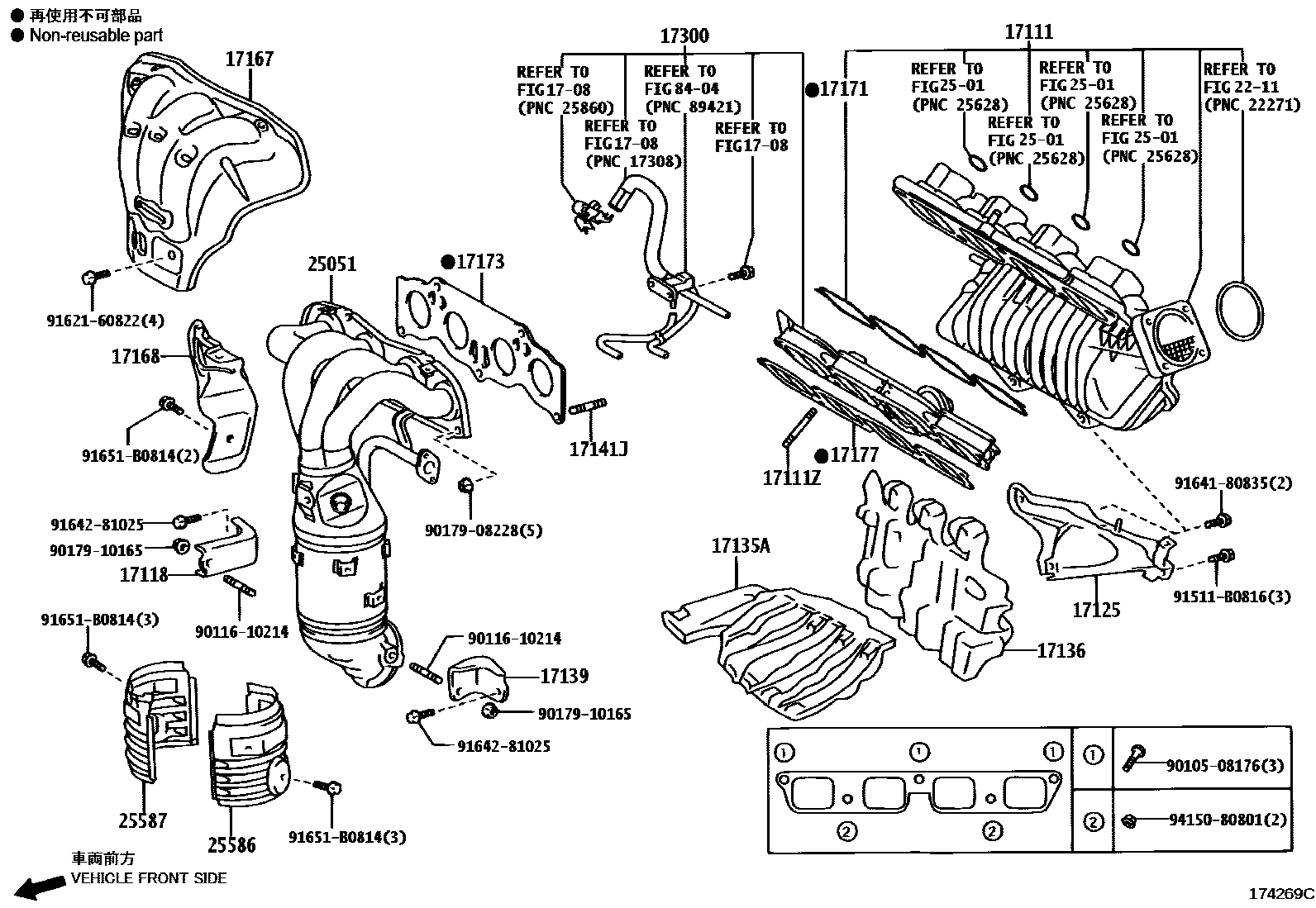

Parts diagram

1708VACUUM PIPING

→ Go to FIG 17-08

17111MANIFOLD, INTAKE

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

17118STAY, MANIFOLD

17125STAY, SURGE TANK, NO.1

17135AINSULATOR, INTAKE MANIFOLD, NO.1

17136INSULATOR, INTAKE MANIFOLD, NO.2

17139STAY, MANIFOLD, NO.2

17141MANIFOLD, EXHAUST

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

17171GASKET, INTAKE TO EXHAUST MANIFOLD

17173GASKET, EXHAUST MANIFOLD TO HEAD

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

17300VALVE ASSY, INTAKE AIR CONTROL

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

25586INSULATOR, MANIFOLD CONVERTER, NO.1

25587INSULATOR, MANIFOLD CONVERTER, NO.2

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010508176

9011610214

9017908228

9017910165

91511B0816

9162160822

9164180835

9164281025

91651B0814

9415080801

32 parts on this diagram · 7 diagrams in section

MANIFOLD for Toyota 513120

This section contains 53 genuine Toyota parts for the MANIFOLD system of the Toyota 513120. Key components include: JOINT, ENGINE COVER, VACUUM PIPING, MANIFOLD, INTAKE, BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD), STAY, MANIFOLD.
