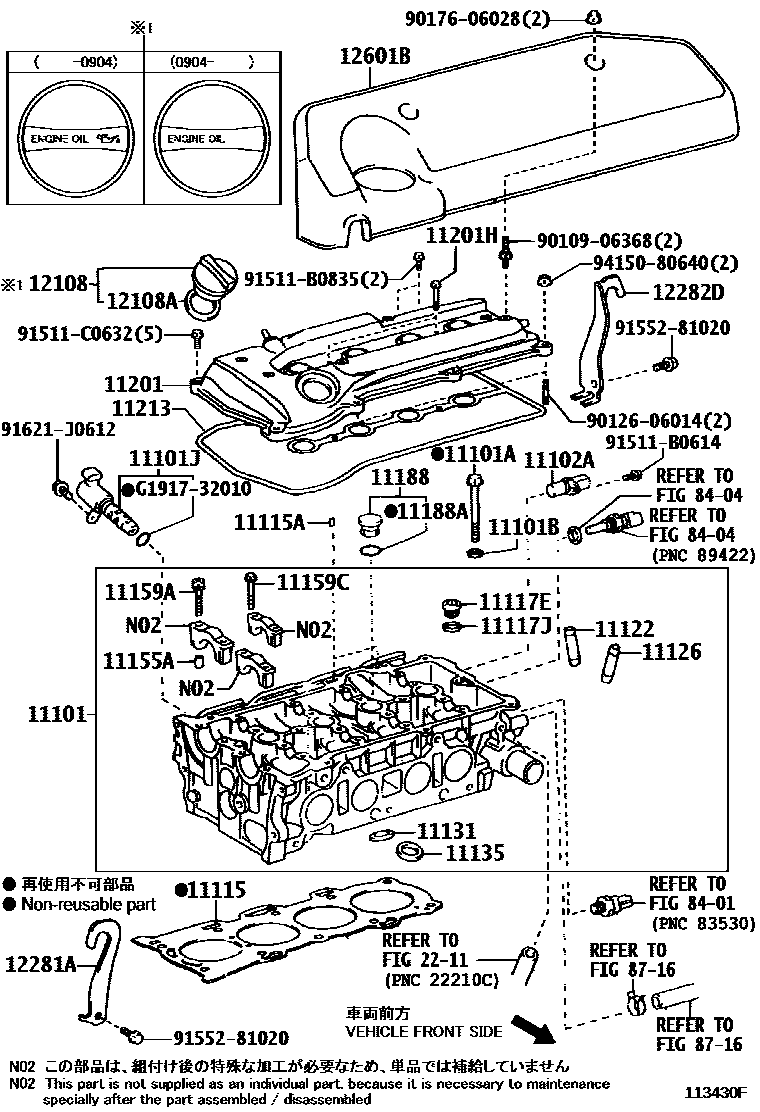

Toyota 513120 — CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11102ASENSOR, CAMSHAFT POSITION
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11188ARING, O(FOR CAMSHAFT HOUSING PULG)
11201COVER SUB-ASSY, CYLINDER HEAD
11201HBOLT(FOR CYLINDER HEAD COVER)
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
12601BCOVER SUB-ASSY, ENGINE, NO.1
9010906368
9012606014
9017606028
91511B0614
91511B0835
91511C0632
9155281020
91621J0612
9415080640
G191732010
36 parts on this diagram · 4 diagrams in section
CYLINDER HEAD for Toyota 513120
This section contains 77 genuine Toyota parts for the CYLINDER HEAD system of the Toyota 513120. Key components include: HEAD SUB-ASSY, CYLINDER, BOLT(FOR CYLINDER HEAD SET), WASHER, PLATE(FOR CYLINDER HEAD SET), SENSOR, CAM POSITION, VALVE ASSY, CAMSHAFT TIMING OIL CONTROL.
