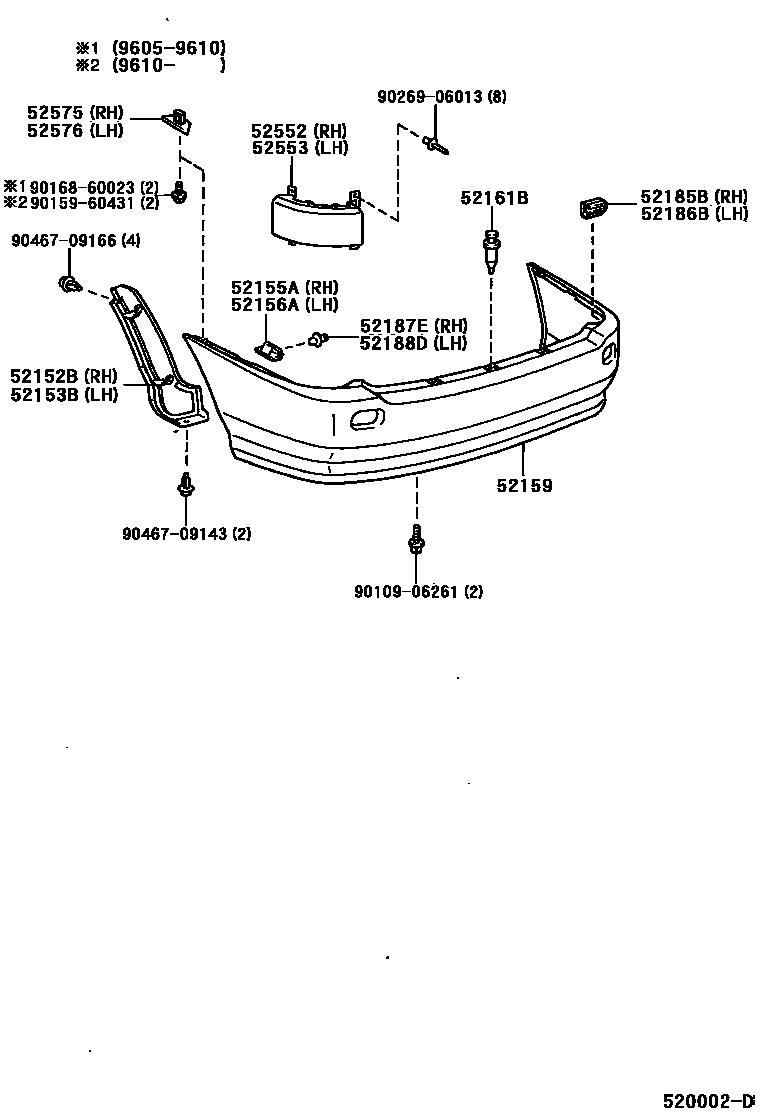

REAR BUMPER & BUMPER STAY

52152BEXTENSION, REAR BUMPER, RH

main52152-44010iCXM10,SXM1#199605

52153BEXTENSION, REAR BUMPER, LH

main52153-44010iCXM10,SXM1#199605

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-44010iCXM10,SXM1#199605

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-44010iCXM10,SXM1#199605

52159COVER, REAR BUMPER

main52159-44010-A0iCXM10,SXM1#..E,IPSUM199804-199908

SILVER ME.,199 ,8K5 ,8N2

main52159-44010-A1iSXM1#..IPSUM199910-200004

main52159-44010-A2iCXM10,SXM1#..E,IPSUM200004

SILVER ME,199 ,765 ,8K5

main52159-44010-B1iSXM10..E199804

main52159-44010-C0iSXM10..E199804

main52159-44010-F0iSXM10..E199804

main52159-44010-F1iSXM1#..IPSUM200010-200104

main52159-44010-G0iSXM1#..IPSUM199712-199804

main52159-44010-H0iSXM1#..IPSUM199812-200004

main52159-44020-A0iSXM1#199605-199708

main52159-44020-A2iCXM10,SXM1#..IPSUM,L199908-200004

main52159-44020-B1iSXM1#..IPSUM199806

main52159-44020-D0iSXM1#..IPSUM199806

main52159-44020-G0iSXM1#..IPSUM,L199712-199804

main52159-44020-J0iSXM1#..IPSUM199806

main52159-44030-G0iSXM1#..IPSUM,L199611-199707

main52159-44040-A1iSXM1#..ATG200004

WHITE PM.,057

main52159-44040-A2iSXM1#..ATG200004

SILVER ME,199

main52159-44040-C1iSXM1#..ATG200004

BLACK,202

main52159-44050-G0iCXM10,SXM1#..E,IPSUM199804

YELLOW SILVER,057 ,3J8 ,760

main52159-44060-A0iSXM1#..ATG199708-199804

WHITE,056

main52159-44060-A1iSXM1#..ATG199804

main52159-44060-A2iSXM1#..ATG200004

main52159-44060-C1iSXM1#..ATG199708

52161BPIECE, REAR BUMPER

main52161-16010×5iSXM1#..ATG199708-199804

main52161-44010-B0×5iCXM10,SXM1#..E,IPSUM,L199605-199804

MOON GRAY,056 ,057 ,199 ,3J8 ,6N5 ,6P4 ,760 ,8K5 ,8K9 ,8N2

main52161-44010-C0×5iSXM10..E199804

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-44010iCXM10,SXM1#199605

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-44010iCXM10,SXM1#199605

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iCXM10,SXM1#199804

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070×2iSXM1#..ATG199708-199804

52552FILLER, REAR BUMPER, RH

main52552-44010iCXM10,SXM1#199605

52553FILLER, REAR BUMPER, LH

main52553-44010iCXM10,SXM1#199605

52575RETAINER, REAR BUMPER SIDE, RH

main52575-44010iCXM10,SXM1#199605

52576RETAINER, REAR BUMPER SIDE, LH

main52575-44010iCXM10,SXM1#199605

9010906261

main90109-06261

9015960431

main90159-60431

9016860023

main90168-60023

9026906013

main90269-06013

9046709143

main90467-09143

9046709166

main90467-09166

20 parts on this diagram · 1 diagram in section
