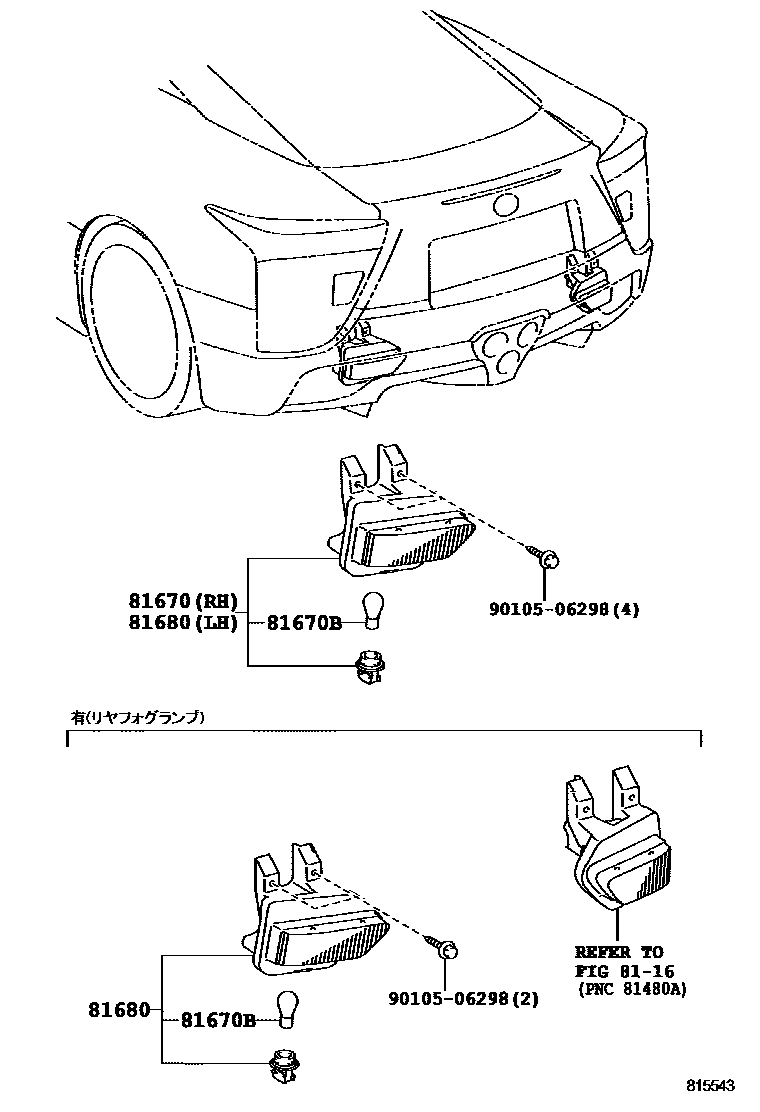

BACK UP LAMP

8116REAR FOG LAMP

→ Go to FIG 81-16

81670LAMP ASSY, BACK-UP, RH

main81670-77020iLFA10201012

81670BBULB(FOR BACK-UP LAMP)

main99132-11210iLFA10201012-201212

81680LAMP ASSY, BACK UP, LH

main81680-77010supersedes 81680-77020iLFA10201012

9010506298

main90105-06298

5 parts on this diagram · 1 diagram in section
