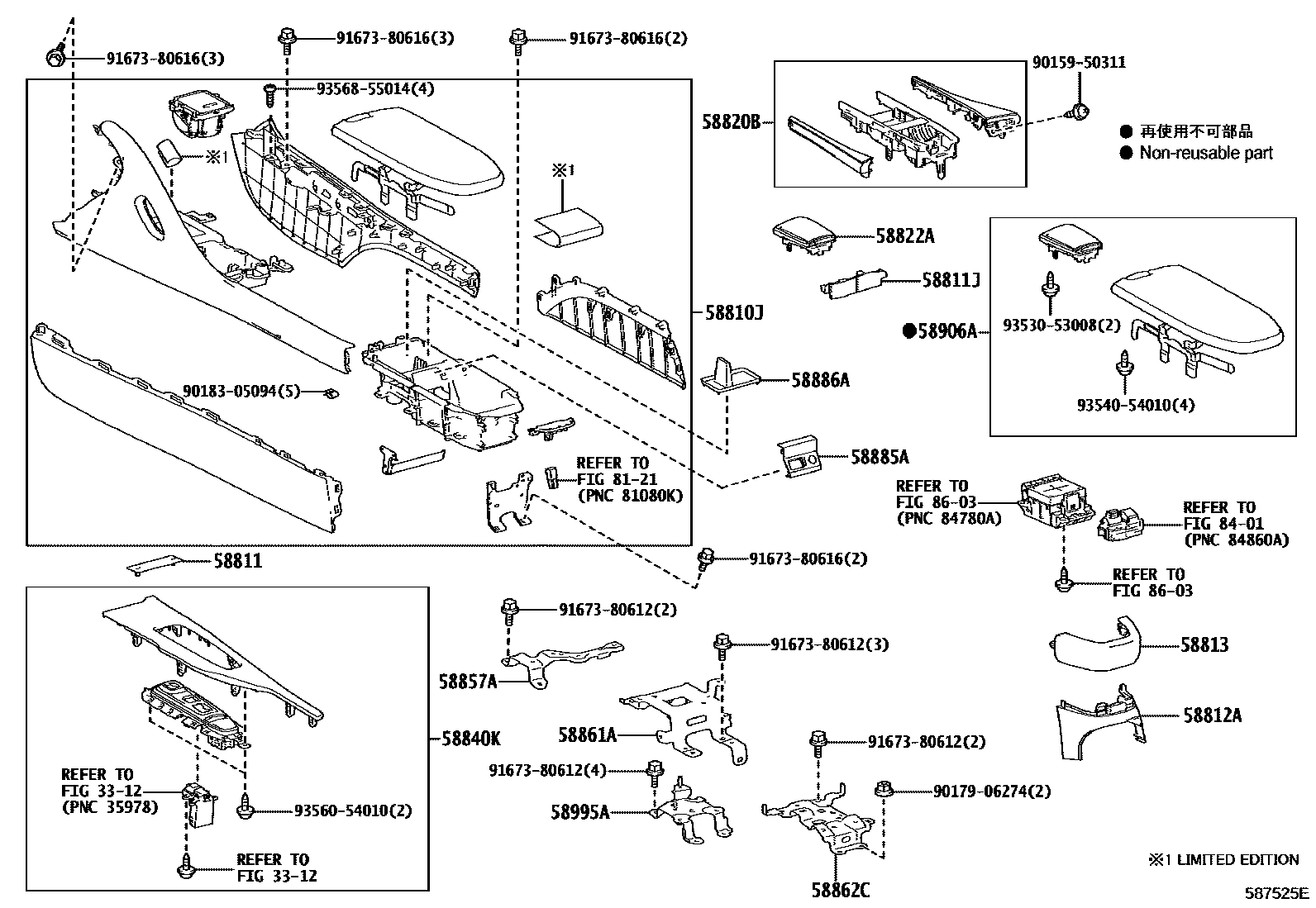

CONSOLE BOX & BRACKET
3312SHIFT LEVER & RETAINER
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
BLACK,TRIM2#
BLACK/CRIMSON,TRIM3#
BLACK/DK. ROSE,TRIM23
OCHER,TRIM4#
OCHER,TRIM4#
58811PLATE, CONSOLE, FRONT
58811JPLATE, CONSOLE
58812ABOX, CONSOLE, LOWER
WHITE,TRIM0#
BLACK,TRIM2#,3#
OCHRE,TRIM4#
58813BOX, CONSOLE, UPPER
BLACK,TRIM2#,3#
OCHRE,TRIM4#
BLUE,TRIM0#
58820BPANEL ASSY, CONSOLE, UPPER
WHITE,TRIM0#
BLACK,TRIM2#,3#
DK. ROSE,TRIM23
OCHER,TRIM4#
58822APANEL, CONSOLE, UPPER REAR
WHITE,TRIM0#
BLACK,TRIM2#,3#
DK. ROSE,TRIM23
OCHER,TRIM4#
58840KCOVER ASSY, SHIFTING HOLE
CRIMSON,TRIM3#
LT.OCHRE,TRIM4#
BLACK,TRIM20
CRIMSON,TRIM3#
DK. ROSE,TRIM23
LT.OCHRE,TRIM4#
58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1
58862CSUPPORT, CONSOLE BOX, NO.2
58885APANEL, EQUIPMENT SET
58886ACOVER, EQUIPMENT SET PANEL
58906APAD SUB-ASSY, CONSOLE COMPARTMENT DOOR
WHITE/BLUE,TRIM0#
BLACK/LT.GRAY,TRIM2#,3#
DK.ROSE/RED,TRIM23
OCHER/OCHRE,TRIM4#
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
8121INTERIOR LAMP
8401SWITCH & RELAY & COMPUTER
8603NAVIGATION & FRONT MONITOR DISPLAY
9015950311
main90159-50311
9017906274
main90179-06274
9018305094
main90183-05094
9167380612
main91673-80612
9167380616
main91673-80616
9353053008
main93530-53008
9354054010
main93540-54010
9356054010
main93560-54010
9356855014
main93568-55014
28 parts on this diagram · 1 diagram in section
