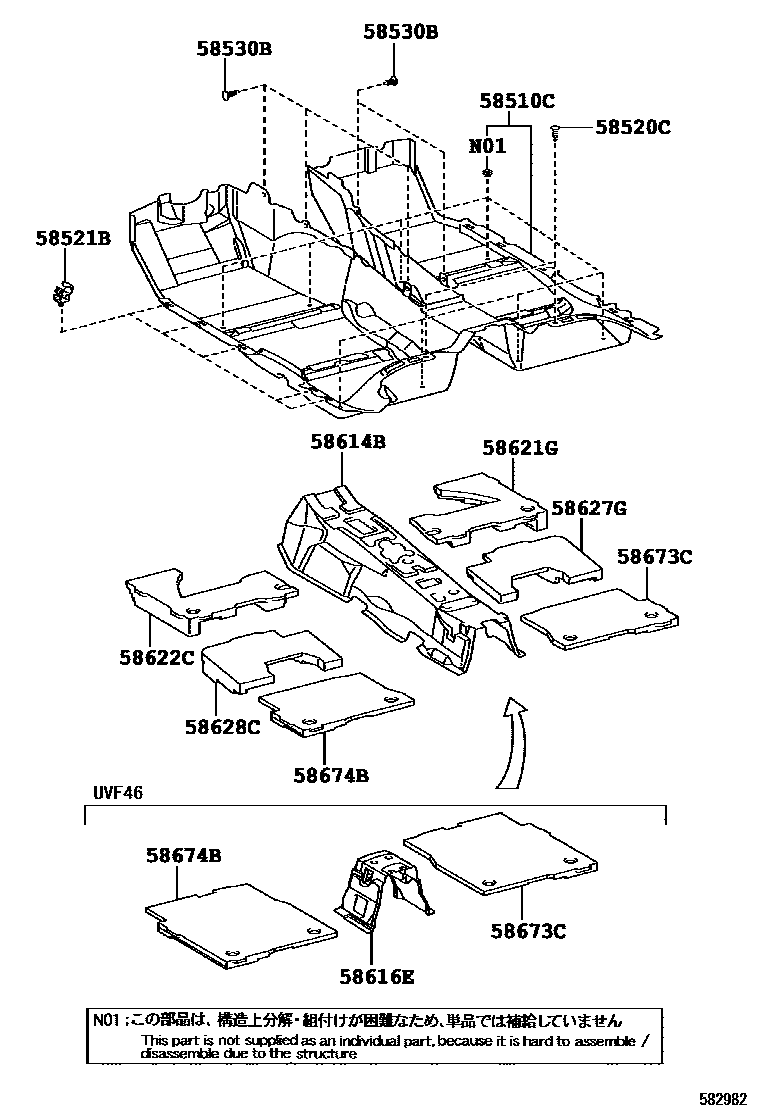

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-50600-A0iUVF45200809-200911

IVORY,TRIM00,06

main58510-50600-A1iUVF45200911-201209

MELLOW WHITE,TRIM01,05,07,08

main58510-50600-A2iUVF45200911-201209

IVORY,TRIM02,03

main58510-50600-B0iUVF45200911-201209

LT.GRAY,TRIM10,11

main58510-50600-C0iUVF45200704-200809

BLACK,TRIM20,21

main58510-50700-A0supersedes 58510-50620-A0iUVF46200704-200809

main58510-50700-A1supersedes 58510-50620-A1iUVF46200911-201209

main58510-50700-A2supersedes 58510-50620-A2iUVF46200911-201209

main58510-50700-B0supersedes 58510-50620-B0iUVF46200809-200911

main58510-50700-C0supersedes 58510-50620-C0iUVF46200911-201209

main58510-50780-A0supersedes 58510-50620-A1iUVF46200911-201209

main58510-50780-A1supersedes 58510-50620-A2iUVF46200911-201209

main58510-50780-C0supersedes 58510-50620-C0iUVF46200911-201209

main58510-50790-A0supersedes 58510-50620-A1iUVF46200911-201209

main58510-50790-A1supersedes 58510-50620-A2iUVF46200911-201209

main58510-50790-C0supersedes 58510-50620-C0iUVF46200911-201209

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B8×2iUVF4#200704-200809

LT.GRAY

58521BHOOK, FLOOR CARPET

main58521-50040×12iUVF4#200809-200911

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-C0×5iUVF4#200704-200809

BLACK

58614BSHEET, CENTER FLOOR SILENCER

main58644-50080iUVF4#200704-200809

58616ESHEET, CENTER FLOOR SILENCER, CENTER

main58644-50070iUVF46200704-200809

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-50030iUVF4#200809-200911

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-50020iUVF4#200809-200911

58627GPAD, CENTER FLOOR SILENCER, REAR RH

main58627-50020iUVF4#200704-200809

58628CPAD, CENTER FLOOR SILENCER, REAR LH

main58628-50020iUVF4#200704-200809

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-50010iUVF46200704-200809

main58673-50020iUVF45200704-200809

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-50020iUVF46200704-200809

main58674-50030iUVF45200704-200809

12 parts on this diagram · 1 diagram in section
