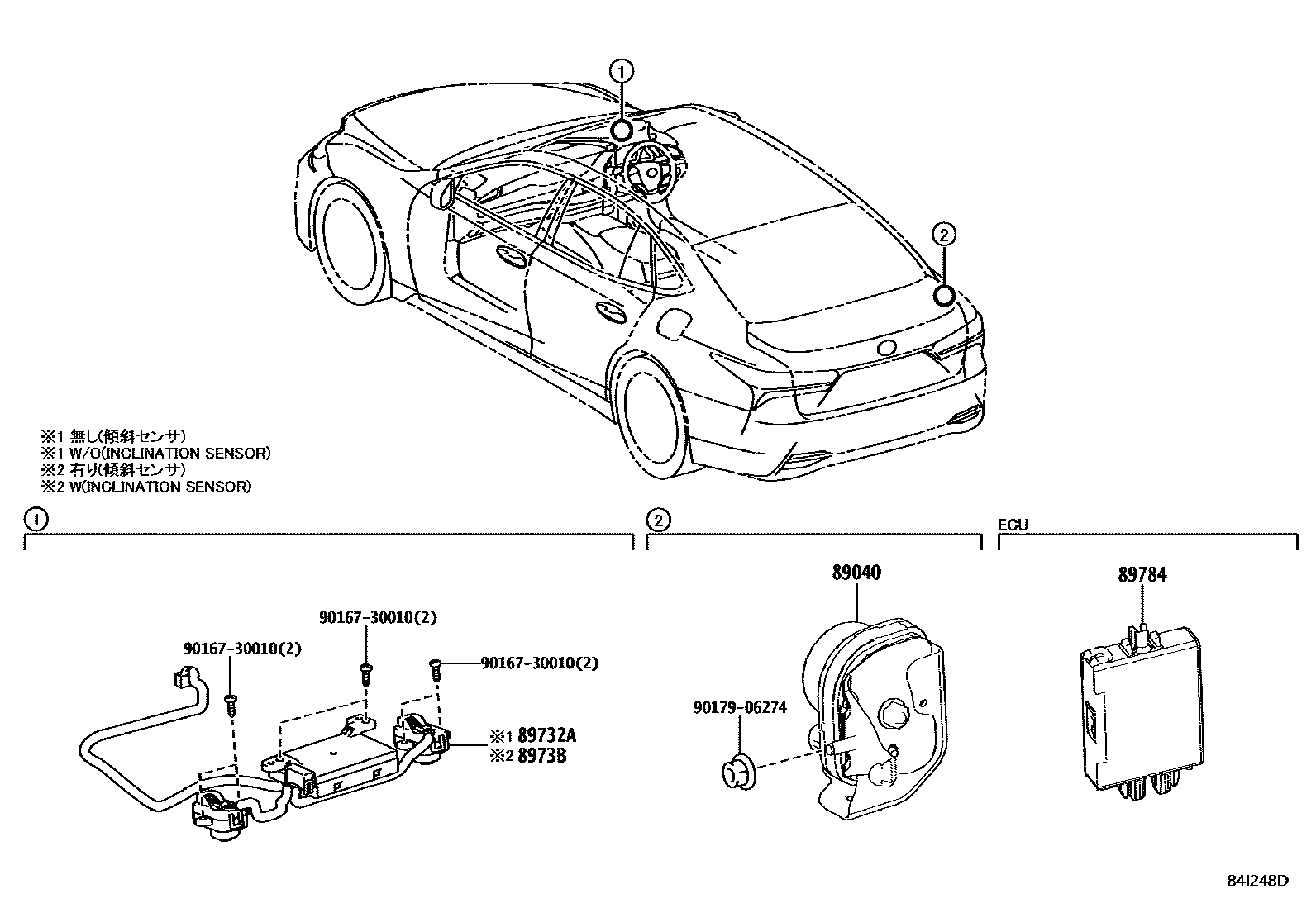

ANTI-THEFT DEVICE

0001 1 0002 1

89040SIREN ASSY, THEFT WARNING

main89040-50070iGVF5#,VXFA5#202010

89732ASENSOR, THEFT WARNING ULTRASONIC

main89732-50090iGVF5#,VXFA5#201710-202010

main89732-50100iGVF5#,VXFA5#202310

8973BSENSOR, THEFT WARNING ULTRASONIC & TILT

main8973B-40010iGVF5#,VXFA5#202310

main8973B-50010iGVF5#,VXFA5#202010-202310

89784COMPUTER, IMMOBILIZER CODE

main89784-12040iGVF5#202111-202210

main89784-33020iGVF5#,VXFA5#201710-202010

main89784-42060iGVF5#202210-202310

main89784-48060iGVF5#,VXFA5#202310-202410

main89784-60190iVXFA5#202210-202310

main89784-60220iGVF5#,VXFA5#202411

main89784-K0021iGVF5#202010-202110

9016730010

main90167-30010

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
