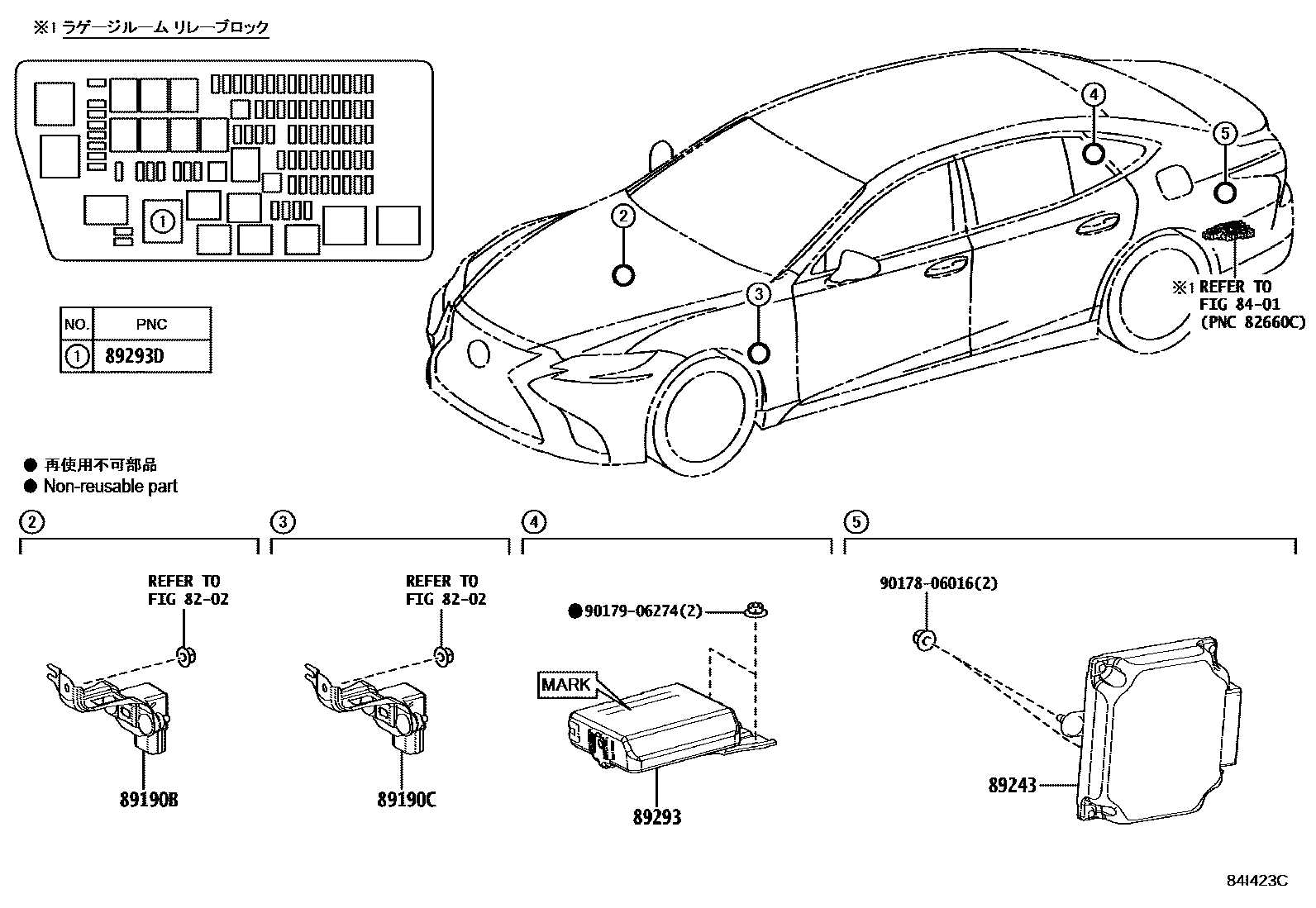

ELECTRONIC MODULATED SUSPENSION

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89190BSENSOR ASSY, ACCELERATION, RH

main89190-50030iVXFA5#201710-202008

89190CSENSOR ASSY, ACCELERATION, LH

main89190-50030iVXFA5#201710-202008

89243COMPUTER, ABSORBER CONTROL

main89243-50040supersedes 89243-50030iGVF50,VXFA50; GVF55,VXFA55201710-201809

main89243-50050supersedes 89243-50060iGVF50,VXFA50; GVF55,VXFA55201809-201909

main89243-50051supersedes 89243-50061iGVF50; GVF55201909-202010

main89243-50120iGVF5#,VXFA5#202310-202411

main89243-50070supersedes 89243-50121iGVF5#,VXFA5#202010-202210

main89243-50100iGVF5#,VXFA5#202210-202310

main89243-50130iGVF55202310-202411

main89243-50131iGVF55202411-202510

89293COMPUTER, SUSPENSION CONTROL

main89293-50320iGVF5#,VXFA5#201710-201809

main89293-50340iGVF5#,VXFA5#201809-201812

main89293-50341iGVF5#,VXFA5#201812-202005

main89293-50360iVXFA5#202005-202008

main89293-50380iGVF5#,VXFA5#202310-202411

main89293-50381iGVF5#,VXFA5#202411

main89293-50430iGVF55202310-202411

main89293-50431iGVF55202411-202510

89293DRELAY, AIR SUSPENSION

main88263-21010iVXFA5#201710-202008

9017806016

main90178-06016

9017906274

main90179-06274

9 parts on this diagram · 1 diagram in section
