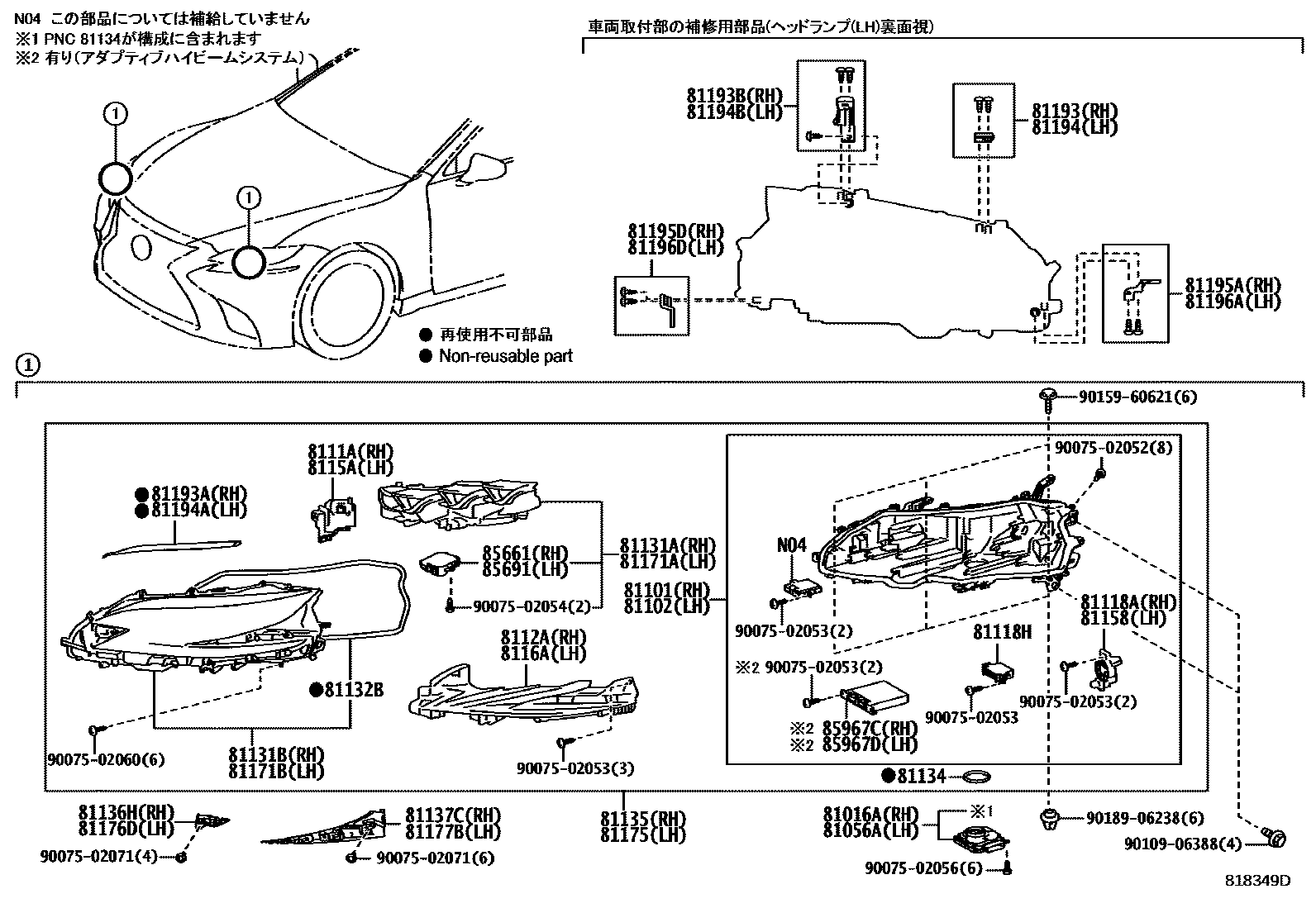

HEADLAMP
81016ACOMPUTER SUB-ASSY, HEADLAMP, RH
81056ACOMPUTER SUB-ASSY, HEADLAMP, LH
81101HOUSING SUB-ASSY, HEADLAMP, RH
81102HOUSING SUB-ASSY, HEADLAMP, LH
81118ABRACKET, HEADLAMP, RH
81118HBASE, HEADLAMP
8111AUNIT, HEADLAMP CORNERING LED, RH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81131AUNIT, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81134GASKET, HEADLAMP
81135UNIT ASSY, HEADLAMP, RH
81136HRIM, HEADLAMP FITTING, RH NO.1
81137CRIM, HEADLAMP FITTING, RH NO.2
81158BRACKET, HEADLAMP, LH
8115AUNIT, HEADLAMP CORNERING LED, LH
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81171AUNIT, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81175UNIT ASSY, HEADLAMP, LH
81176DRIM, HEADLAMP FITTING, LH NO.1
81177BRIM, HEADLAMP FITTING, LH NO.2
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193APROTECTOR, HEADLAMP, RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194APROTECTOR, HEADLAMP, LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2
85661MOTOR, HEADLAMP LEVELING, RH
85691MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502052
main90075-02052
9007502053
main90075-02053
9007502054
main90075-02054
9007502056
main90075-02056
9007502060
main90075-02060
9007502071
main90075-02071
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
46 parts on this diagram · 2 diagrams in section
