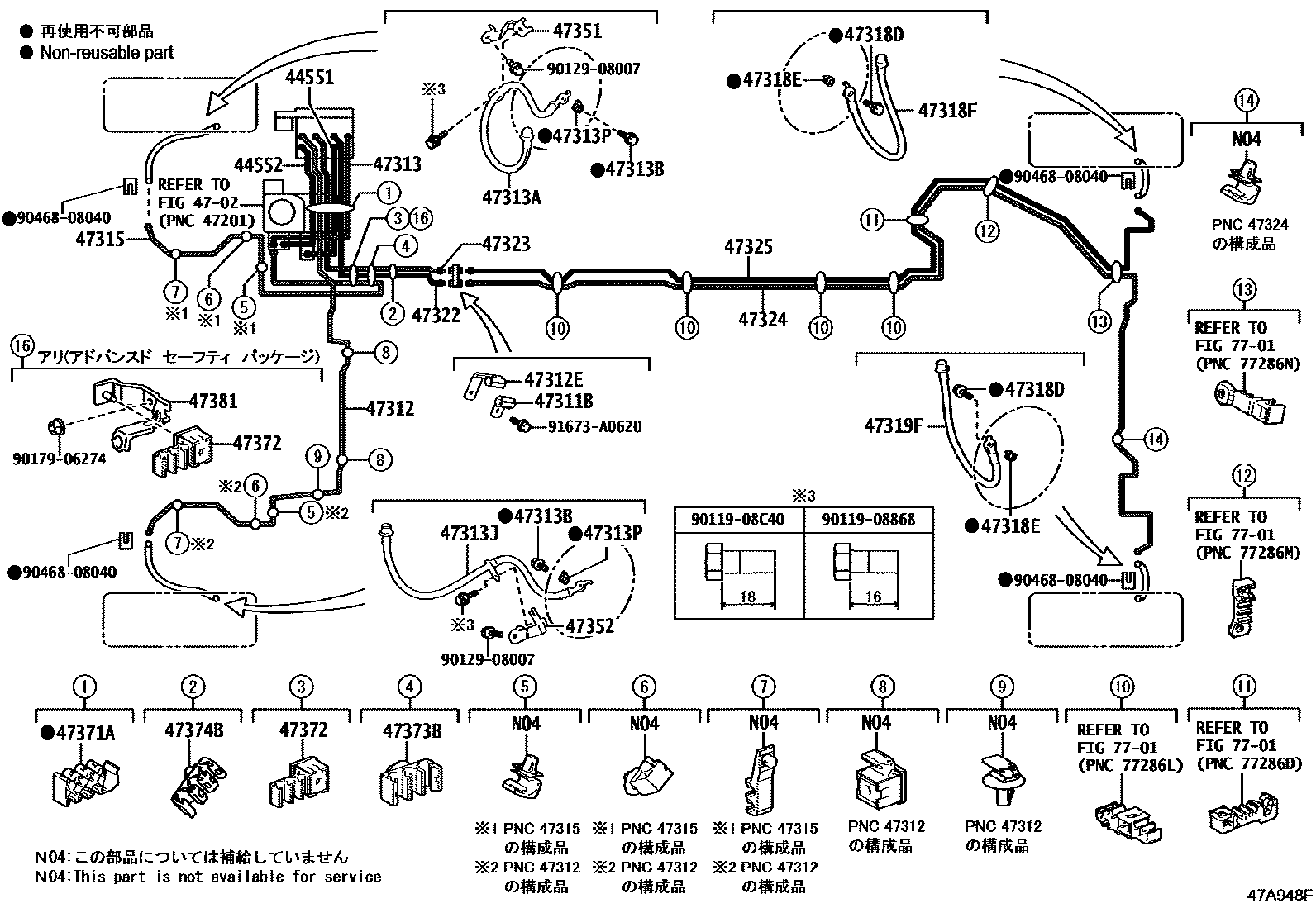

BRAKE TUBE & CLAMP

0001 1��(����������������),FIG47-020003 1 0004 1��(����������������),FIG47-020006 1 0007 1��(����������������).FIG47-020008 1��(����������������),FIG47-020009 1��(����������������),FIG47-020011 1 0012 1��(����������������),FIG47-02

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-50130iGVF5#201710-202010

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-50080iGVF5#201710-202010

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-50100iVXFA5#202310

main47311-50140iGVF5#202010

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10292iVXFA5#201710-202008

47312TUBE, FRONT BRAKE, NO.2

main47312-50290iVXFA50202310

main47312-50300iGVF50201710-202010

main47312-50350supersedes 47312-50290iVXFA50202010-202310

main47312-50360iVXFA55202310

main47312-50370iGVF55201710-202010

main47312-50380supersedes 47312-50360iVXFA55202010-202310

main47312-50410iGVF50202010

main47312-50420iGVF55202010

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10297iGVF5#,VXFA5#202010

47313TUBE, FRONT BRAKE, NO.3

main47313-50270iVXFA50201712-202008

main47313-50280iVXFA55202310

main47313-50290iGVF5#201710-202010

main47313-50390iGVF50202010

main47313-62010iGVF55202010

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H60iGVF50,VXFA50202010

main90947-02H75iGVF55201710-202010

main90947-02H62iGVF50201909-202010

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iVXFA5#201710-202008

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H61iVXFA50201710-202008

main90947-02H76iGVF55,VXFA55202010

main90947-02H67iGVF50201909-202010

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iVXFA5#201710-202008

47315TUBE, FRONT BRAKE, NO.5

main47315-50040iGVF55201710-202010

main47315-50050iGVF50201710-202010

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGVF5#201710-202010

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iVXFA5#201710-202008

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H68iVXFA5#201710-202008

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H68iVXFA5#201710-202008

47322TUBE, REAR BRAKE, NO.2

main47322-50320iVXFA50202310

main47322-50330iVXFA55202310

main47322-50340supersedes 47322-50320iGVF50201710-202010

main47322-50350supersedes 47322-50330iVXFA55202010-202310

main47322-50410iGVF50202010

main47322-50430iGVF55202010

47323TUBE, REAR BRAKE, NO.3

main47323-50180iVXFA50202310

main47323-50190iVXFA55202310

main47323-50200supersedes 47323-50180iVXFA50202010-202310

main47323-50210supersedes 47323-50190iVXFA55202010-202310

main47323-50270iGVF50202010

main47323-50290iGVF55202010

47324TUBE, REAR BRAKE, NO.4

main47324-50200iVXFA5#201710-202008

47325TUBE, REAR BRAKE, NO.5

main47325-50160iVXFA5#201710-202008

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-11040iGVF50,VXFA50202010

main47351-50030iGVF55201710-202010

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-11020iVXFA50201710-202008

main47352-50030iVXFA55201710-202008

47371ACLAMP, BRAKE TUBE, NO.1

main47371-11010supersedes 90949-01E56iVXFA5#202010-202310

main90949-01E56iVXFA5#202310

47372CLAMP, BRAKE TUBE, NO.2

main47371-62040iGVF5#202010

main90949-01D21iVXFA5#201710-202008

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D41iVXFA5#201710-202008

47374BCLAMP, BRAKE TUBE, NO.4

main47371-50220iVXFA5#201710-202008

47381BRACKET, BRAKE TUBE CLAMP NO.1

main77281-11040iVXFA5#201712-202008

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9011908C40

main90119-08C40

9012908007

main90129-08007

9017906274

main90179-06274

9046808040

main90468-08040

91673A0620

main91673-A0620

35 parts on this diagram · 9 diagrams in section
