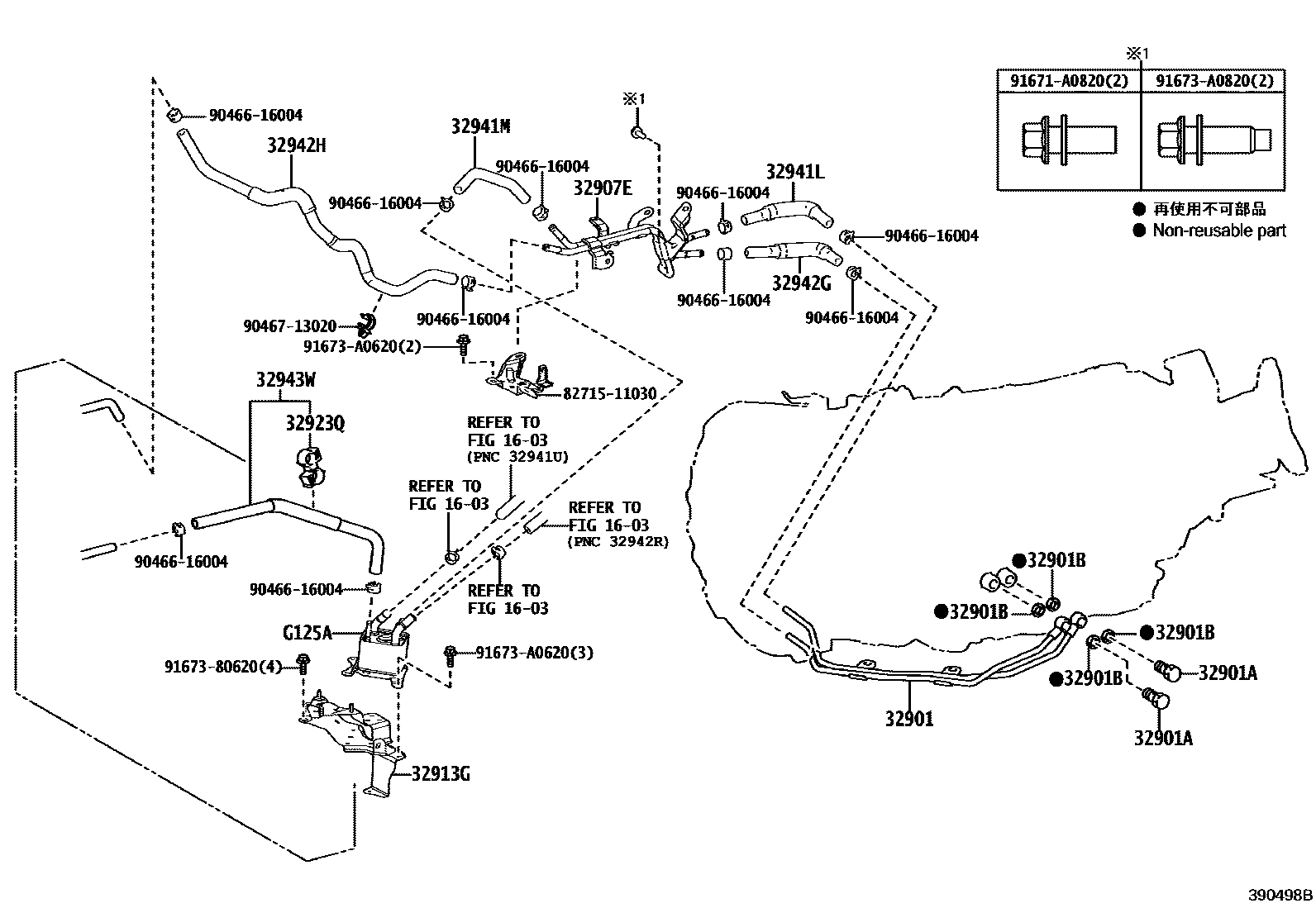

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32901UNION SUB-ASSY, OIL COOLER

main32901-11010iGVF5#202010

32901ABOLT, UNION(FOR OIL COOLER)

main90401-14003×2iGVF5#201710-202010

32901BGASKET(FOR OIL COOLER UNION)

main90430-14013×4iGVF5#202010

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-11010iGVF5#201710-202010

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-11010iGVF50201710-202010

main32913-50020iGVF55201710-202010

32923QCLAMP, OIL COOLER TUBE

main32923-50110iGVF5#201710-202010

32941LHOSE, OIL COOLER INLET, NO.1

main32941-11010iGVF5#201710-202010

32941MHOSE, OIL COOLER INLET, NO.2

main32941-11020iGVF50201710-202010

main32941-50080iGVF55201710-202010

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-11010iGVF5#202010

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-50080iGVF50202010

main32942-50100iGVF55202010

32943WHOSE, TRANSMISSION OIL COOLER

main32943-50030iGVF50202010

main32943-50040iGVF55201710-202010

G125ACOOLER, MOTOR COOLING

mainG125A11010iGVF50201710-202010

mainG125A50010iGVF55201710-202010

8271511030BRACKET,WIRING HARNESS CLAMP

main82715-11030

9046616004

main90466-16004

9046713020

main90467-13020

91671A0820

main91671-A0820

9167380620

main91673-80620

91673A0620

main91673-A0620

91673A0820

main91673-A0820

20 parts on this diagram · 2 diagrams in section
