CLEARANCE & BACK SONAR

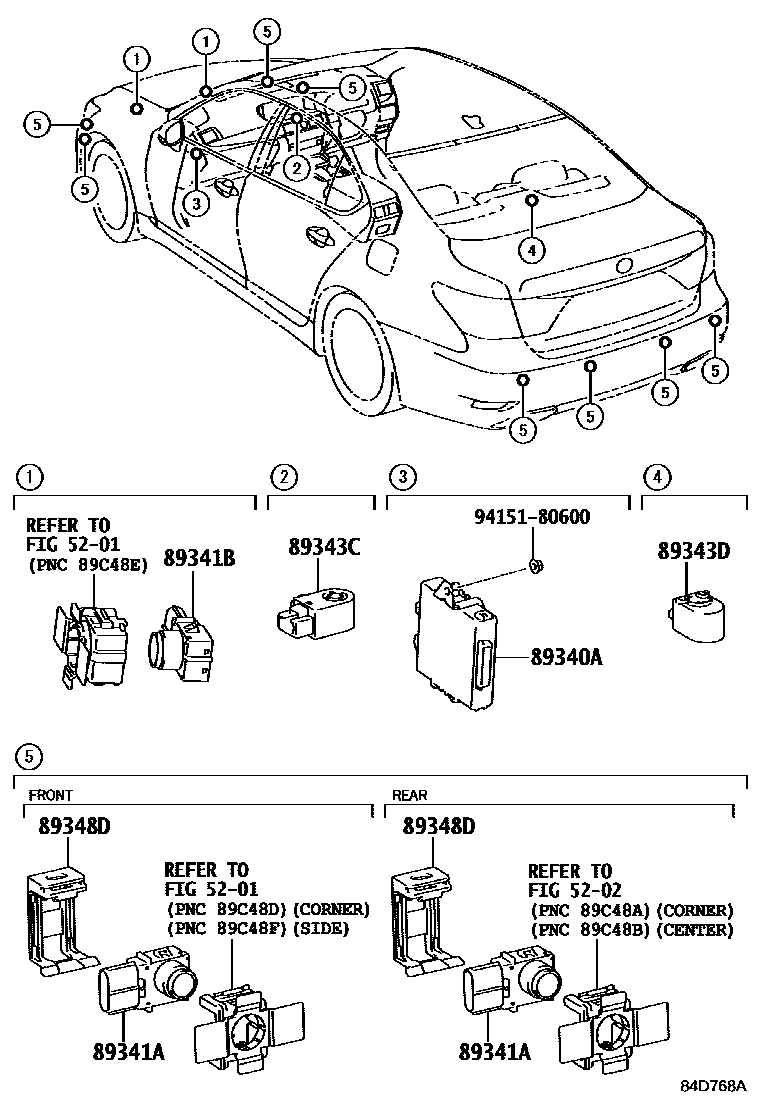

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-50060i201209-201410

main89340-50080i201410

89341ASENSOR, ULTRASONIC, NO.1

main89341-50060-A2×8i201209-201509

WHITE PEARL CS.,077

main89341-50060-A4×8i201509-201708

SONIC QUARTZ,085

main89341-50060-B3×8i201209-201708

MERCURY GRAY MC.,1H9

main89341-50060-B5×8i201209-201708

SONIC SILVER,1J2

main89341-50060-B7×8i201309-201708

SONIC TITANIUM,1J7

main89341-50060-C0×8i201209-201708

BLACK,212

main89341-50060-C1×8i201209-201609

BLACK OPAL MC.,214

main89341-50060-C2×8i201209-201609

STARLIGHT BLACK GF.,217

main89341-50060-C4×8i201609-201708

GRAPHITE BLACK GF.,223

main89341-50060-D2×8i201209-201708

RED MC.CS.,3R1

main89341-50060-E2×8i201209-201708

SLEEK ECRU ME.,4U7

main89341-50060-E3×8i201209-201609

FIRE AGATE M.M.,4V3

main89341-50060-E4×8i201609-201708

AMBER CS.,4X2

main89341-50060-J1×8i201209-201309

LAPIS LAZULI MC.,8V3

main89341-50060-J3×8i201609-201708

DEEP BLUE MC.,8X5

main89341-50060-A3×8i201210-201708

89341BSENSOR, ULTRASONIC, NO.2

main89341-50060-B6×2i201209-201708

GRAY METALLIC,077 ,085 ,1H9 ,1J2 ,1J7 ,212 ,214 ,217 ,223 ,3R1 ,4U7 ,4V3 ,4X2 ,8V3,8X5

main89341-50060-C3×2i201412-201509

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-50050i201209

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-48020i201209

89348DCLIP, ULTRASONIC SENSOR

main89348-50040×8i201209-201708

9415180600

main94151-80600
