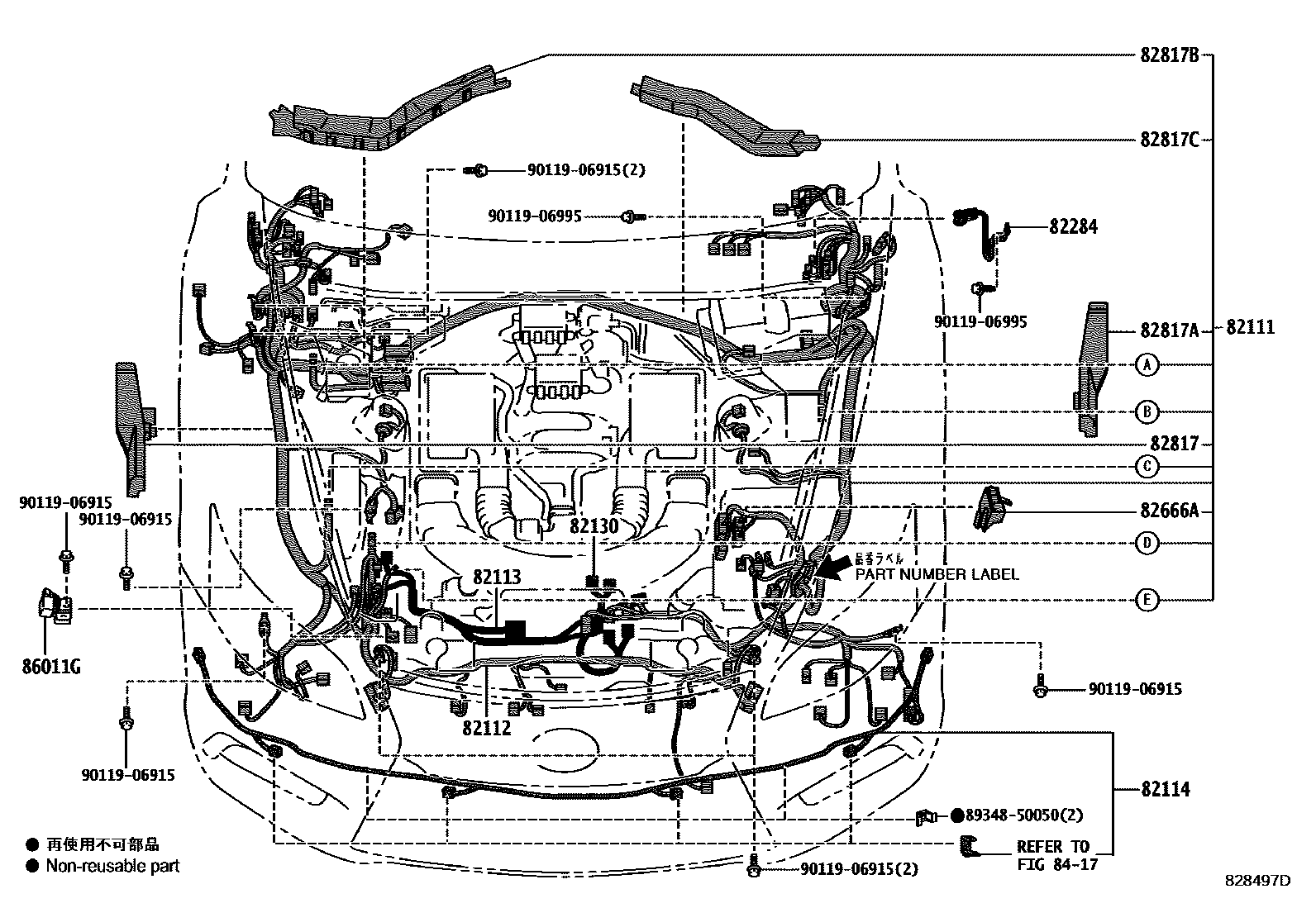

WIRING & CLAMP

0001 1����� ��� 1/2 0002 1����� ��� 2/2 0003 1����� 0004 1����� 0005 1�������� ���� 0006 1��� 0007 1��� 0008 1��� & ���� & ������ 0009 1���� ��� 0010 1�� ��� 0011 1����� & ������ 0012 1����� ����� 0013 1���� 1/4 0014 1���� 2/4 0015 1���� 3/4 0016 1���� 4/4

82111WIRE, ENGINE ROOM MAIN

main82111-50R30supersedes 82111-50R40iUSF45; USF46201209-201301

main82111-50R31supersedes 82111-50R41iUSF45; USF46201301-201309

main82111-50R32supersedes 82111-50R42iUSF45; USF46201309-201410

main82111-50R33supersedes 82111-50R43iUSF45; USF46201410-201708

main82111-50S50supersedes 82111-50R20iUSF40; USF41201209-201301

main82111-50S51supersedes 82111-50R21iUSF40; USF41201301-201309

main82111-50S52supersedes 82111-50R22iUSF40; USF41201309-201410

main82111-50S53supersedes 82111-50R23iUSF40; USF41201410-201708

82112WIRE, ENGINE ROOM, NO.2

main82112-50510supersedes 82112-50500iUSF40,41201209

main82112-50530supersedes 82112-50520iUSF45,46201209

82113WIRE, ENGINE ROOM, NO.3

main82113-50040iUSF40,41201209

main82113-50080iUSF45,46201209

82114WIRE, ENGINE ROOM, NO.4

main82114-50050iUSF4#201209-201708

main82114-50060iUSF40201210-201708

82130HARNESS ASSY, CHASSIS WIRE

main82130-50020iUSF40,41201209

main82130-50040iUSF45,46201209

82284WIRE, EARTH

main82280-50020iUSF4#201209-201708

82666AHOLDER, CONNECTOR NO.2

main82666-50570iUSF4#201209

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-50B30iUSF4#201209

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-50D40iUSF4#201209

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-50E70iUSF4#201209-201708

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-50C20iUSF4#201209

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

86011GCONDENSER

main86516-50010iUSF4#201209

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050

9011906915

main90119-06915

9011906995

main90119-06995

16 parts on this diagram · 16 diagrams in section
