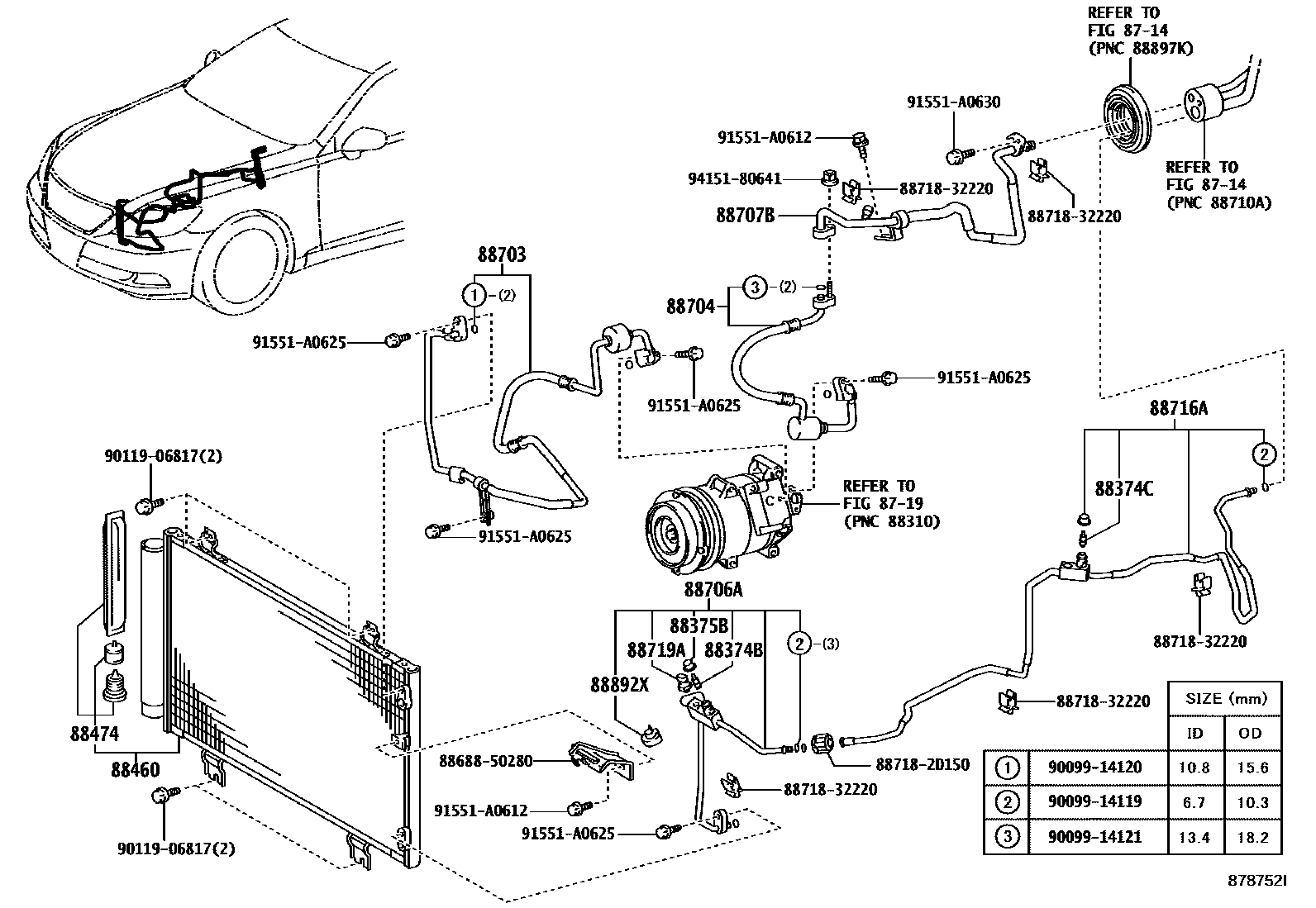

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1����:��(�� ���) 0003 1���� 0004 1����:��(�� ���) 0005 1�� 0006 1�� 0007 1��

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iUSF4#200809-200909

88374CVALVE, SERVICE, NO.2

main88374-30010iUSF40200608-200809

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iUSF40200608-200809

88460CONDENSER ASSY, COOLER

main88460-50200iUSF40200608-200702

main88460-50201iUSF40200703-200809

main88460-50240iUSF45,46200909-201209

88474DRYER, COOLER

main88474-17010iUSF4#200809-200909

88703HOSE SUB-ASSY, DISCHARGE

main88703-50010iUSF40,41200909

main88703-50050iUSF45,46200909

88704HOSE SUB-ASSY, SUCTION

main88704-50010iUSF40,41200809-200909

main88704-50030iUSF45,46200909

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50010iUSF40200608-200809

main88706-50050iUSF45,46200909

88707BTUBE SUB-ASSY, SUCTION, B

main88707-50010iUSF40,45200809-200909

main88707-50020supersedes 88707-50010iUSF40; USF41200809-200909

main88707-50030iUSF45; USF46200809-200909

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50530iUSF40,45200809-200909

main88716-50540supersedes 88716-50530iUSF40; USF41200809-200909

main88716-50600iUSF45; USF46200809-200909

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iUSF4#200809-200909

88892XCOVER, COOLER, NO.2

main88892-50120iUSF40200608-200809

8868850280BRACKET, COOLER DIAPHRAGM

main88688-50280

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

25 parts on this diagram · 7 diagrams in section
