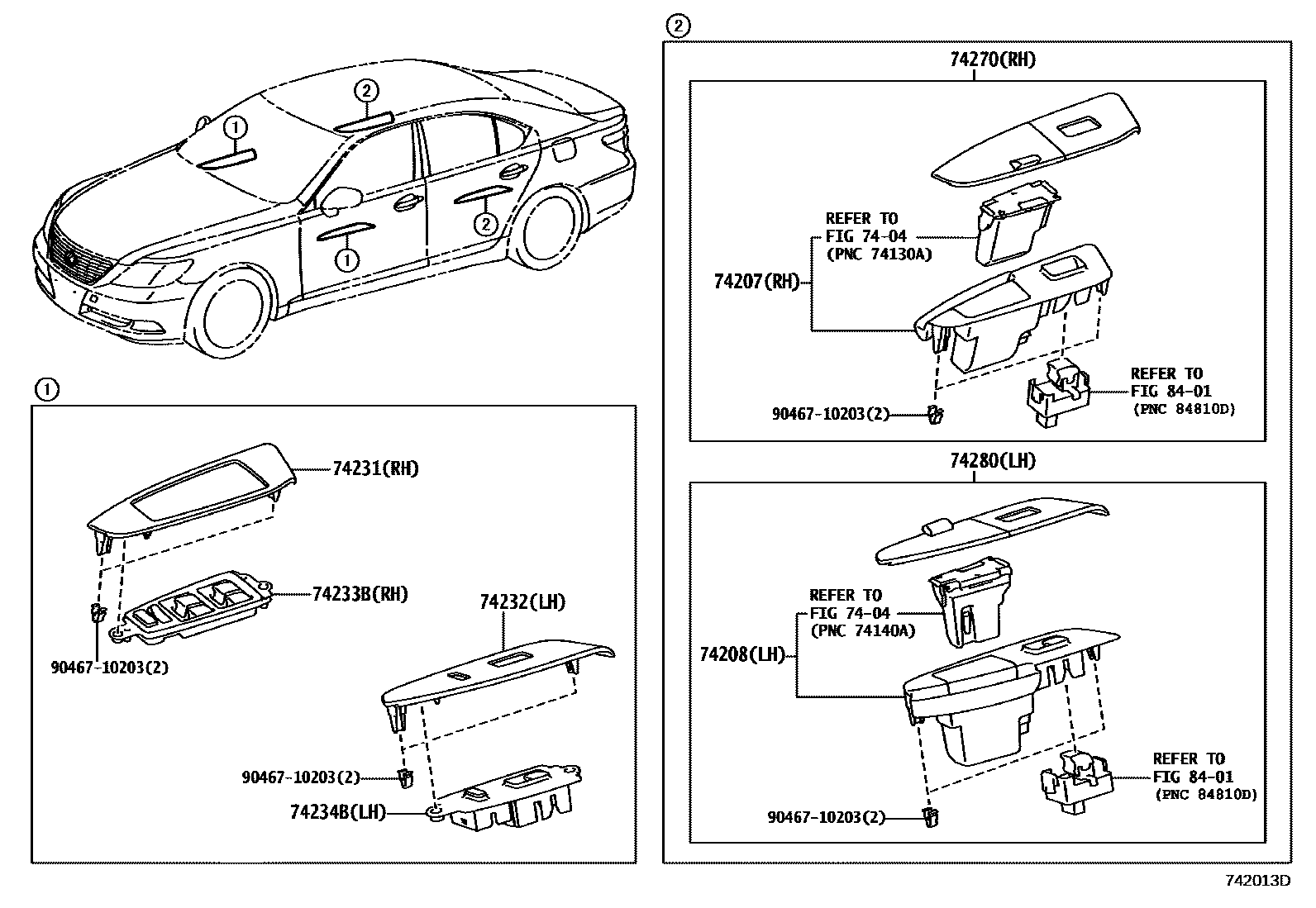

ARMREST & VISOR

0001 1������ 0002 1����� & ����������

7404ASH RECEPTACLE

→ Go to FIG 74-04

74207PANEL SUB-ASSY, REAR ARMREST BASE, LOWER RH

main74207-50010iUSF40200608-200809

main74207-50020iUSF4#200909

74208PANEL SUB-ASSY, REAR ARMREST BASE, LOWER LH

main74208-50010iUSF40200608-200809

main74208-50020iUSF4#200909

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-50180-B0iUSF40200608-200809

main74231-50180-E0iUSF40200608-200809

main74231-50180-E1iUSF40200608-200809

main74231-50181-B0iUSF40; USF41,46; USF45200909-201209

main74231-50181-E1iUSF40,45; USF41,46200909-201209

main74231-50181-E2iUSF40; USF41,46; USF45200909-201209

main74231-50190-E0iUSF4#200911-201209

main74231-50200-E0iUSF4#200911-201209

main74231-50210-E0iUSF4#200911-201209

main74231-50220-B0iUSF4#200911-201209

main74231-50230-B0iUSF4#200911-201209

main74231-50240-E0iUSF4#200911-201209

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-50120-B0iUSF40200608-200809

main74232-50120-E0iUSF40200608-200809

main74232-50120-E1iUSF40200608-200809

main74232-50121-B0iUSF40; USF41,46; USF45200909-201209

main74232-50121-E1iUSF40,45; USF41,46200909-201209

main74232-50121-E2iUSF40; USF41,46; USF45200909-201209

main74232-50130-E0iUSF4#200911-201209

main74232-50140-E0iUSF4#200911-201209

main74232-50150-E0iUSF4#200911-201209

main74232-50160-B0iUSF4#200911-201209

main74232-50170-B0iUSF4#200911-201209

main74232-50180-E0iUSF4#200911-201209

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-50060iUSF40200608-200809

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-50060iUSF40200608-200809

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-50090-B0iUSF4#200809-200909

GRAY,TRIM06,10,21

main74270-50090-E0iUSF40200608-200809

DK.BROWN,TRIM01

main74270-50090-E1iUSF4#200809-200909

BROWN,TRIM00,07,11,20

main74270-50091-B0supersedes 74270-50121-B0iUSF40; USF41,46; USF45200909-201209

main74270-50091-E1supersedes 74270-50121-E1iUSF40,45; USF41,46200909-201209

main74270-50091-E2supersedes 74270-50121-E2iUSF40; USF41,46; USF45200909-201209

main74270-50121-B0iUSF40; USF41,46; USF45200909-201209

main74270-50121-E1iUSF40,45; USF41,46200909-201209

main74270-50121-E2iUSF40; USF41,46; USF45200909-201209

main74270-50130-E0iUSF4#200911-201209

main74270-50140-E0iUSF4#200911-201209

main74270-50150-E0iUSF4#200911-201209

main74270-50160-E0iUSF4#200911-201209

main74270-50170-E0iUSF4#200911-201209

main74270-50180-E0iUSF4#200911-201209

main74270-50190-B0iUSF4#200911-201209

main74270-50200-B0iUSF4#200911-201209

main74270-50210-B0iUSF4#200911-201209

main74270-50220-B0iUSF4#200911-201209

main74270-50230-E0iUSF4#200911-201209

main74270-50240-E0iUSF4#200911-201209

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-50090-B0iUSF4#200809-200909

GRAY,TRIM06,10,21

main74280-50090-E0iUSF4#200809-200909

DK.BROWN,TRIM01

main74280-50090-E1iUSF40200608-200809

BROWN,TRIM00,07,11,20

main74280-50091-B0supersedes 74280-50121-B0iUSF40; USF41,46; USF45200909-201209

main74280-50091-E1iUSF40,45; USF41,46200909-201209

main74280-50091-E2supersedes 74280-50121-E2iUSF40; USF41,46; USF45200909-201209

main74280-50121-B0iUSF40; USF41,46; USF45200909-201209

main74280-50121-E1iUSF40,45; USF41,46200909-201209

main74280-50121-E2iUSF40; USF41,46; USF45200909-201209

main74280-50130-E0iUSF4#200911-201209

main74280-50140-E0iUSF4#200911-201209

main74280-50150-E0iUSF4#200911-201209

main74280-50160-E0iUSF4#200911-201209

main74280-50170-E0iUSF4#200911-201209

main74280-50180-E0iUSF4#200911-201209

main74280-50190-B0iUSF4#200911-201209

main74280-50200-B0iUSF4#200911-201209

main74280-50210-B0iUSF4#200911-201209

main74280-50220-B0iUSF4#200911-201209

main74280-50230-E0iUSF4#200911-201209

main74280-50240-E0iUSF4#200911-201209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9046710203

main90467-10203

11 parts on this diagram · 2 diagrams in section
