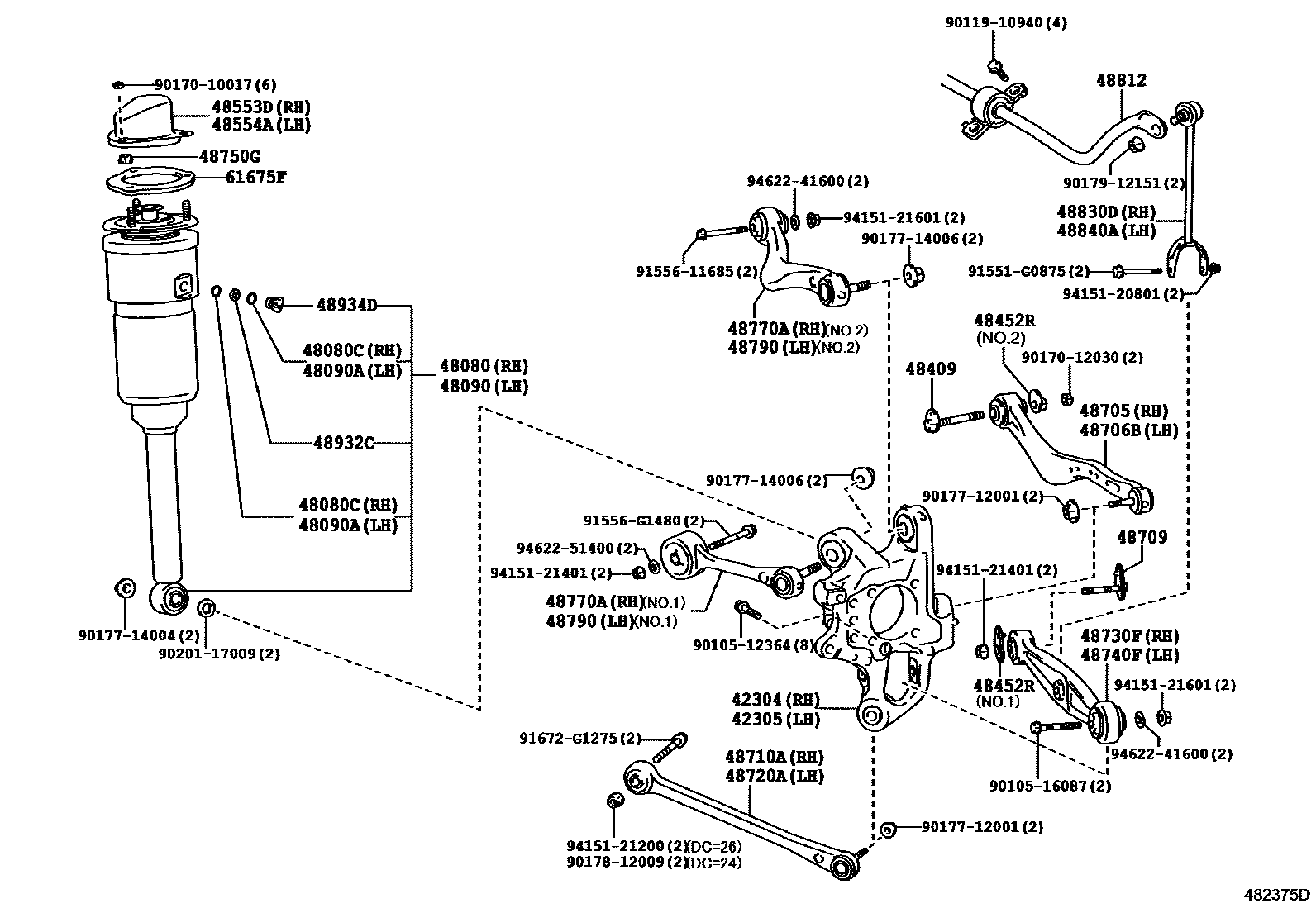

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-50100iUSF4#200809-200909

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-50100iUSF40200608-200809

48080CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER

main48080-50152iUSF40,41200809-200909

main48080-50240iUSF45,46200809-200909

main48080-50270iUSF45,46200909-201102

main48080-50271iUSF45,46201103-201209

main48080-50310iUSF40,41200909-201102

main48080-50311iUSF40,41201103-201209

main48080-50160iUSF40200608-200708

main48080-50161iUSF40200708-200712

main48080-50163supersedes 48080-50152iUSF40200712-200809

main48080-50260supersedes 48080-50152iUSF40200909-201102

main48080-50261supersedes 48080-50152iUSF40201103-201209

48080CRING, O(FOR REAR PNEUMATIC CYLINDER RH)

main90301-04011×2iUSF40200608-200809

48090CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER

main48090-50152iUSF40,41200809-200909

main48090-50240iUSF45,46200809-200909

main48090-50270iUSF45,46200909-201102

main48090-50271iUSF45,46201103-201209

main48090-50310iUSF40,41200909-201102

main48090-50311iUSF40,41201103-201209

main48090-50160iUSF40200608-200708

main48090-50161iUSF40200708-200712

main48090-50163supersedes 48090-50152iUSF40200712-200809

main48090-50260supersedes 48090-50152iUSF40200909-201102

main48090-50261supersedes 48090-50152iUSF40201103-201209

48090ARING, O(FOR REAR PNEUMATIC CYLINDER LH)

main90301-04011×2iUSF4#200909

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-50020×2iUSF4#200909

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-50010×2iUSF4#200809-200909

main48452-50020×2iUSF4#200809-200909

main48452-50030×2iUSF4#200809-200909

main48452-50040×2iUSF40200608-200809

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-50051iUSF40200608-200609

main48553-50052iUSF40200610-200809

main48553-50053iUSF4#201011-201112

main48553-50054iUSF4#201201

48554ACAP, REAR SHOCK ABSORBER, LH

main48554-50061iUSF40200608-200609

main48554-50062iUSF40200610-200809

main48554-50063iUSF4#201011-201112

main48554-50064iUSF4#201201

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-50030iUSF40200608-200809

main48705-50050iUSF41,46200909

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-50020iUSF40200608-200809

main48706-50040iUSF41,46200909

48709ATTACHMENT SUB-ASSY, REAR SUSPENSION ARM

main48709-50040×2iUSF40200608-200809

main48709-50050×2iUSF40200608-200809

main48709-50060×2iUSF40200608-200809

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-50080iUSF40200608-200809

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-50080iUSF40200608-200809

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-50110iUSF40200608-200702

main48730-50111iUSF40200703-200809

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-50110iUSF40200608-200702

main48730-50111iUSF40200703-200809

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-10088×6iUSF40200608-200809

48770AARM ASSY, UPPER CONTROL, REAR RH

main48710-50090iUSF40200608-200809

main48710-50100iUSF41; USF45,46200909-201209

main48770-50060iUSF4#200809-200909

48790ARM ASSY, UPPER CONTROL, REAR LH

main48710-50090iUSF40200608-200809

main48710-50100iUSF45,46200809-200909

main48790-50080iUSF40200608-200809

48812BAR, STABILIZER, REAR

main48805-50010iUSF45,46200909

main48805-50020iUSF40,41200909

main48805-50040supersedes 48805-50020iUSF40200909

48830DLINK ASSY, REAR STABILIZER, RH

main48830-50040iUSF40200608-200809

48840ALINK ASSY, REAR STABILIZER, LH

main48840-50020iUSF40200608-200809

48932CPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUSF40200608-200809

48934DCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUSF40200608-200809

61675FREINFORCEMENT, REAR SUSPENSION SPRING SUPPORT

main61675-50030×2iUSF40200608-200809

9010512364

main90105-12364

9010516087

main90105-16087

9011910940

main90119-10940

9017010017

main90170-10017

9017012030

main90170-12030

9017712001

main90177-12001

9017714004

main90177-14004

9017714006

main90177-14006

9017812009

main90178-12009

9017912151

main90179-12151

9020117009

main90201-17009

91551G0875

main91551-G0875

9155611685

main91556-11685

91556G1480

main91556-G1480

91672G1275

main91672-G1275

9415120801

main94151-20801

9415121200

main94151-21200

9415121401

main94151-21401

9415121601

main94151-21601

9462241600

main94622-41600

9462251400

main94622-51400

47 parts on this diagram · 1 diagram in section
