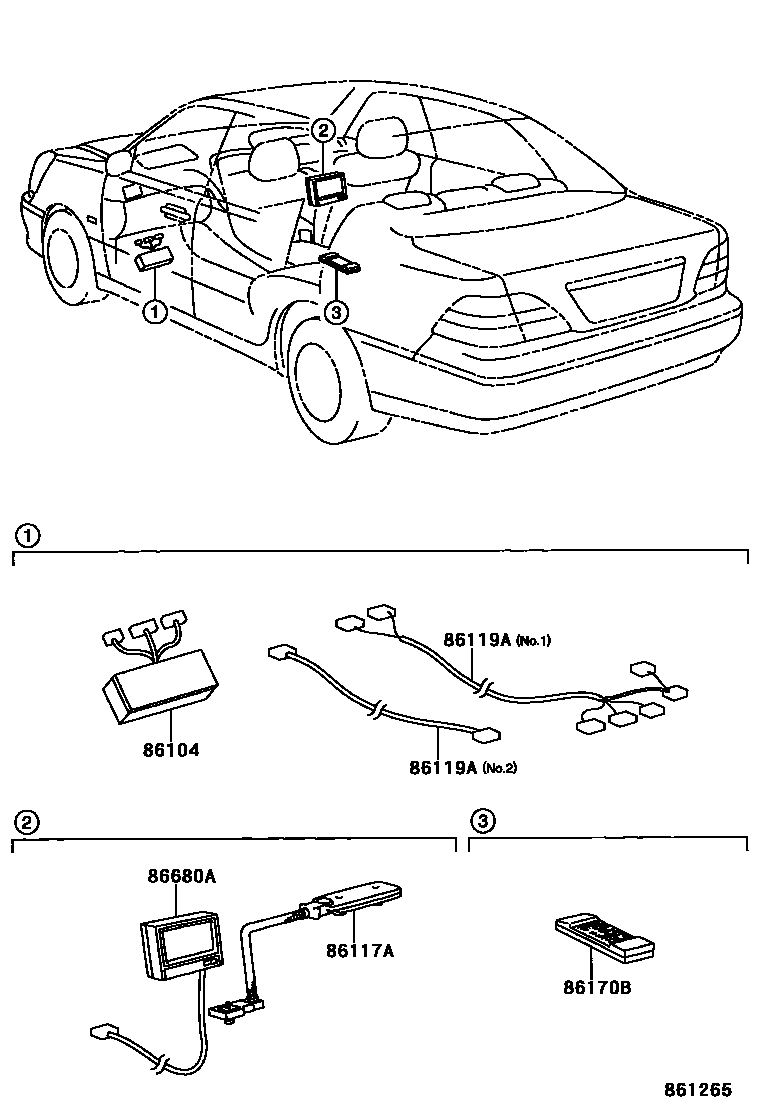

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

86104CONTROLLER SUB-ASSY, MULTI-DISPLAY

main86104-50010iUCF3#200307

86117ABRACKET, TELEVISION DISPLAY, A

main86117-50041iUCF3#200011-200205

86119AWIRE, TELEVISION SWITCH

main86119-50090iUCF31200008-200011

main86119-50130iUCF3#200307

main86119-50150iUCF3#200307

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-50120iUCF31200008-200011

main86170-50140iUCF3#200307

86680ADISPLAY ASSY, TELEVISION

main86680-50040iUCF31200008-200011

main86680-50060iUCF3#200307

5 parts on this diagram · 2 diagrams in section
