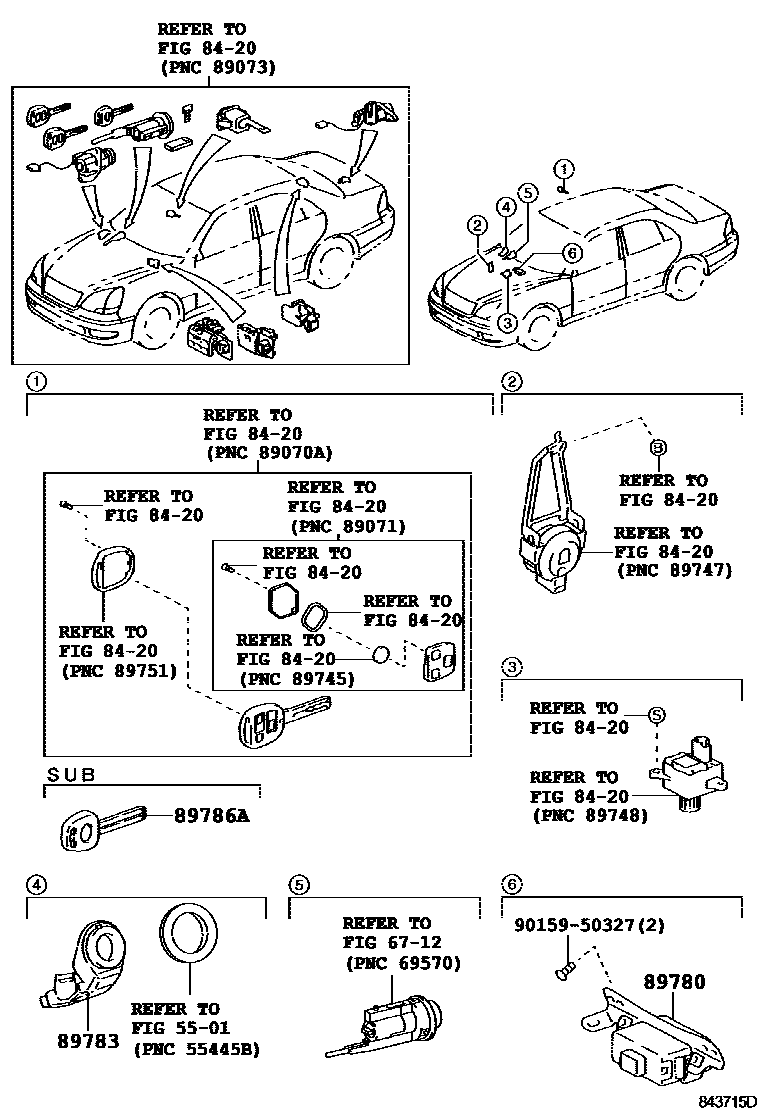

ANTI-THEFT DEVICE

0001 1�������� 0002 1��-� �- ���� & �������� 0003 1�������� 0004 1��-� �- ���� & �������� 0005 1��� �-���� ����

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

6712LOCK CYLINDER SET

→ Go to FIG 67-12

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-50030iUCF3#200008-200208

main89780-50031iUCF3#200208-200307

main89780-50050iUCF30..A200307

89783AMPLIFIER, TRANSPONDER KEY

main89783-50070iUCF3#200008-200204

main89783-50071iUCF3#200204-200307

main89783-50080iUCF3#..B,C200008-200204

main89783-50081iUCF3#..B,C200204-200307

main89783-50082iUCF3#..B,C200307-200608

main89783-50090iUCF30..A200307-200608

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50120iUCF3#200008-200307

main89786-50180iUCF30..A200307

9015950327

main90159-50327

7 parts on this diagram · 5 diagrams in section
