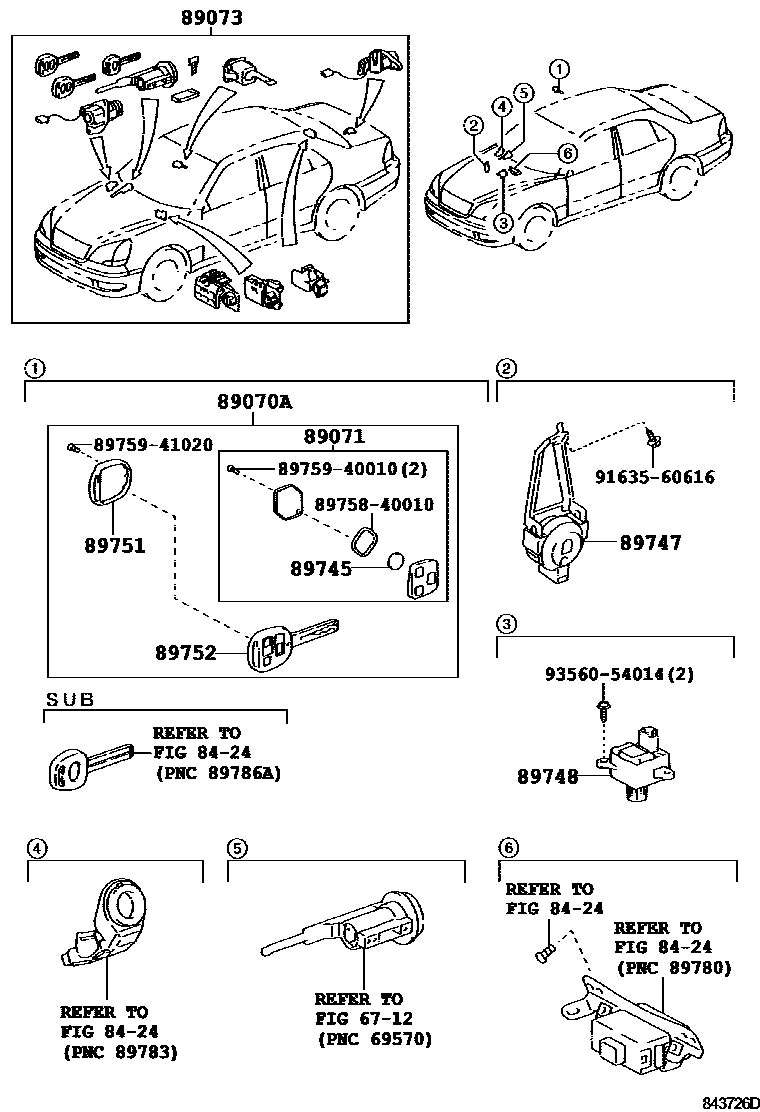

WIRELESS DOOR LOCK

0001 1 0002 1��-� �- ���� 0003 1��-� �- ���� 0004 1 0005 1��-� �- ���� 0006 1��-� �- ����

6712LOCK CYLINDER SET

→ Go to FIG 67-12

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070ATRANSMITTER, DOOR CONTROL (CUT KEY)

main89070-50850iUCF3#200008-200103

main89070-50A50iUCF30..A200307-200511

main89070-50A51iUCF30..A200512

main89070-5A160iUCF3#200103-200307

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-50220iUCF3#200008-200103

main89071-50370iUCF3#200103-200307

main89071-50410iUCF30..A200307

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main69005-50200iUCF30..A200307-200604

main69005-50201iUCF30..A200605

main69005-50380iUCF30..A200307-200604

main69005-50381iUCF30..A200605

main89076-50030iUCF3#200008-200307

main89076-50040iUCF3#200008-200307

89745BATTERY, TRANSMITTER

main89745-40010×2iUCF3#200008-200307

main89745-48030×2iUCF30..A200307

main89745-50020×3iUCF3#..B,C200008-200307

89747BUZZER, WIRELESS DOOR LOCK

main89747-50050iUCF3#200008-200307

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-50010iUCF3#200008-200307

89751COVER, TRANSMITTER HOUSING

main89751-50010×2iUCF3#200008-200307

main89751-50140×2iUCF30..A200307-200511

main89751-50141×2iUCF30..A200512

89752CASE, TRANSMITTER HOUSING

main89752-33080iUCF3#200008-200307

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9163560616

main91635-60616

9356054014

main93560-54014
