HEADLAMP

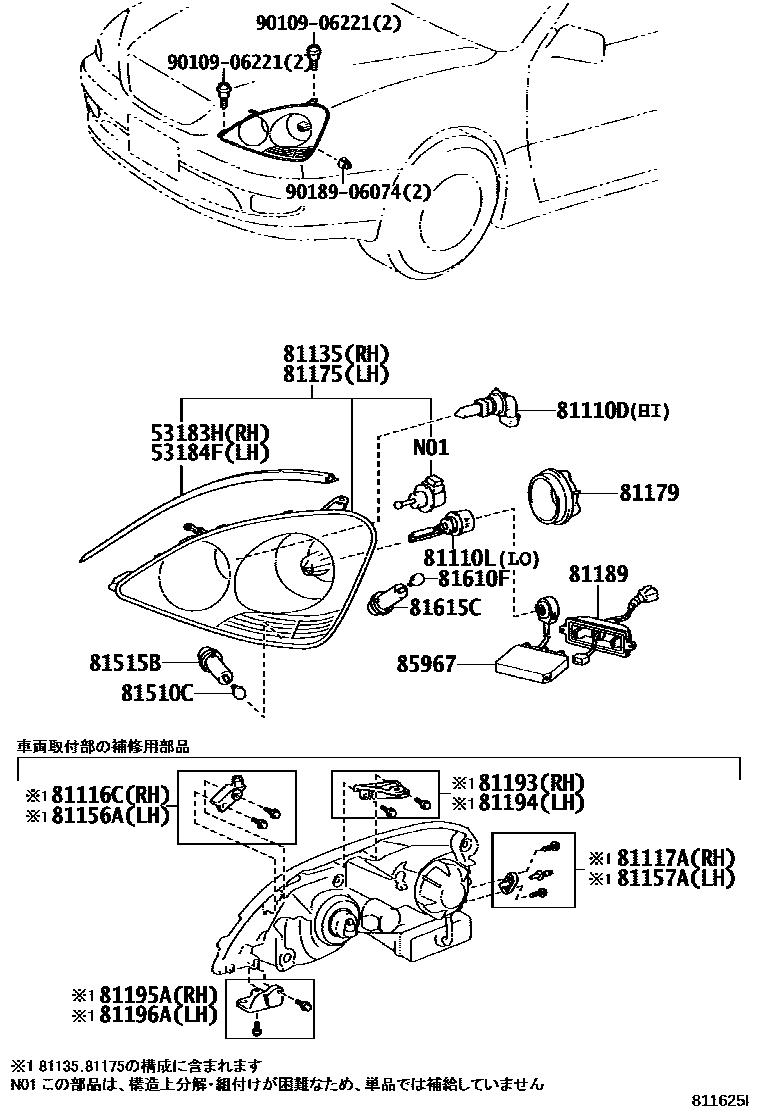

Parts diagram

53183HSEAL, HEADLAMP COVER, RH

main53183-50040i200008-200307

main53183-50050i200307

53184FSEAL, HEADLAMP COVER, LH

main53184-50040i200008-200307

main53184-50050i200307

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2i200008-200307

81110LBULB, DISCHARGE HEADLAMP

main90981-20008×2i200008-200307

main90981-20010×2i200307

81116CBRACKET, HEADLAMP, RH

main81116-50010i200008-200307

81117ABRACKET, HEADLAMP, RH

main81117-50010i200008-200307

81135UNIT ASSY, HEADLAMP, RH

main81130-50230i200008-200107

main81130-50231i200108-200307

main81130-50260i200307-200311

main81130-50261i200312

81156ABRACKET, HEADLAMP, LH

main81156-50010i200008-200307

81157ABRACKET, HEADLAMP, LH

main81117-50010i200008-200307

81175UNIT ASSY, HEADLAMP, LH

main81170-50230i200008-200107

main81170-50231i200108-200307

main81170-50260i200307-200311

main81170-50261i200312

81179COVER, HEADLAMP SOCKET

main81179-50180×2i200008-200307

main81179-50250×2i200307

81189COVER, HEADLAMP

main81139-50220i200008-200307

main81179-50220i200008-200307

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-50010i200008-200307

main81194-48010i200307-200608

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81193-48010i200307-200608

main81194-50010i200008-200307

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-50010i200307

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-50010i200008-200307

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i200008-200307

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2i200008-200307

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200008-200307

81615CSOCKET & WIRE, CLEARANCE LAMP

main81138-22680×2i200008-200307

85967COMPUTER, LIGHT CONTROL

main85967-41010×2i200008-200307

main85967-50020×2i200307-200312

9010906221

main90109-06221

9018906074

main90189-06074

23 parts on this diagram · 2 diagrams in section
