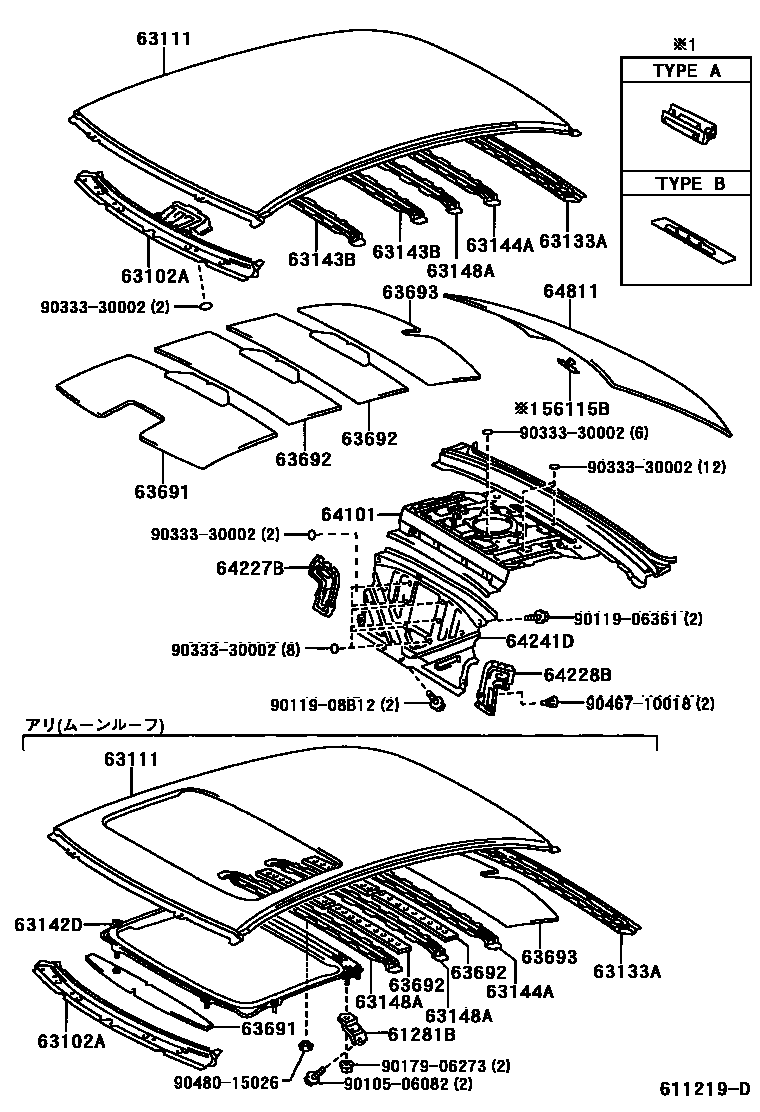

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63133AFRAME, BACK WINDOW, UPPER
63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63691PAD, ROOF SILENCER, NO.21
63692PAD, ROOF SILENCER, NO.22
64101PANEL SUB-ASSY, UPPER BACK
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64241DPANEL, ROOM PARTITION
64811GLASS, BACK WINDOW
9010506082
main90105-06082
9011906361
main90119-06361
9011908B12
main90119-08B12
9017906273
main90179-06273
9033330002
main90333-30002
9046710018
main90467-10018
9048015026
main90480-15026
24 parts on this diagram · 4 diagrams in section
