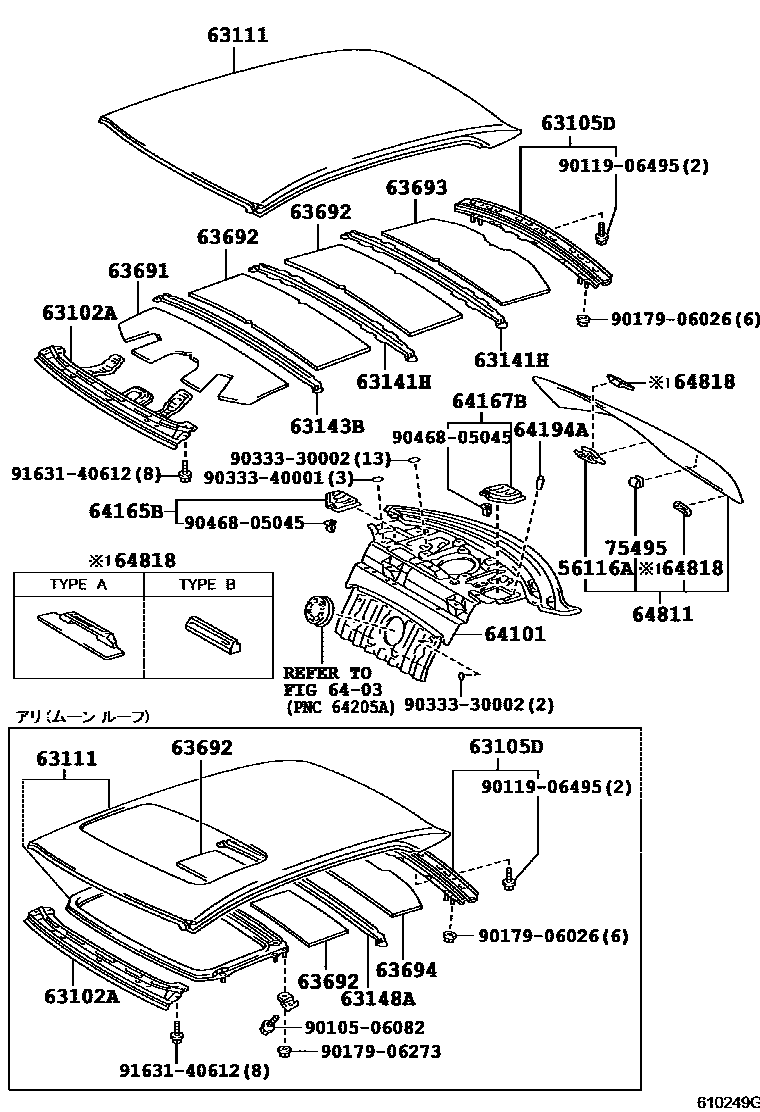

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56116-22080iUCF2#199410-199707

main56116-50020iUCF2#199707

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-50030iUCF2#199410-199808

main63102-50031iUCF2#199808

main63102-50040iUCF2#199410-199808

main63102-50041iUCF2#199808

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-50020iUCF2#199410

63111PANEL, ROOF

main63111-50030iUCF2#199410-199808

main63111-50031iUCF2#199808

main63111-50900iUCF2#199410-199808

main63111-50901iUCF2#199808

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-50020iUCF2#199410

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-50020iUCF2#199410

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-50020iUCF2#199410

63691PAD, ROOF SILENCER, NO.21

main63691-50020iUCF2#199410-199707

main63691-50030iUCF2#199707

63692PAD, ROOF SILENCER, NO.22

main63692-50010iUCF2#199410-199707

main63692-50020iUCF2#199410

main63692-50030iUCF2#199707

63693PAD, ROOF SILENCER, NO.23

main63693-50010iUCF2#199410-199707

main63693-50020iUCF2#199707

63694PAD, ROOF SILENCER, NO.24

main63694-50010iUCF2#199410-199707

main63694-50020iUCF2#199707

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

64101PANEL SUB-ASSY, UPPER BACK

main64101-50130iUCF21199410-199904

main64101-50131iUCF21199904-200008

main64101-50140iUCF2#199410-199904

main64101-50141iUCF2#199904-200008

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-50020iUCF2#199410

64167BCOVER, UPPER BACK PANEL HOLE, NO.3

main64167-50020iUCF2#199410

64194APAD, BACK PANEL SILENCER, UPPER

main64194-30010iUCF2#199707

64811GLASS, BACK WINDOW

main64810-50170iUCF20..A199410-199608

main64810-50190iUCF2#..B,C199410-199608

main64810-50211iUCF20..A199608-199707

main64810-50221iUCF2#..B,C199608-199707

main64810-50230iUCF2#199707-199908

main64810-50240iUCF2#..B,C199905-199908

main64810-50250iUCF2#..B,C199707-199908

64818SPACER, BACK WINDOW GLASS

main56115-30090iUCF2#199410

main64818-50030iUCF2#199410

75495CLIP, OUTSIDE MOULDING, NO.4

main75495-50030iUCF2#199410-199707

main75495-50040iUCF2#199707

9010506082

main90105-06082

9011906495

main90119-06495

9017906026

main90179-06026

9017906273

main90179-06273

9033330002

main90333-30002

9033340001

main90333-40001

9046805045

main90468-05045

9163140612

main91631-40612

27 parts on this diagram · 2 diagrams in section
