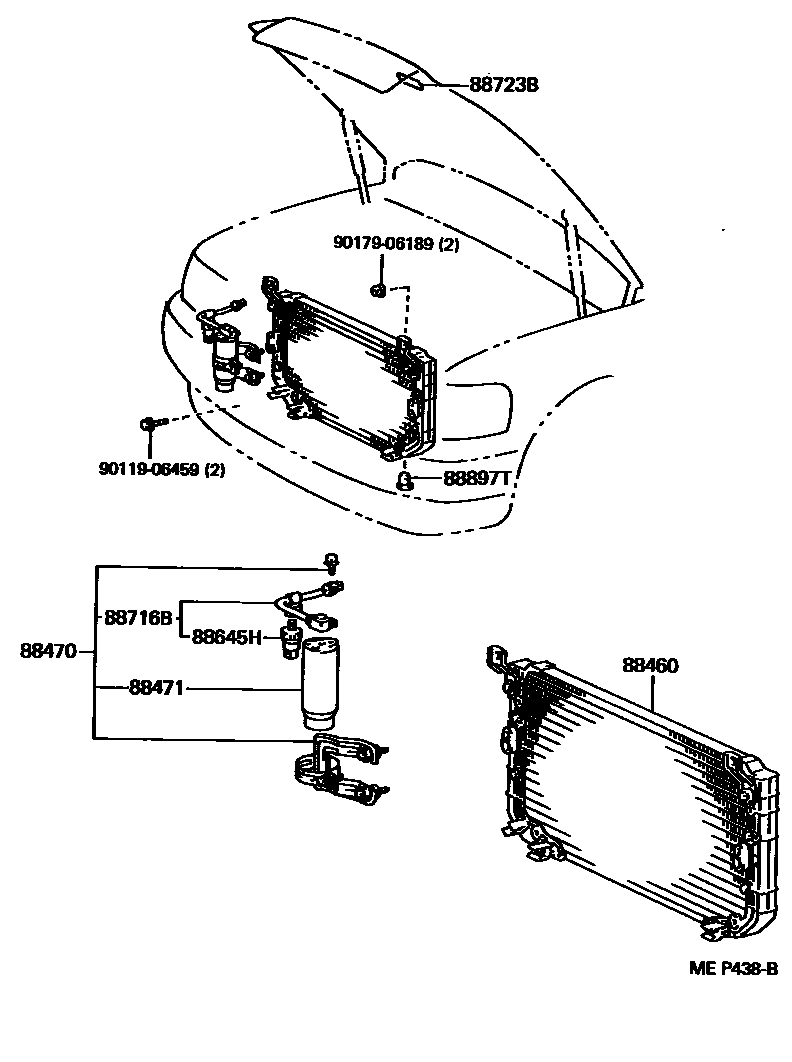

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1F PACKAGE 0004 1F PACKAGE 0005 1O RING

88460CONDENSER ASSY, COOLER

main88460-50050iUCF1#198911-199208

main88460-50080iUCF1#199208-199410

88470RECEIVER & DRYER ASSY, COOLER

main88470-50010iUCF1#198911-199208

main88470-50020iUCF11198911-199208

main88470-50050iUCF1#199208-199410

main88470-50060iUCF11199208-199410

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iUCF1#199208-199410

main88471-30330iUCF11198912-199208

main88471-50010iUCF1#198911-199208

main88471-50020iUCF11199208-199410

88645HSWITCH, PRESSURE NO.1

main88645-20040iUCF1#199012-199208

main88645-20050iUCF1#199208-199410

main88645-50010iUCF1#198911-199011

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88710-50170iUCF1#199208-199410

main88716-50030iUCF1#198911-199208

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iUCF1#199208-199410

main88723-50060iUCF1#198911-199208

88897TGROMMET, COOLER

main88897-50010×2iUCF1#198911-199410

9011906459

main90119-06459

9017906189

main90179-06189
