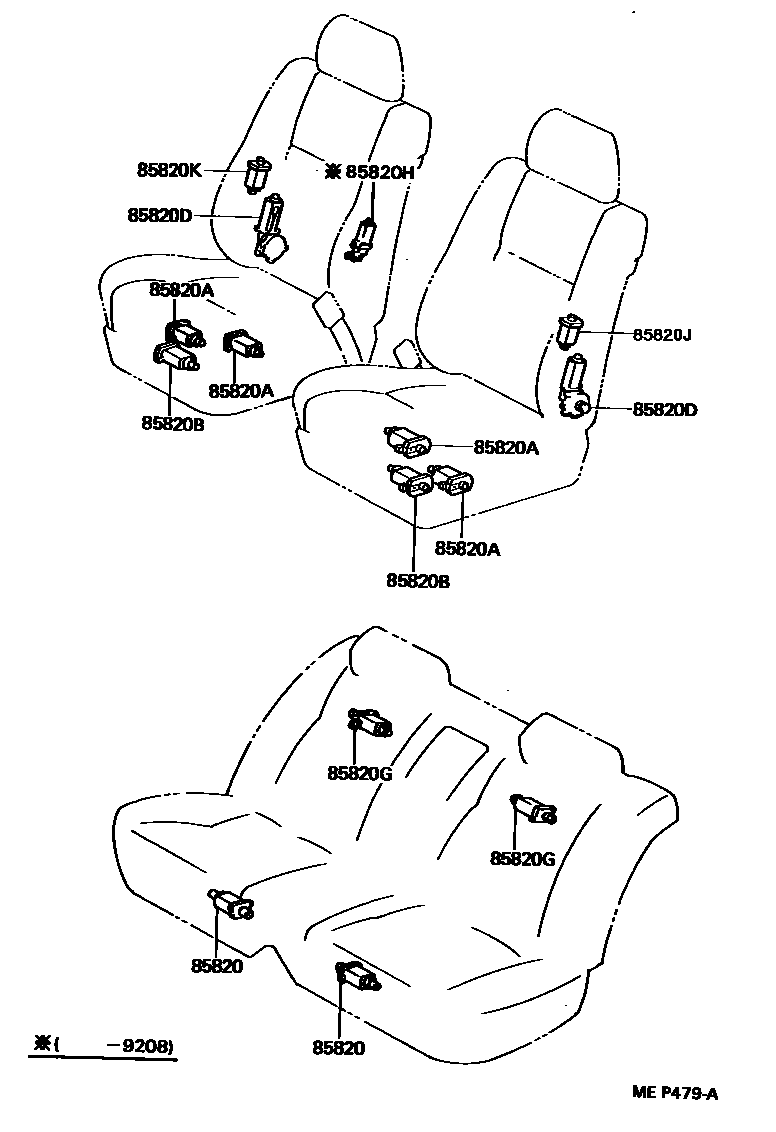

SEAT MOTOR & SEAT HEATER

0001 1 0002 1

85820MOTOR ASSY, POWER SEAT (FOR REAR)

main85820-30420iUCF11199208-199410

main85820-50010iUCF11198911-199208

main85820-50090iUCF11198911-199208

main85820-50150iUCF11199208-199410

85820AMOTOR ASSY, POWER SEAT (FOR FRONT UP, DOWN)

main85820-50030×2iUCF1#198911-199208

main85820-50100×2iUCF1#198911-199208

main85820-50140×2iUCF1#199208-199410

main85820-50160×2iUCF1#199208-199410

85820BMOTOR ASSY, POWER SEAT (FOR FRONT SLIDE)

main85820-30420iUCF1#199208-199410

main85820-50010iUCF1#198911-199208

main85820-50090iUCF1#198911-199208

main85820-50150iUCF1#199208-199410

85820DMOTOR ASSY, POWER SEAT (FOR FRONT RECLINING)

main85801-50010iUCF11198911-199208

main85801-50020iUCF11198911-199208

main85801-50030iUCF11199208-199410

main85801-50040iUCF11199208-199410

main85820-50040iUCF10198911-199410

main85820-50050iUCF1#198911-199410

85820GMOTOR ASSY, POWER SEAT

main85820-30430iUCF11199208-199410

main85820-50060iUCF11198911-199208

main85820-50080iUCF11198911-199208

main85820-50200iUCF11199208-199410

85820HMOTOR ASSY, POWER SEAT

main85820-50120iUCF1#198911-199208

85820JMOTOR ASSY, POWER SEAT

main85820-30420iUCF11199208-199410

main85820-50060iUCF11198911-199208

main85820-50090iUCF11198911-199208

main85820-50200iUCF11199208-199410

85820KMOTOR ASSY, POWER SEAT

main85820-50080iUCF11198911-199208

main85820-50240iUCF11199208-199410

8 parts on this diagram · 2 diagrams in section
