E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

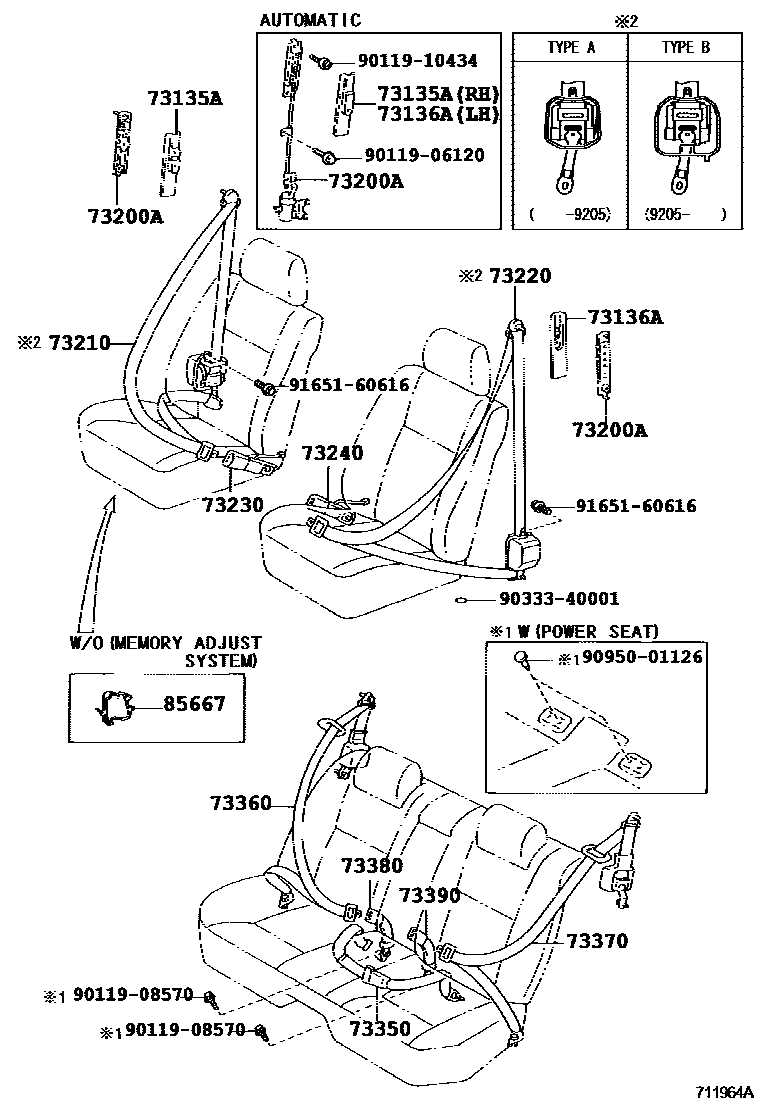

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73135-50010-04i198911-199208
DARK BLUE,TRIM8#
main73135-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main73135-50010-W3i199208-199410
DK. BLUE,TRIM8#
main73135-50020-03i198911-199208
SHADOW GRAY,TRIM1#
main73135-50020-04i198911-199208
DARK BLUE,TRIM8#
main73135-50020-05i198911-199208
GREIGE,TRIM0#
main73135-50020-06i198911-199208
DARK ROSE,TRIM4#
main73135-50020-E0i199208-199410
OAK,TRIM0#
main73135-50020-K0i199208-199410
TAUPE,TRIM9#
main73135-50020-P0i199208-199410
SHADOW GRAY,TRIM1#
main73135-50020-W3i199208-199410
DK. BLUE,TRIM8#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73136-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73136-50010-04i198911-199208
DARK BLUE,TRIM8#
main73136-50010-P0i199208-199410
SHADOW GRAY,TRIM1#
main73136-50010-W3i199208-199410
DK. BLUE,TRIM8#
main73136-50020-03i198911-199208
SHADOW GRAY,TRIM1#
main73136-50020-04i198911-199208
DARK BLUE,TRIM8#
main73136-50020-05i198911-199208
GREIGE,TRIM0#
main73136-50020-06i198911-199208
DARK ROSE,TRIM4#
main73136-50020-E0i199208-199410
OAK,TRIM0#
main73136-50020-K0i199208-199410
TAUPE,TRIM9#
main73136-50020-P0i199208-199410
SHADOW GRAY,TRIM1#
main73136-50020-W3i199208-199410
DK. BLUE,TRIM8#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-50010i198911-199002
main73200-50011i199002-199410
main73200-50021i198911-199301
main73200-50022i199301-199410
main73200-50031i198911-199208
main73200-50040i199208-199301
main73200-50041i199301-199410
main73290-50010i198911-199002
main73290-50011i199002-199410
main73290-50031i198911-199301
main73290-50032i199301-199410
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-50010-03i198911-199002
SHADOW GRAY,TRIM1#
main73210-50010-04i198911-199002
DARK BLUE,TRIM8#
main73210-50010-05i198911-199002
GREIGE,TRIM0#
main73210-50010-06i198911-199002
DARK ROSE,TRIM4#
main73210-50011-03i199002-199004
SHADOW GRAY,TRIM1#
main73210-50011-04i199002-199004
DARK BLUE,TRIM8#
main73210-50011-05i199002-199004
GREIGE,TRIM0#
main73210-50011-06i199002-199004
DARK ROSE,TRIM4#
main73210-50012-03i199004-199103
SHADOW GRAY,TRIM1#
main73210-50012-04i199004-199103
DARK BLUE,TRIM8#
main73210-50012-05i199004-199103
GREIGE,TRIM0#
main73210-50012-06i199004-199103
DARK ROSE,TRIM4#
main73210-50013-03i199103-199205
main73210-50013-04i199103-199205
main73210-50013-05i199103-199205
main73210-50013-06i199103-199205
main73210-50014-B0i199205-199208
main73210-50014-E0i199205-199208
main73210-50014-E1i199205-199208
main73210-50014-J0i199205-199208
main73210-50040-B1i199208-199401
SHADOW GRAY,TRIM1#
main73210-50040-E1i199208-199401
OAK,TRIM0#
main73210-50040-J1i199208-199401
DK. BLUE,TRIM8#
main73210-50040-K1i199208-199401
TAUPE,TRIM9#
main73210-50041-B1i199401-199402
SHADOW GRAY,TRIM1#
main73210-50041-E1i199401-199402
OAK,TRIM0#
main73210-50041-J1i199401-199402
DK. BLUE,TRIM8#
main73210-50041-K1i199401-199402
TAUPE,TRIM9#
main73210-50042-B1i199402-199410
SHADOW GRAY,TRIM1#
main73210-50042-E1i199402-199410
OAK,TRIM0#
main73210-50042-J1i199402-199410
DK. BLUE,TRIM8#
main73210-50042-K1i199402-199410
TAUPE,TRIM9#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-50010-03i198911-199002
SHADOW GRAY,TRIM1#
main73220-50010-04i198911-199002
DARK BLUE,TRIM8#
main73220-50010-05i198911-199002
GREIGE,TRIM0#
main73220-50010-06i198911-199002
DARK ROSE,TRIM4#
main73220-50011-03i199002-199004
SHADOW GRAY,TRIM1#
main73220-50011-04i199002-199004
DARK BLUE,TRIM8#
main73220-50011-05i199002-199004
GREIGE,TRIM0#
main73220-50011-06i199002-199004
DARK ROSE,TRIM4#
main73220-50012-03i199004-199103
SHADOW GRAY,TRIM1#
main73220-50012-04i199004-199103
DARK BLUE,TRIM8#
main73220-50012-05i199004-199103
GREIGE,TRIM0#
main73220-50012-06i199004-199103
DARK ROSE,TRIM4#
main73220-50013-03i199103-199205
main73220-50013-04i199103-199205
main73220-50013-05i199103-199205
main73220-50013-06i199103-199205
main73220-50014-B0i199205-199208
main73220-50014-E0i199205-199208
main73220-50014-E1i199205-199208
main73220-50014-J0i199205-199208
main73220-50040-B0i199208-199401
SHADOW GRAY,TRIM1#
main73220-50040-E0i199208-199401
OAK,TRIM0#
main73220-50040-J0i199208-199401
DK. BLUE,TRIM8#
main73220-50040-K0i199208-199401
TAUPE,TRIM9#
main73220-50041-B0i199401-199402
SHADOW GRAY,TRIM1#
main73220-50041-E0i199401-199402
OAK,TRIM0#
main73220-50041-J0i199401-199402
DK. BLUE,TRIM8#
main73220-50041-K0i199401-199402
TAUPE,TRIM9#
main73220-50042-B0i199402-199410
SHADOW GRAY,TRIM1#
main73220-50042-E0i199402-199410
OAK,TRIM0#
main73220-50042-J0i199402-199410
DK. BLUE,TRIM8#
main73220-50042-K0i199402-199410
TAUPE,TRIM9#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73230-50010-04i198911-199208
DARK BLUE,TRIM8#
main73230-50010-05i198911-199208
GREIGE,TRIM0#
main73230-50010-06i198911-199208
DARK ROSE,TRIM4#
main73230-50030-B0i199208-199410
SHADOW GRAY,TRIM1#
main73230-50030-E0i199208-199410
OAK,TRIM0#
main73230-50030-J0i199208-199410
DK. BLUE,TRIM8#
main73230-50030-K0i199208-199410
TAUPE,TRIM9#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73240-50010-04i198911-199208
DARK BLUE,TRIM8#
main73240-50010-05i198911-199208
GREIGE,TRIM0#
main73240-50010-06i198911-199208
DARK ROSE,TRIM4#
main73240-50030-B0i199106-199208
main73240-50030-E0i199106-199208
main73240-50030-E1i199106-199208
main73240-50030-J0i199106-199208
main73240-50040-B0i199208-199410
SHADOW GRAY,TRIM1#
main73240-50040-E0i199208-199410
OAK,TRIM0#
main73240-50040-J0i199208-199410
DK. BLUE,TRIM8#
main73240-50040-K0i199208-199410
TAUPE,TRIM9#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73350-50010-04i198911-199208
DARK BLUE,TRIM8#
main73350-50010-05i198911-199208
GREIGE,TRIM0#
main73350-50010-06i198911-199208
DARK ROSE,TRIM4#
main73350-50050-03i198911-199208
main73350-50050-04i198911-199208
main73350-50050-05i198911-199208
main73350-50050-06i198911-199208
main73350-50060-B0i199208-199410
main73350-50060-E0i199208-199410
main73350-50060-J0i199208-199410
main73350-50060-K0i199208-199410
main73350-50070-B0i199208-199410
SHADOW GRAY,TRIM1#
main73350-50070-E0i199208-199410
OAK,TRIM0#
main73350-50070-J0i199208-199410
DK. BLUE,TRIM8#
main73350-50070-K0i199208-199410
TAUPE,TRIM9#
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-50010-03i198911-199105
SHADOW GRAY,TRIM1#
main73360-50010-04i198911-199105
DARK BLUE,TRIM8#
main73360-50010-05i198911-199105
GREIGE,TRIM0#
main73360-50010-06i198911-199105
DARK ROSE,TRIM4#
main73360-50011-B0i199105-199208
SHADOW GRAY,TRIM1#
main73360-50011-E0i199105-199208
GREIGE,TRIM0#
main73360-50011-E1i199105-199208
DARK ROSE,TRIM4#
main73360-50011-J0i199105-199208
DARK BLUE,TRIM8#
main73360-50040-03i198911-199105
main73360-50040-04i198911-199105
main73360-50040-05i198911-199105
main73360-50040-06i198911-199105
main73360-50041-B0i199105-199208
main73360-50041-E0i199105-199208
main73360-50041-E1i199105-199208
main73360-50041-J0i199105-199208
main73360-50060-B0i199208-199410
SHADOW GRAY,TRIM1#
main73360-50060-E0i199208-199410
OAK,TRIM0#
main73360-50060-J0i199208-199410
DK. BLUE,TRIM8#
main73360-50060-K0i199208-199410
TAUPE,TRIM9#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-50010-03i198911-199105
SHADOW GRAY,TRIM1#
main73370-50010-04i198911-199105
DARK BLUE,TRIM8#
main73370-50010-05i198911-199105
GREIGE,TRIM0#
main73370-50010-06i198911-199105
DARK ROSE,TRIM4#
main73370-50011-B0i199105-199208
SHADOW GRAY,TRIM1#
main73370-50011-E0i199105-199208
GREIGE,TRIM0#
main73370-50011-E1i199105-199208
DARK ROSE,TRIM4#
main73370-50011-J0i199105-199208
DARK BLUE,TRIM8#
main73370-50040-03i198911-199105
main73370-50040-04i198911-199105
main73370-50040-05i198911-199105
main73370-50040-06i198911-199105
main73370-50041-B0i199105-199208
main73370-50041-E0i199105-199208
main73370-50041-E1i199105-199208
main73370-50041-J0i199105-199208
main73370-50060-B0i199208-199410
SHADOW GRAY,TRIM1#
main73370-50060-E0i199208-199410
OAK,TRIM0#
main73370-50060-J0i199208-199410
DK. BLUE,TRIM8#
main73370-50060-K0i199208-199410
TAUPE,TRIM9#
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73380-50010-04i198911-199208
DARK BLUE,TRIM8#
main73380-50010-05i198911-199208
GREIGE,TRIM0#
main73380-50010-06i198911-199208
DARK ROSE,TRIM4#
main73380-50020-03i198911-199208
main73380-50020-04i198911-199208
main73380-50020-05i198911-199208
main73380-50020-06i198911-199208
main73380-50050-B0i199208-199410
SHADOW GRAY,TRIM1#
main73380-50050-E0i199208-199410
OAK,TRIM0#
main73380-50050-J0i199208-199410
DK. BLUE,TRIM8#
main73380-50050-K0i199208-199410
TAUPE,TRIM9#
main73380-50060-B0i199208-199410
main73380-50060-E0i199208-199410
main73380-50060-J0i199208-199410
main73380-50060-K0i199208-199410
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73480-50010-03i198911-199208
SHADOW GRAY,TRIM1#
main73480-50010-04i198911-199208
DARK BLUE,TRIM8#
main73480-50010-05i198911-199208
GREIGE,TRIM0#
main73480-50010-06i198911-199208
DARK ROSE,TRIM4#
main73480-50020-03i198911-199208
main73480-50020-04i198911-199208
main73480-50020-05i198911-199208
main73480-50020-06i198911-199208
main73480-50050-B0i199208-199410
SHADOW GRAY,TRIM1#
main73480-50050-E0i199208-199410
OAK,TRIM0#
main73480-50050-J0i199208-199410
DK. BLUE,TRIM8#
main73480-50050-K0i199208-199410
TAUPE,TRIM9#
main73480-50060-B0i199208-199410
main73480-50060-E0i199208-199410
main73480-50060-J0i199208-199410
main73480-50060-K0i199208-199410
85667COVER, SHOULDER ADJUSTER MOTOR
main85667-50010i198911-199301
main85667-50011i199301-199410
main85667-50020i198911-199301
main85667-50021i199301-199410
9011906120
main90119-06120
9011908570
main90119-08570
9011910434
main90119-10434
9033340001
main90333-40001
9095001126
main90950-01126
9165160616
main91651-60616

19 parts on this diagram · 1 diagram in section
