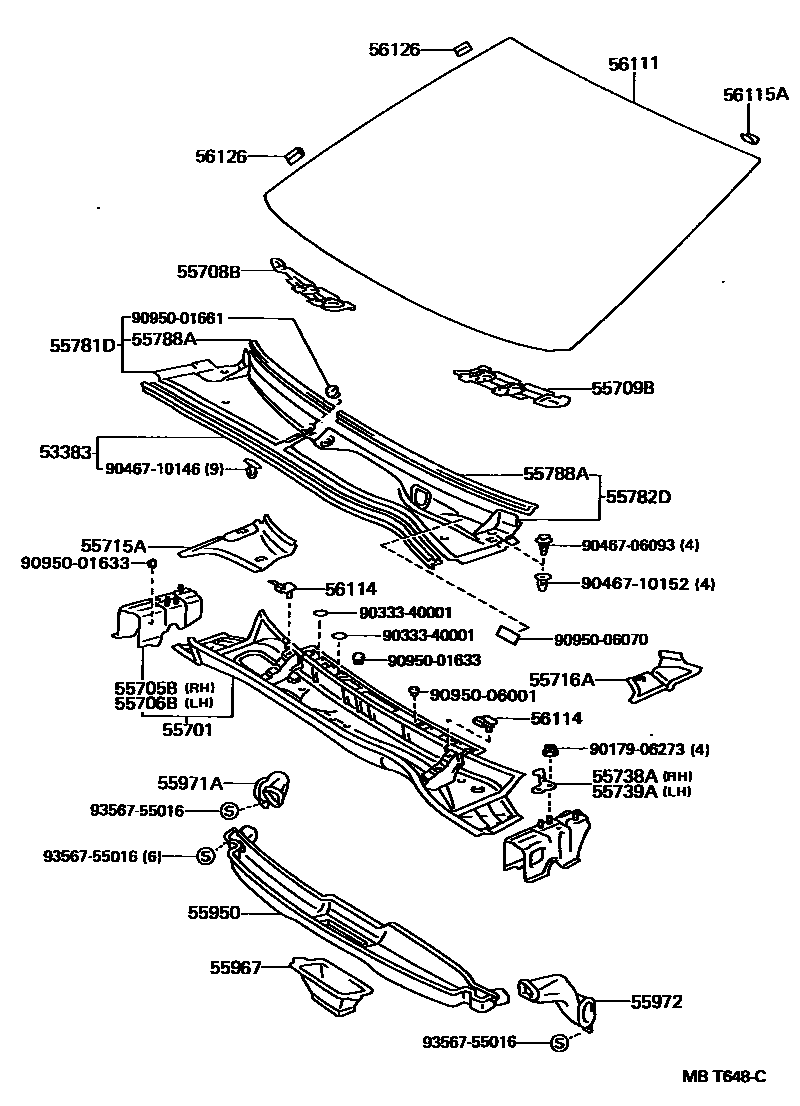

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708BINSULATOR SUB-ASSY, COWL TOP VENTILATOR
55709BINSULATOR SUB-ASSY, COWL TOP, NO.2
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55967NOZZLE, DEFROSTER, LOWER
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
56111GLASS, WINDSHIELD
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56126SPACER, WINDSHIELD GLASS, NO.2
9017906273
main90179-06273
9033340001
main90333-40001
9046706093
main90467-06093
9046710146
main90467-10146
9046710152
main90467-10152
9095001633
main90950-01633
9095001661
main90950-01661
9095006001
main90950-06001
9095006070
main90950-06070
9356755016
main93567-55016
31 parts on this diagram · 1 diagram in section
