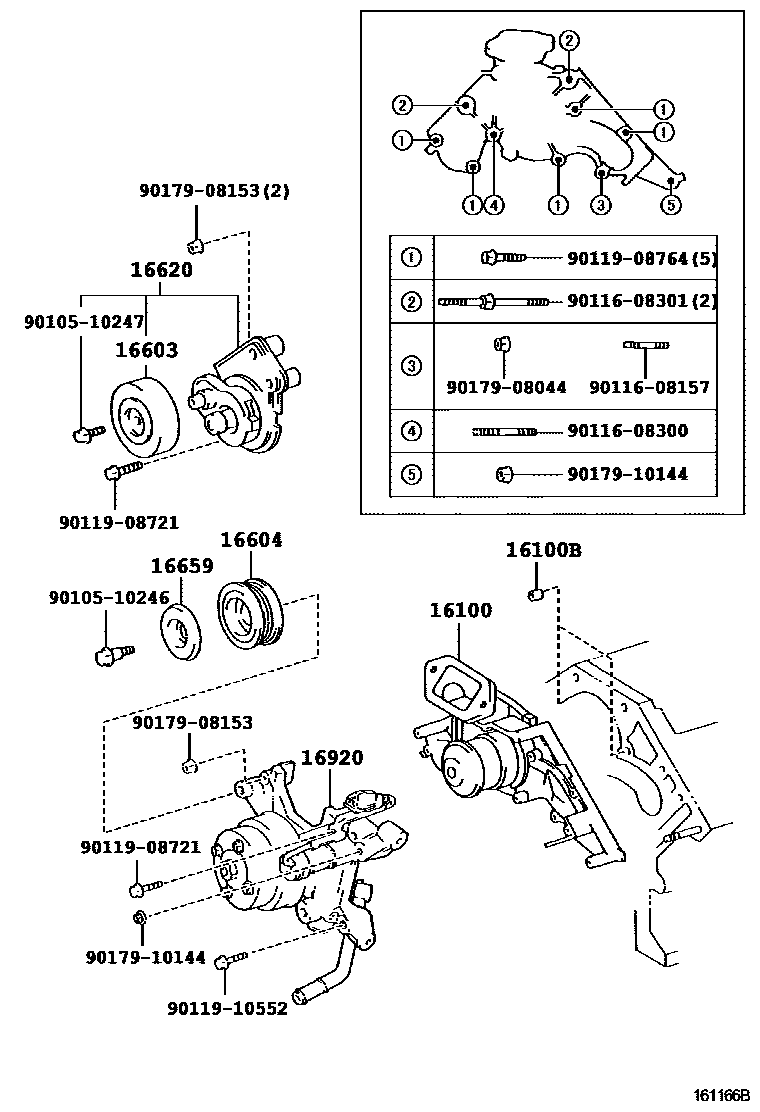

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-50020i1UZFE..UCF1#198911-199312

main16100-50021i1UZFE..UCF1#199312-199410

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i1UZFE..UCF1#198911-199410

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-50010i1UZFE..UCF1#198911-199402

main16603-50020i1UZFE..UCF1#198911-199402

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-50010i1UZFE..UCF1#198911-199410

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W030i1UZFE..UCF1#199406-199410

main16620-50011i1UZFE..UCF1#199401-199406

main16620-50020i1UZFE..UCF1#198911-199401

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-50010i1UZFE..UCF1#198911-199301

main16659-50020i1UZFE..UCF1#199301-199410

16920PUMP ASSY, HYDRAULIC MOTOR VANE

main16920-50010i1UZFE..UCF1#198911-199208

main16920-50011i1UZFE..UCF1#199208-199410

9010510246

main90105-10246

9010510247

main90105-10247

9011608157

main90116-08157

9011608300

main90116-08300

9011608301

main90116-08301

9011908721

main90119-08721

9011908764

main90119-08764

9011910552

main90119-10552

9017908044

main90179-08044

9017908153

main90179-08153

9017910144

main90179-10144

18 parts on this diagram · 2 diagrams in section
