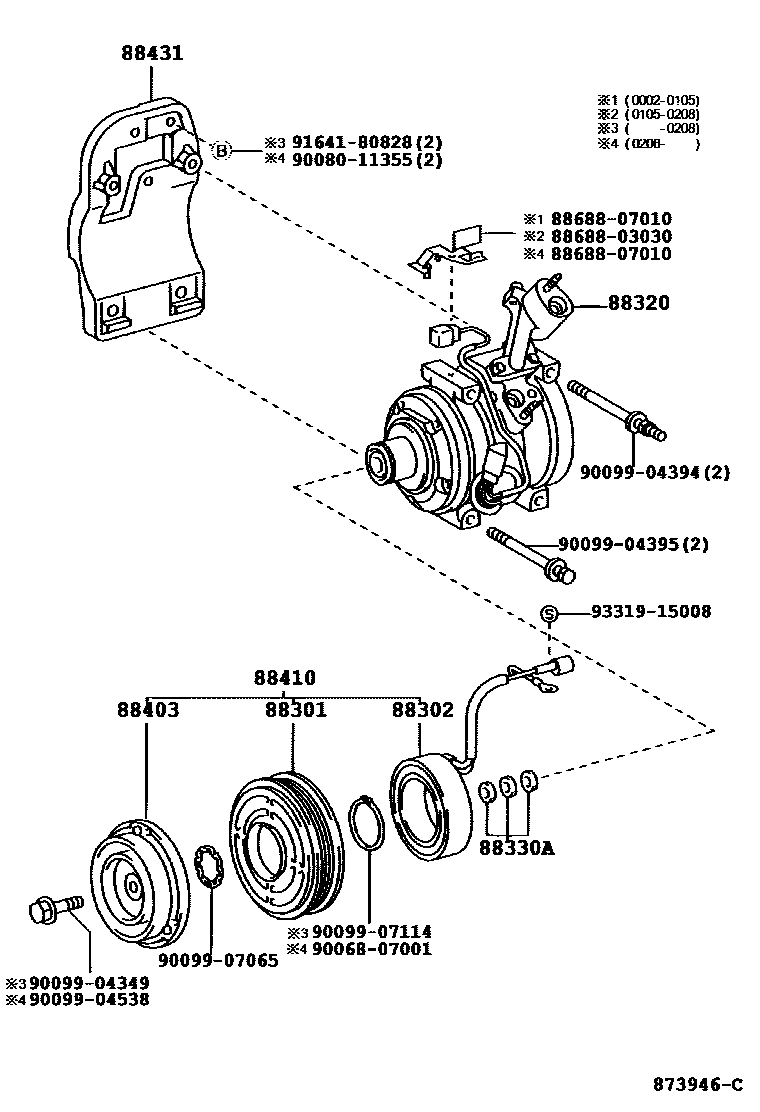

HEATING & AIR CONDITIONING - COMPRESSOR

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-07020iMCX20200002-200105

main88412-48020iMCX20200105-200207

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-06050iMCX20200207-200208

main88411-07030iMCX20200002-200105

88320COMPRESSOR ASSY, COOLER

main88320-07040iMCX20200002-200105

main88320-07090iMCX20200105-200207

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iMCX20200207-200208

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-07010iMCX20200002-200105

main88403-32010iMCX20200105-200207

88410CLUTCH ASSY, MAGNET

main88410-07020iMCX20200002-200105

main88410-07030iMCX20200105-200207

main88410-07040iMCX20200208-200301

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-07021iMCX20200002-200207

8868803030BRACKET, COOLER DIAPHRAGM

main88688-03030

8868807010BRACKET, COOLER DIAPHRAGM

main88688-07010

9006807001

main90068-07001

9008011355

main90080-11355

9009904349

main90099-04349

9009904394

main90099-04394

9009904395

main90099-04395

9009904538

main90099-04538

9009907065

main90099-07065

9009907114

main90099-07114

9164180828

main91641-80828

9331915008

main93319-15008

19 parts on this diagram · 1 diagram in section
