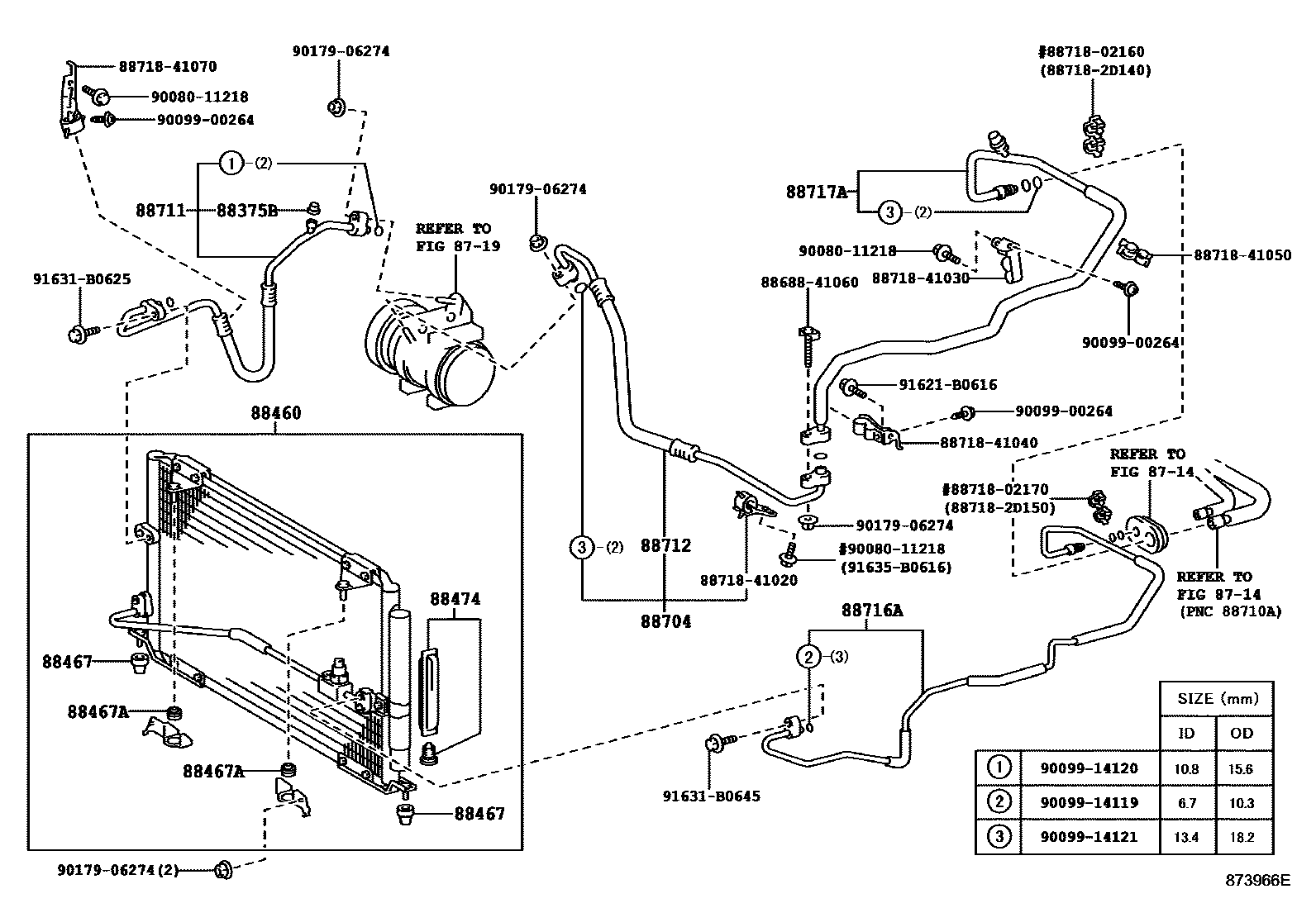

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88375BCAP, SERVICE VALVE, NO.1

main88375-02060iMCX20200002-200301

88460CONDENSER ASSY, COOLER

main88460-07041iMCX20200002-200103

main88460-07042iMCX20200103-200301

88467CUSHION, COOLER CONDENSER, NO.1

main88467-06030iMCX20200003-200207

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-33030iMCX20200003-200207

88474DRYER, COOLER

main88474-47010iMCX20200003-200301

88704HOSE SUB-ASSY, SUCTION

main88704-07050iMCX20200002-200301

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-07020iMCX20200002-200301

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-07040iMCX20200002-200301

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-07120iMCX20200002-200301

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-07040iMCX20200002-200301

8868841060BRACKET, COOLER DIAPHRAGM

main88688-41060

8871841020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41020

8871841030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41030

8871841040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41040

8871841050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41050

8871841070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-41070

9008011218

main90080-11218

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9017906274

main90179-06274

91621B0616

main91621-B0616

91631B0625

main91631-B0625

91631B0645

main91631-B0645

27 parts on this diagram · 1 diagram in section
