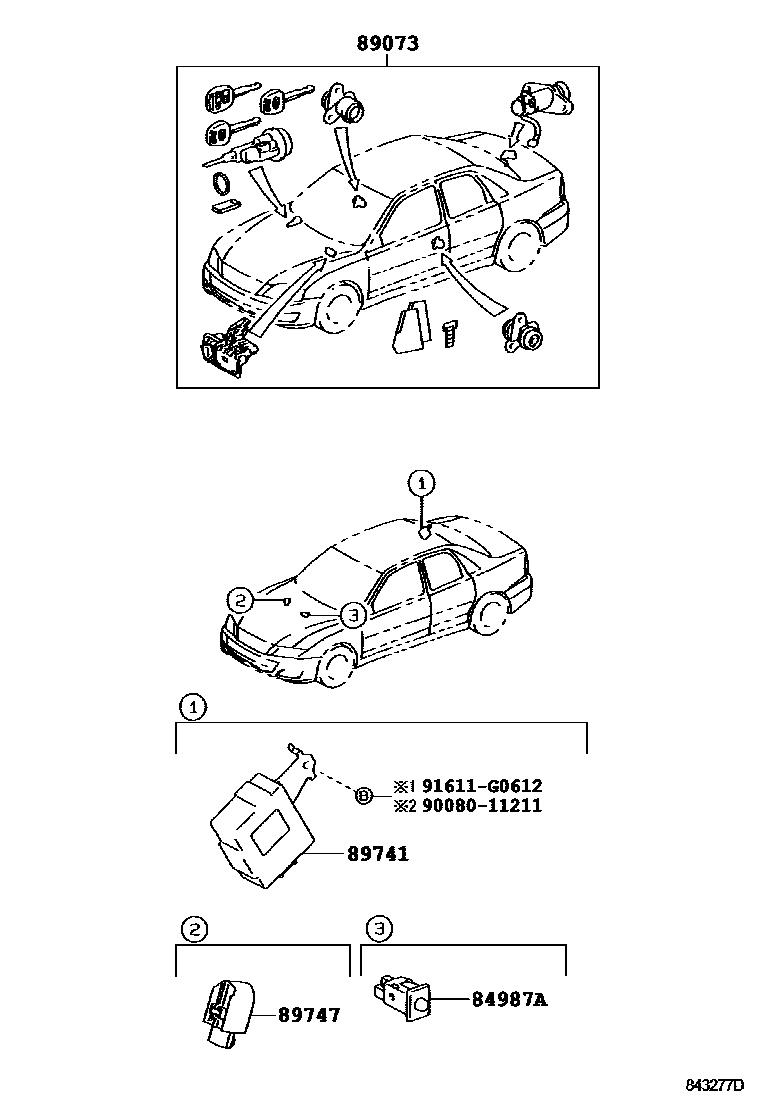

WIRELESS DOOR LOCK

84987ASWITCH, KEYLESS ENTRY CANCEL

main84987-41010iMCX20200003-200207

main84987-50040iMCX20200002-200003

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-41030iMCX20200002-200207

main89073-41050iMCX20200207-200301

89741RECEIVER, DOOR CONTROL

main89741-41040iMCX20200002-200207

89747BUZZER, WIRELESS DOOR LOCK

main89747-51010iMCX20200002-200207

9008011211

main90080-11211

91611G0612

main91611-G0612

6 parts on this diagram · 1 diagram in section
