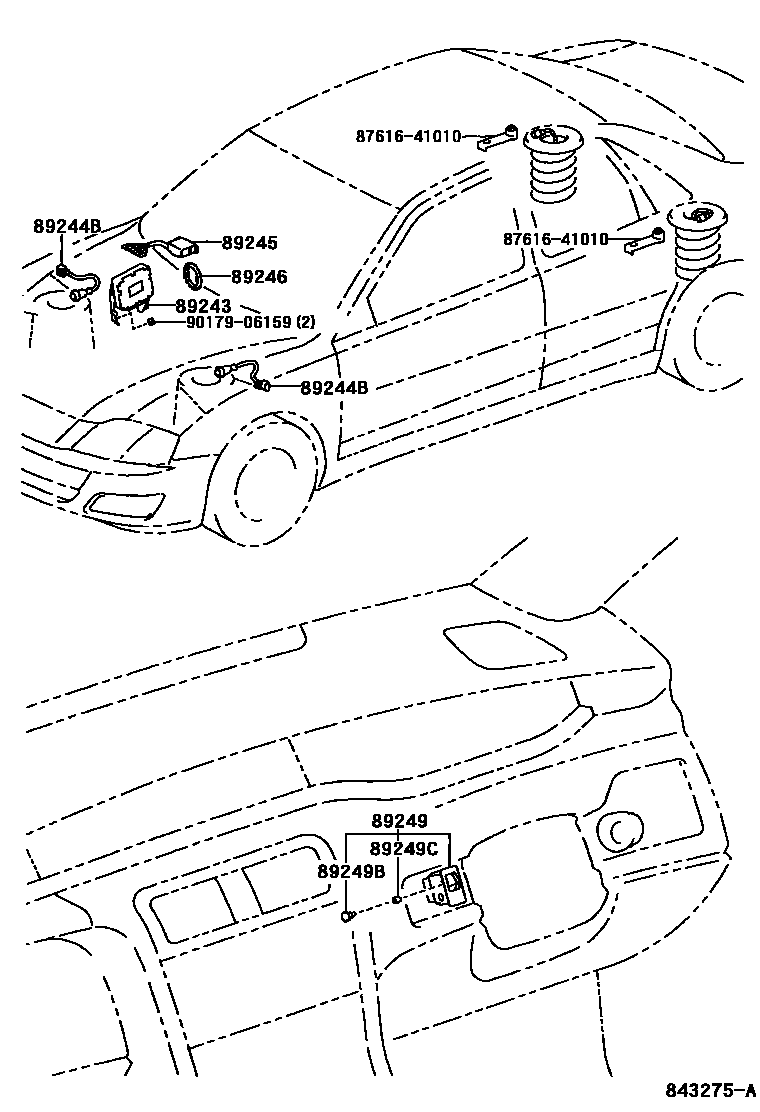

ELECTRONIC MODULATED SUSPENSION

89243COMPUTER, ABSORBER CONTROL

main89243-41010iMCX20..4FC200002-200207

89244BWIRE, ABSORBER CONTROL, FRONT

main89244-33030×2iMCX20..4FC200002-200207

89245SENSOR, STEERING

main89245-50020iMCX20..4FC200002-200207

89246DISC, SENSOR STEERING

main89246-50020iMCX20..4FC200002-200207

89249SWITCH, ABSORBER CONTROL

main89249-33020iMCX20..4FC200002-200207

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10700iMCX20..4FC200002-200207

89249CCAP BULB, ABSORBER CONTROL SWITCH

main84998-10770iMCX20..4FC200002-200207

8761641010CLAMP, COOLING UNIT CASE

main87616-41010

9017906159

main90179-06159

9 parts on this diagram · 1 diagram in section
