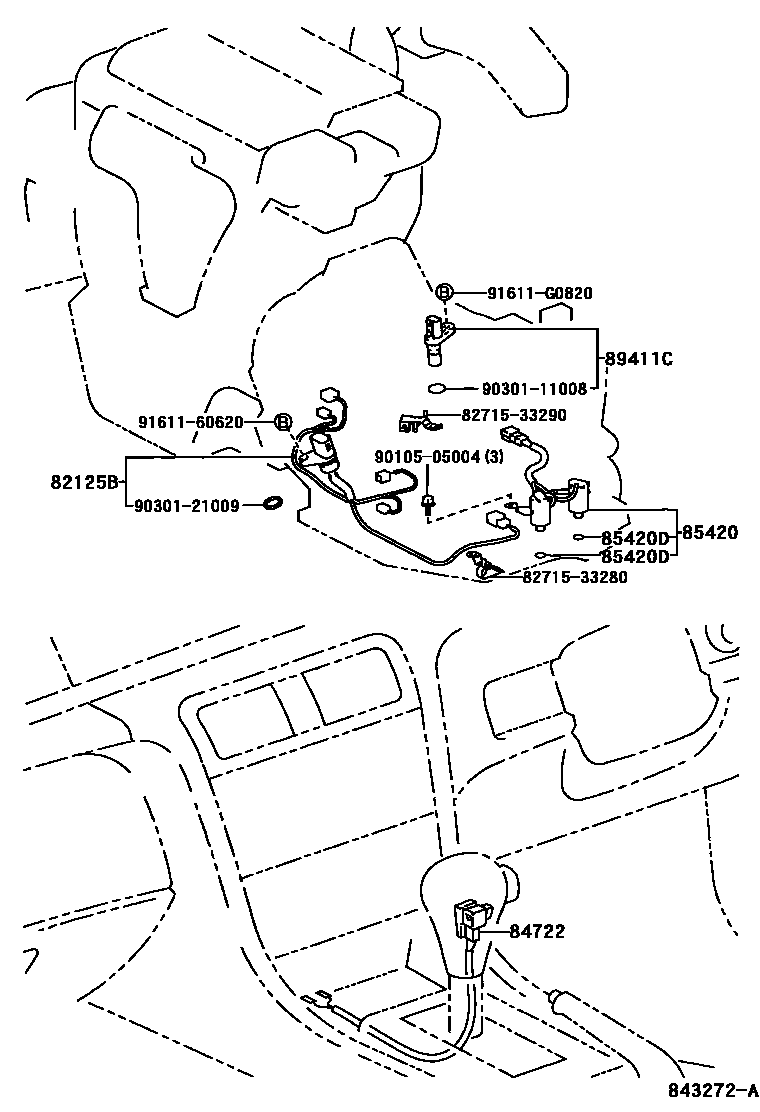

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-33020iMCX20200002-200207

84722SWITCH, TRANSMISSION CONTROL

main84722-07040-A1iMCX20..4FC200002-200207

IVORY,TRIM0#

main84722-07060-E0iMCX20..4FC200207-200301

FAWN,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCX20200207-200301

main85420-33030iMCX20200207-200301

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iMCX20200002-200207

89411CSENSOR, SPEED

main89411-33010iMCX20200002-200207

main89413-24010iMCX20200002-200207

8271533280BRACKET,WIRING HARNESS CLAMP

main82715-33280

8271533290BRACKET,WIRING HARNESS CLAMP

main82715-33290

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

91611G0820

main91611-G0820

12 parts on this diagram · 1 diagram in section
