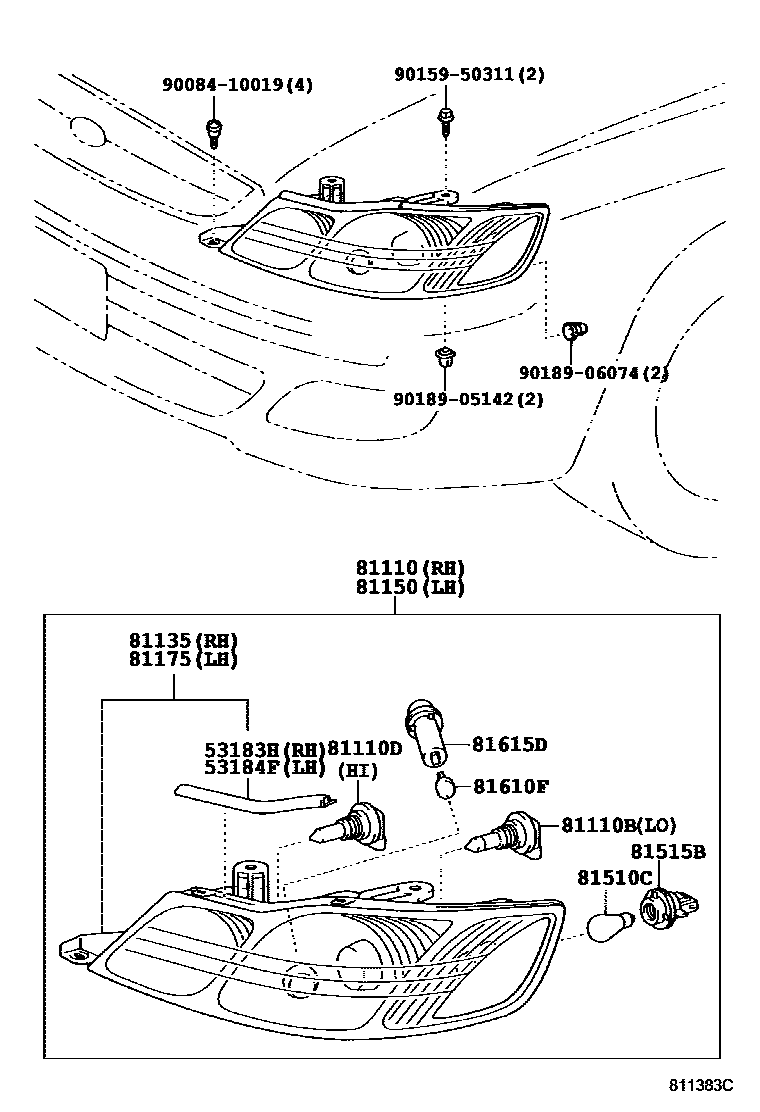

HEADLAMP

0001 1 0002 1������-�� ��������

53183HSEAL, HEADLAMP COVER, RH

main53183-AC020iMCX20200002-200207

53184FSEAL, HEADLAMP COVER, LH

main53184-AC020iMCX20200002-200207

81110HEADLAMP ASSY, RH

main81110-07050iMCX20..4FC200002-200207

main81110-07060iMCX20200002-200207

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2iMCX20200002-200207

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81041×2iMCX20200002-200207

81135UNIT ASSY, HEADLAMP, RH

main81130-07040iMCX20200002-200207

main81130-07050iMCX20..4FC200002-200207

81150HEADLAMP ASSY, LH

main81150-07050iMCX20200207-200301

main81150-07060iMCX20200002-200207

81175UNIT ASSY, HEADLAMP, LH

main81170-07040iMCX20200002-200207

main81170-07050iMCX20..4FC200002-200207

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iMCX20200207-200301

main90981-15010×2iMCX20200002-200207

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-16280×2iMCX20200002-200207

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iMCX20200002-200207

81615DSOCKET, CLEARANCE LAMP

main81138-22680×2iMCX20200002-200207

9008410019

main90084-10019

9015950311

main90159-50311

9018905142

main90189-05142

9018906074

main90189-06074

16 parts on this diagram · 2 diagrams in section
