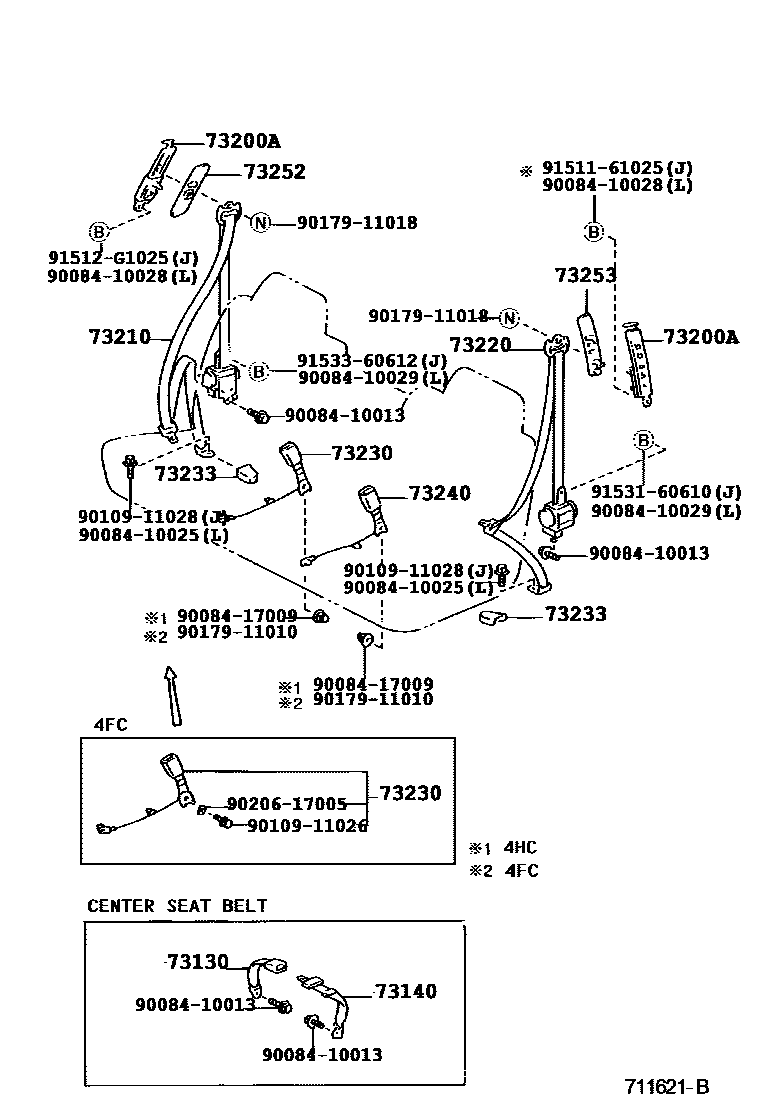

SEAT BELT & CHILD RESTRAINT SEAT
73130BELT ASSY, FRONT SEAT LAP TYPE, RH
IVORY,TRIM0#
FAWN,TRIM4#
73140BELT ASSY, FRONT SEAT LAP TYPE, LH
IVORY,TRIM0#
FAWN,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
IVORY,TRIM0#
FAWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
IVORY,TRIM0#
FAWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
IVORY,TRIM0#
FAWN,TRIM4#
IVORY,TRIM0#
FAWN,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
IVORY,TRIM0#
FAWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
IVORY,TRIM0#
FAWN,TRIM4#
IVORY,TRIM0#
FAWN,TRIM4#
73252COVER, SHOULDER BELT ANCHOR ADJUST, RH
IVORY,TRIM0#
FAWN,TRIM4#
73253COVER, SHOULDER BELT ANCHOR ADJUST, LH
IVORY,TRIM0#
FAWN,TRIM4#
9008410013
main90084-10013
9008410025
main90084-10025
9008410028
main90084-10028
9008410029
main90084-10029
9008417009
main90084-17009
9010911026
main90109-11026
9010911028
main90109-11028
9017911010
main90179-11010
9017911018
main90179-11018
9020617005
main90206-17005
9151161025
main91511-61025
91512G1025
main91512-G1025
9153160610
main91531-60610
9153360612
main91533-60612
24 parts on this diagram · 2 diagrams in section
