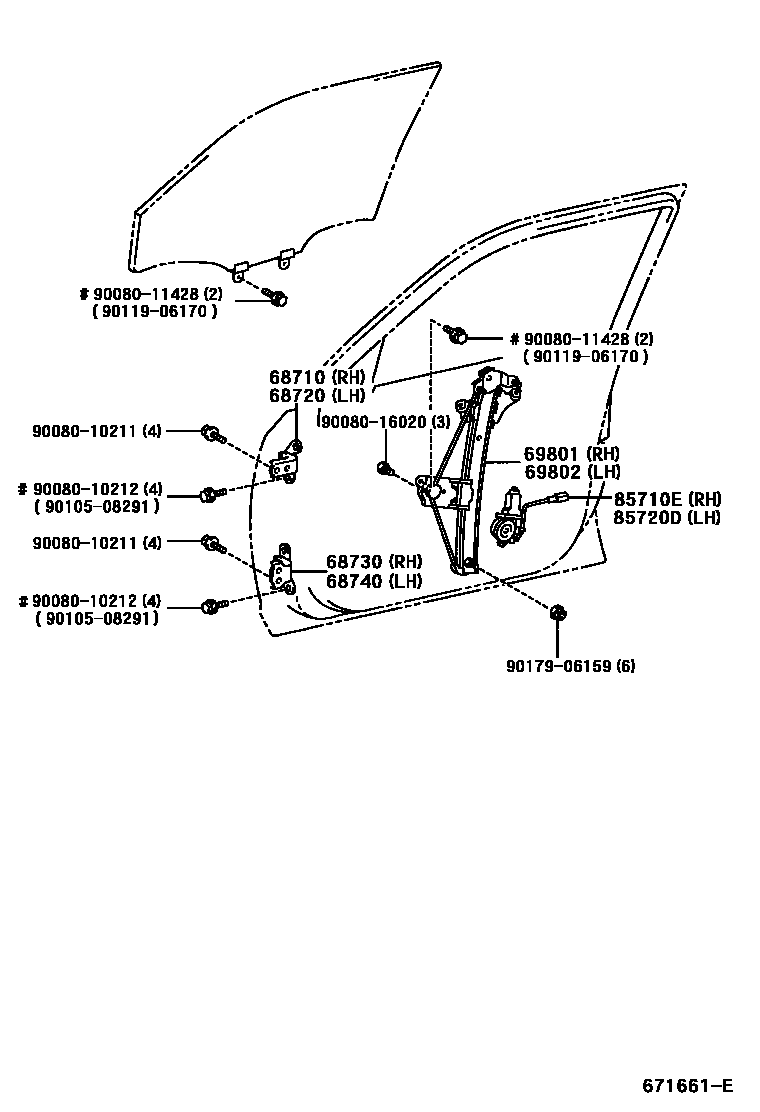

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-AC010iMCX20200002-200207

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-AC010iMCX20200002-200207

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-AC010iMCX20200002-200207

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-AC010iMCX20200002-200207

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-AC010iMCX20200002-200207

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-AC010iMCX20200002-200207

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-AC020iMCX20200002-200207

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AC010iMCX20200002-200207

9008010211

main90080-10211

9008010212

main90080-10212

9008011428

main90080-11428

9008016020

main90080-16020

9010508291

main90105-08291

9011906170

main90119-06170

9017906159

main90179-06159

15 parts on this diagram · 1 diagram in section
