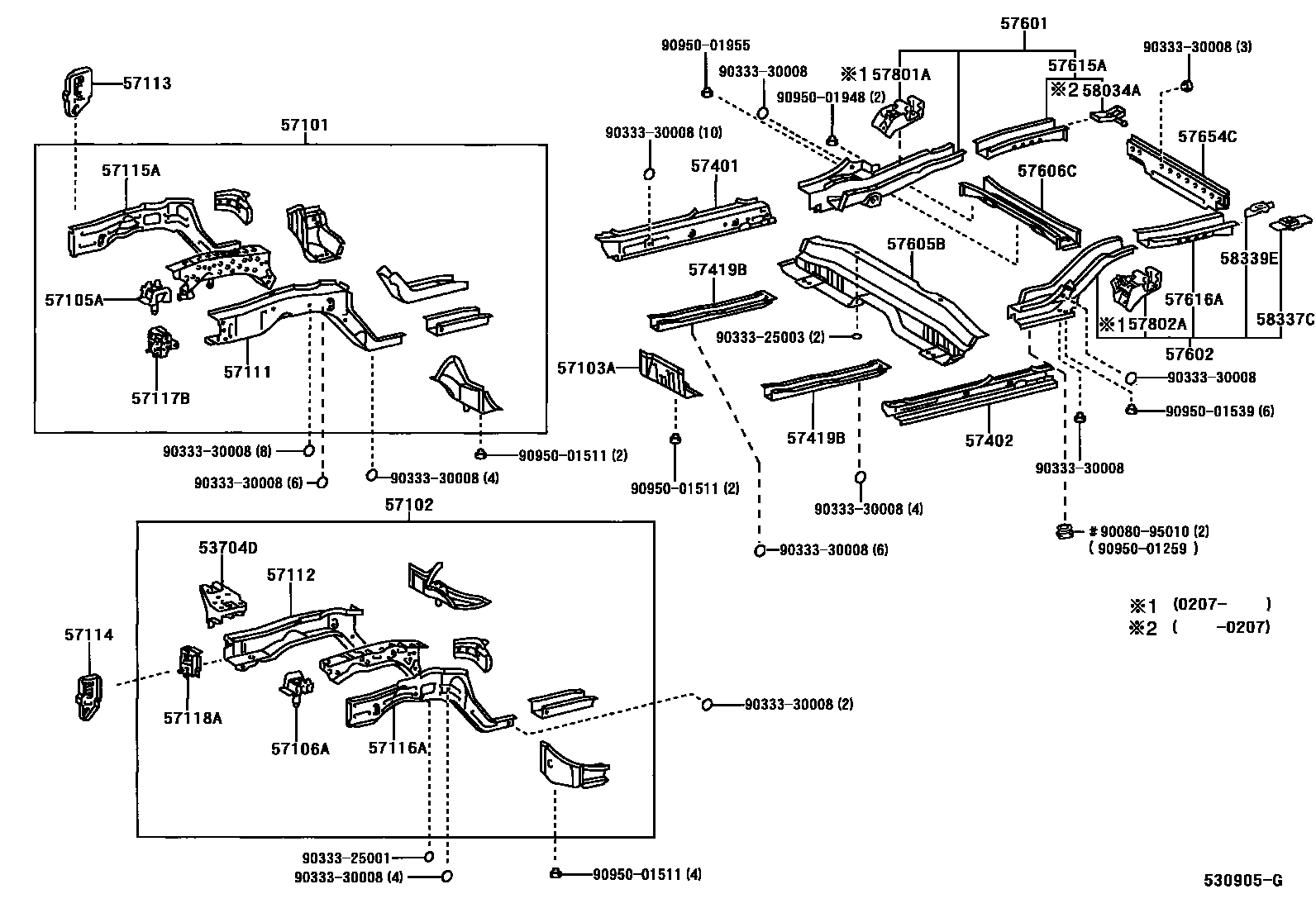

FLOOR SIDE MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-41010iMCX20200002-200207

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-06026iMCX20200002-200207

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-07010iMCX20200002-200207

57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3

main57103-06010iMCX20200002-200207

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-33020iMCX20200002-200207

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-33020iMCX20200002-200207

57111MEMBER, FRONT SIDE, RH

main57111-06013iMCX20200002-200207

57112MEMBER, FRONT SIDE, LH

main57112-06025iMCX20200002-200107

main57112-06026iMCX20200207-200301

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-06020iMCX20200002-200207

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-06020iMCX20200002-200207

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-06020iMCX20200207-200301

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-06010iMCX20200002-200207

main57116-33010iMCX20200002-200207

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57033-33020iMCX20200002-200207

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57034-33020iMCX20200002-200207

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-07030iMCX20200002-200207

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-07030iMCX20200002-200207

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-07030×2iMCX20200002-200207

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-06140iMCX20200002-200207

main57601-07040iMCX20200207-200301

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-07050iMCX20200002-200207

main57602-07060iMCX20..4FC200207-200301

main57602-07070iMCX20200207-200301

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-06030iMCX20200002-200207

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-06022iMCX20200002-200207

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-06901iMCX20200002-200207

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-06903iMCX20200002-200207

57654CMEMBER, REAR FLOOR CROSS, NO.3

main57654-06010iMCX20200002-200207

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-41010iMCX20200207-200301

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-41010iMCX20200207-200301

58034ABRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR

main58034-06020iMCX20200002-200207

58337CREINFORCEMENT, REAR FLOOR PAN, NO.1 LH

main58337-33010iMCX20200002-200207

58339EREINFORCEMENT, REAR FLOOR PAN, NO.2 LH

main58339-33010iMCX20200002-200207

9008095010

main90080-95010

9033325001

main90333-25001

9033325003

main90333-25003

9033330008

main90333-30008

9095001259

main90950-01259

9095001511

main90950-01511

9095001539

main90950-01539

9095001948

main90950-01948

9095001955

main90950-01955

38 parts on this diagram · 1 diagram in section
