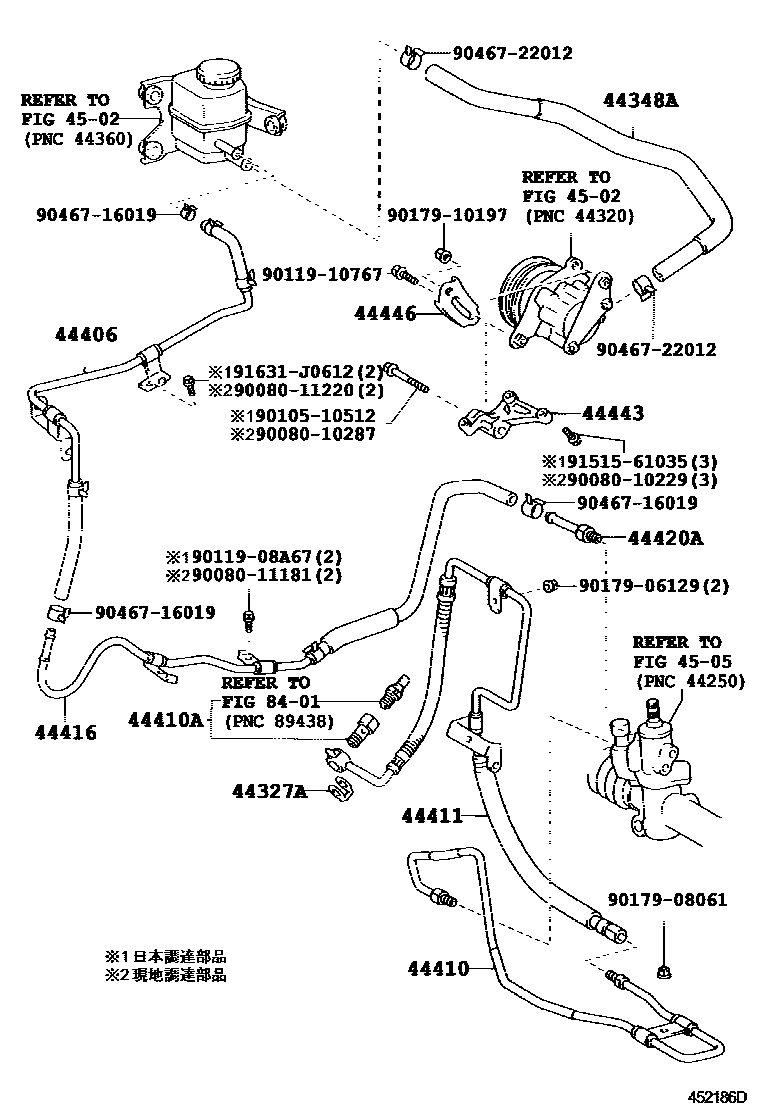

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCX20200207-200301

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-07020iMCX20200002-200207

44406TUBE SUB-ASSY, RETURN

main44406-07050iMCX20200207-200301

44410TUBE ASSY, PRESSURE FEED

main44410-07040iMCX20200002-200207

main44410-07070iMCX20200207-200301

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-08010iMCX20200207-200301

main44338-33090iMCX20200002-200207

44411HOSE, PRESSURE FEED

main44411-07060iMCX20200002-200207

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-07030iMCX20200002-200207

main44416-07060iMCX20200207-200301

44420ATUBE ASSY, RETURN

main44420-07010iMCX20200002-200207

44443BRACKET, PUMP

main44443-33041iMCX20200002-200207

44446STRUT, ADJUSTING

main44446-AC010iMCX20200002-200207

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008010229

main90080-10229

9008010287

main90080-10287

9008011181

main90080-11181

9008011220

main90080-11220

9010510512

main90105-10512

9011908A67

main90119-08A67

9011910767

main90119-10767

9017906129

main90179-06129

9017908061

main90179-08061

9017910197

main90179-10197

9046716019

main90467-16019

9046722012

main90467-22012

9151561035

main91515-61035

91631J0612

main91631-J0612

27 parts on this diagram · 1 diagram in section
