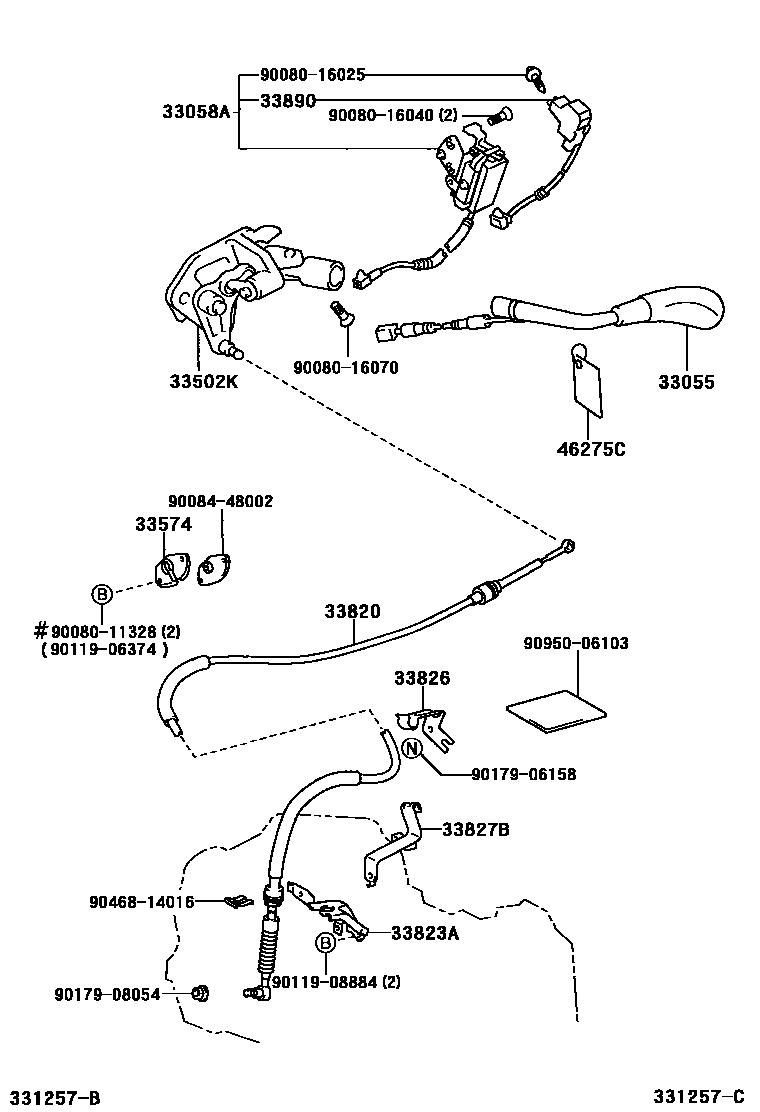

CONTROL SHAFT & CROSSSHAFT

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-41030iMCX20..4HC200002-200207

33058ABRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-07030iMCX20..4HC200002-200207

33502KHOUSING SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33502-07060iMCX20..4HC200002-200207

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-06020iMCX20..4HC200002-200207

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-07080iMCX20..4HC200002-200207

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-41010iMCX20..4HC200002-200207

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33827-07030iMCX20..4HC200002-200207

33827BBRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-07020iMCX20..4HC200002-200207

33890GUIDE ASSY, SHIFT LOCK SWITCH

main33890-07020iMCX20..4HC200002-200207

46275CLABEL, PARKING BRAKE RELEASE INFORMATION

main46275-33020iMCX20..4HC200002-200207

9008011328

main90080-11328

9008016025

main90080-16025

9008016040

main90080-16040

9008016070

main90080-16070

9008448002

main90084-48002

9011906374

main90119-06374

9011908884

main90119-08884

9017906158

main90179-06158

9017908054

main90179-08054

9046814016

main90468-14016

9095006103

main90950-06103

21 parts on this diagram · 1 diagram in section
