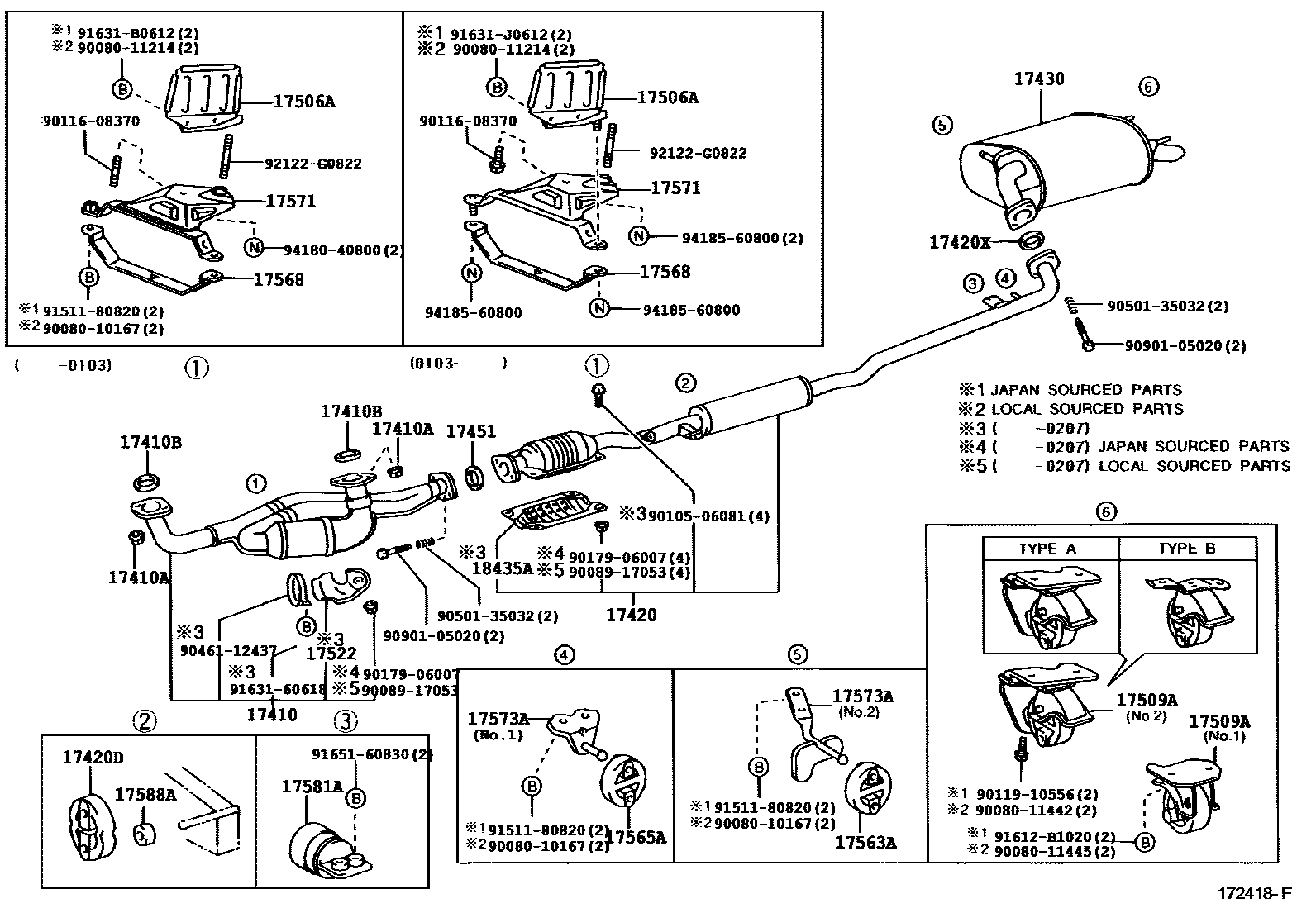

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17420PIPE ASSY, EXHAUST, CENTER
17420DBOLT OR RING, EXHAUST PIPE CENTER, FRONT
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17522PROTECTOR, EXHAUST PIPE, UPPER NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17568STAY, EXHAUST PIPE SUPPORT
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17581ADAMPER, EXHAUST PIPE
17588ASPACER, EXHAUST PIPE HANGER
18435APROTECTOR, MONOLITHIC CONVERTER
9008010167
main90080-10167
9008011214
main90080-11214
9008011442
main90080-11442
9008011445
main90080-11445
9008917053
main90089-17053
9010506081
main90105-06081
9011608370
main90116-08370
9011910556
main90119-10556
9017906007
main90179-06007
9046112437
main90461-12437
9050135032
main90501-35032
9090105020
main90901-05020
9151180820
main91511-80820
91612B1020
main91612-B1020
9163160618
main91631-60618
91631B0612
main91631-B0612
91631J0612
main91631-J0612
9165160830
main91651-60830
92122G0822
main92122-G0822
9418040800
main94180-40800
9418560800
main94185-60800
40 parts on this diagram · 1 diagram in section
