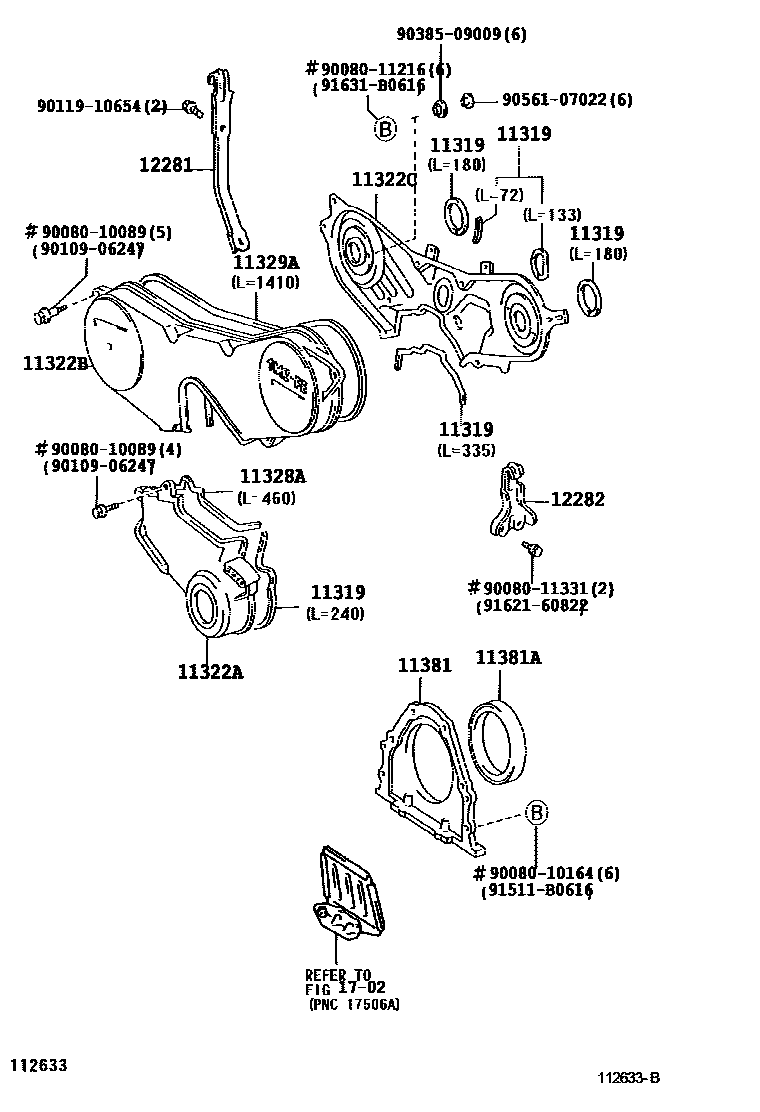

TIMING GEAR COVER & REAR END PLATE

11319GASKET, TIMING BELT COVER, NO.3

main11319-20010i1MZFE..MCX20200002-200301

11322ACOVER, TIMING BELT, NO.1

main11302-20040i1MZFE..MCX20200002-200301

11322BCOVER, TIMING BELT, NO.2

main11303-0A030i1MZFE..MCX20200002-200008

main11303-0A031i1MZFE..MCX20200008-200301

main11303-20040i1MZFE..MCX20200002-200301

11322CCOVER, TIMING BELT, NO.3

main11323-20030i1MZFE..MCX20200002-200301

11328AGASKET, TIMING BELT COVER, NO.1

main11328-20020i1MZFE..MCX20200002-200301

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-20010i1MZFE..MCX20200002-200301

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0A010i1MZFE..MCX20200002-200301

11381ASEAL, ENGINE REAR OIL

main90080-31053i1MZFE..MCX20200002-200301

12281HANGER, ENGINE, NO.1

main12281-0A021i1MZFE..MCX20200002-200301

12282HANGER, ENGINE, NO.2

main12282-20020i1MZFE..MCX20200002-200301

1702EXHAUST PIPE

→ Go to FIG 17-02

9008010089

main90080-10089

9008010164

main90080-10164

9008011216

main90080-11216

9008011331

main90080-11331

9010906247

main90109-06247

9011910654

main90119-10654

9038509009

main90385-09009

9056107022

main90561-07022

91511B0616

main91511-B0616

9162160822

main91621-60822

91631B0616

main91631-B0616

22 parts on this diagram · 1 diagram in section
